Description

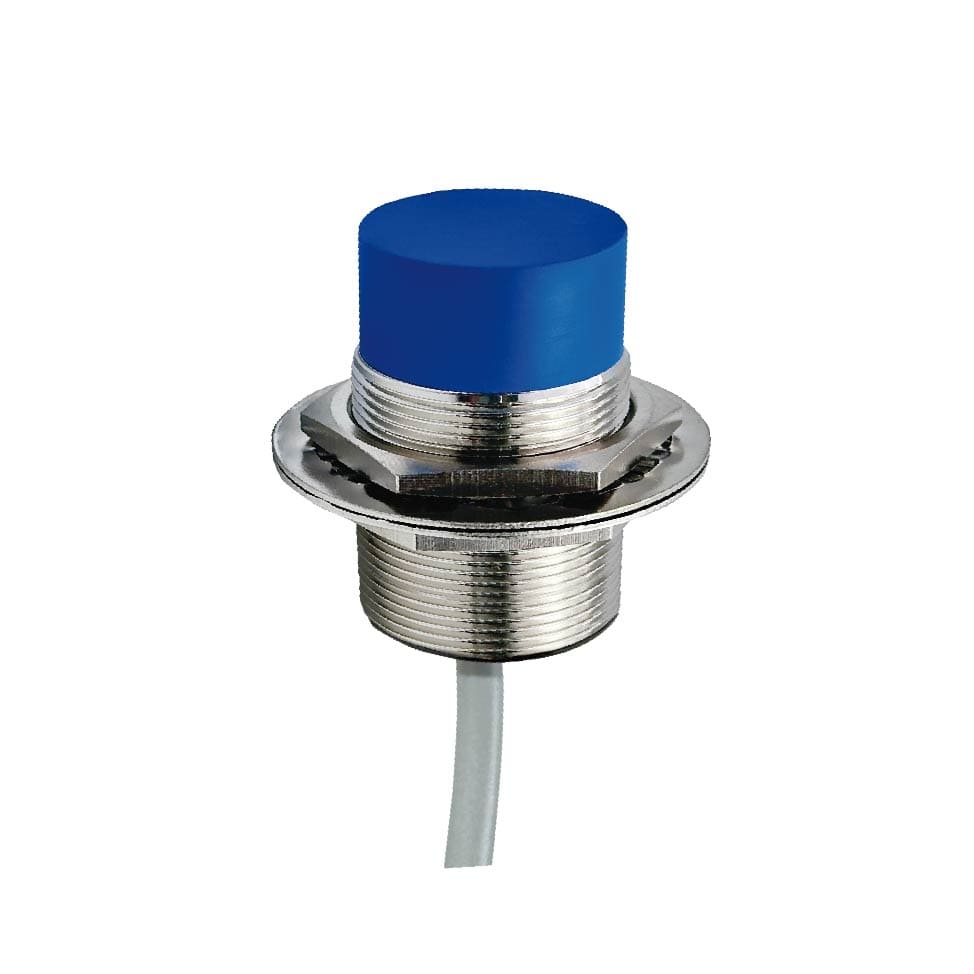

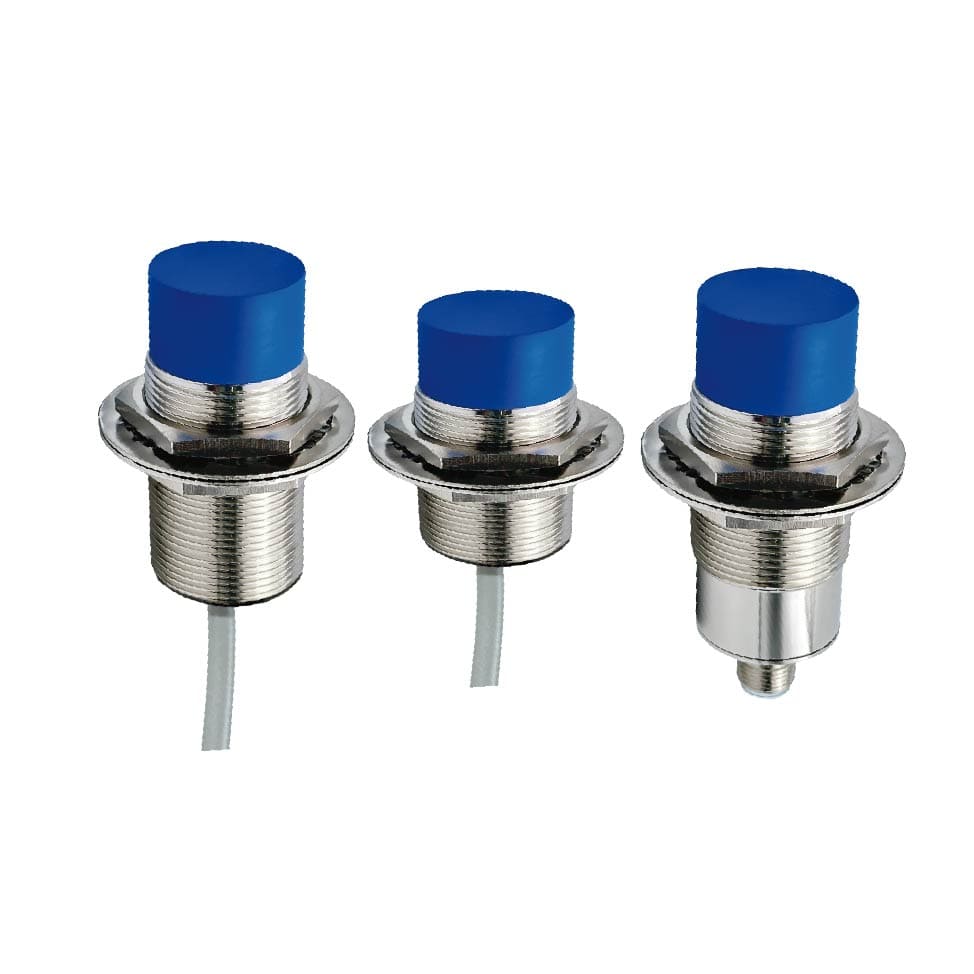

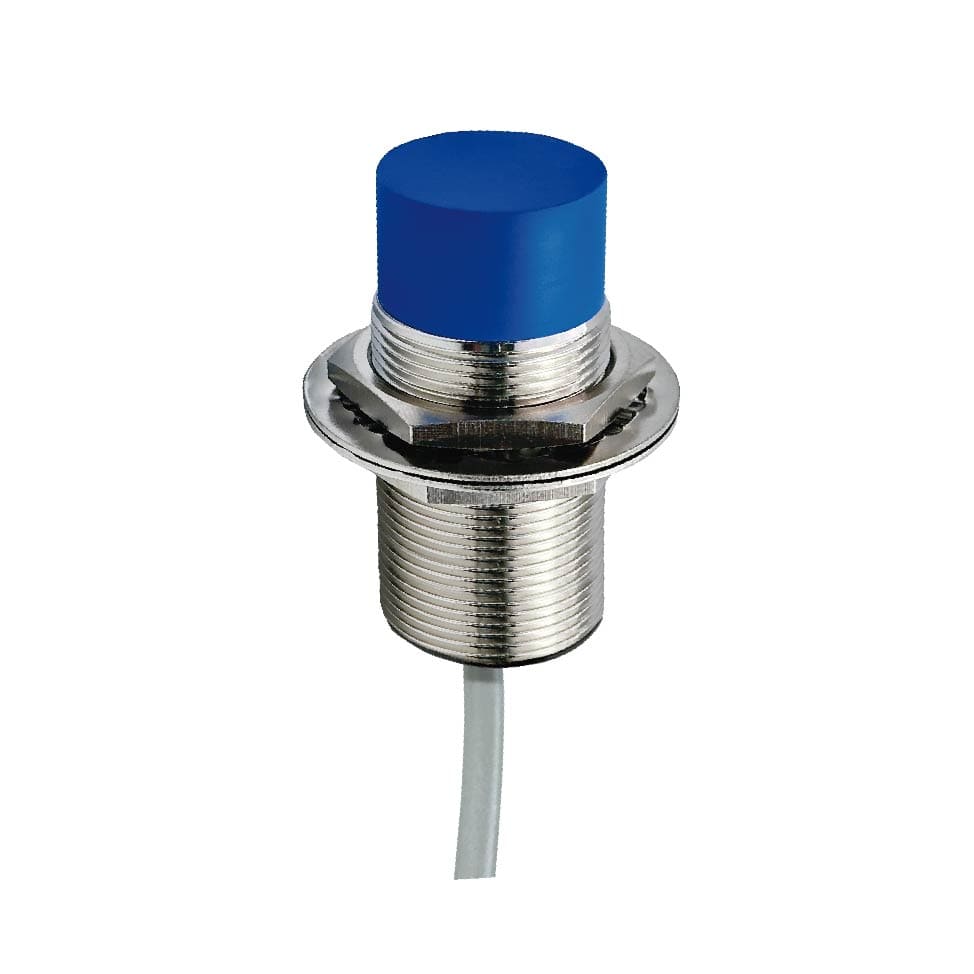

Elevate your industrial applications with Bedook Inductive Proximity Sensor M30 AC/DC 2 Wire.
Engineered for adaptability and precision, this compact sensor brings reliability and efficiency to the forefront of automation and control systems.
Inductive Switch Product Features:
This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.
- Versatile Power Compatibility: Adapts seamlessly between 20 to 250V AC/DC, ensuring functionality across a broad voltage range.
- Exceptional Repeatability: With less than 1.0% deviation, it guarantees consistent performance for dependable system accuracy.
- Robust Design: Brass, nickel-plated housing paired with PBT sensing face material provides IP67 grade protection.
- Signal Clarity: Embedded indication LED and switch output (NO/NC) for clear, immediate system feedback.
- Ultra-long sensing distance: This product offers a variety of ultra-long sensing distances, including 10/16mm and 15/25mm, capable of handling a wide range of demanding application conditions.
- Wide Operational Range: Efficiently operates in temperatures from -25 to 70℃, suitable for extreme environments.
Inductive Switch Technical Parameters:
| Appearance |  |
 |
 |
||||
| Model | NO | BB-M3010A-C14P2 | BB-M3016A-C14P2 | BB-M3010A-C14P2-S | BB-M3016A-C14P2-S | BB-M3010A-C14S12 | BB-M3016A-C14S12 |
| NC | BB-M3010A-C24P2 | BB-M3016A-C24P2 | BB-M3010A-C24P2-S | BB-M3016A-C24P2-S | BB-M3010A-C24S12 | BB-M3016A-C24S12 | |
| NO | BB-M3010U-C15P2 | BB-M3016U-C15P2 | BB-M3010U-C15P2-S | BB-M3016U-C15P2-S | BB-M3010U-C15S12 | BB-M3016U-C15S12 | |
| NC | BB-M3010U-C25P2 | BB-M3016U-C25P2 | BB-M3010U-C25P2-S | BB-M3016U-C25P2-S | BB-M3010U-C25S12 | BB-M3016U-C25S12 | |
| Exterior Structure | M30*1.5mm | M30*1.5mm | M30*1.5mm | M30*1.5mm | M30*1.5mm | M30*1.5mm | |
| Sensing Distance | 10mm(Flush) | 16mm(Flush) | 10mm(Flush) | 16mm(Flush) | 10mm(Flush) | 16mm(Flush) | |
| Switching Frequency | 25Hz/25Hz AC; 40Hz DC | ||||||
| Operating voltage | 20…250V AC/20…250V AC/DC | ||||||
| Voltage drop | ≤8V AC/≤10V AC,8V DC | ||||||
| Load current | Max.load:400mA;min. Load:5mA | ||||||
| Max.load:200mA;min. Load:5mA | |||||||
| Leakage current | ≤1.8mA/≤2.5mA | ||||||
| Hysteresis | ＜15%(Sr) | ||||||
| Repeatability | ＜1.0%(Sr) | ||||||
| Switch protection | Polarity Protection, Power-on Protection | ||||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||||
| Ambient temperature | -25…70℃ | ||||||
| Ingress protection | IP67 | ||||||
| Housing Material | Brass, nickel-plated | ||||||
| Face material | PBT | ||||||
| Connectors | 2m PVC Cable, 3*0.35mm² | M12 Connector | |||||
| Accessories | None | B12-4GV2/B12-4WV2 | |||||
| Appearance |  |
 |
 |
||||
| Model | NO | BN-M3015A-C14P2 | BN-M3025A-C14P2 | BN-M3015A-C14P2-S | BN-M3025A-C14P2-S | BN-M3015A-C14S12 | BN-M3025A-C14S12 |
| NC | BN-M3015A-C24P2 | BN-M3025A-C24P2 | BN-M3015A-C24P2-S | BN-M3025A-C24P2-S | BN-M3015A-C24S12 | BN-M3025A-C24S12 | |
| NO | BN-M3015U-C15P2 | BN-M3025U-C15P2 | BN-M3015U-C15P2-S | BN-M3025U-C15P2-S | BN-M3015U-C15S12 | BN-M3025U-C15S12 | |
| NC | BN-M3015U-C25P2 | BN-M3025U-C25P2 | BN-M3015U-C25P2-S | BN-M3025U-C25P2-S | BN-M3015U-C25S12 | BN-M3025U-C25S12 | |
| Exterior Structure | M30*1.5mm | M30*1.5mm | M30*1.5mm | M30*1.5mm | M30*1.5mm | M30*1.5mm | |
| Sensing Distance | 15mm(Non-flush) | 25mm (Non-flush) | 15mm(Non-flush) | 25mm (Non-flush) | 15mm(Non-flush) | 25mm (Non-flush) | |
| Switching Frequency | 25Hz/25Hz AC; 40Hz DC | ||||||
| Operating voltage | 20…250V AC/20…250V AC/DC | ||||||
| Voltage drop | ≤8V AC/≤10V AC,8V DC | ||||||
| Load current | Max.load:400mA;min. Load:5mA | ||||||
| Max.load:200mA;min. Load:5mA | |||||||
| Leakage current | ≤1.8mA/≤2.5mA | ||||||
| Hysteresis | ＜15%(Sr) | ||||||
| Repeatability | ＜1.0%(Sr) | ||||||
| Switch protection | Polarity Protection, Power-on Protection | ||||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||||
| Ambient temperature | -25…70℃ | ||||||
| Ingress protection | IP67 | ||||||
| Housing Material | Brass, nickel-plated | ||||||
| Face material | PBT | ||||||
| Connectors | 2m PVC Cable, 3*0.35mm² | M12 Connector | |||||
| Accessories | None | B12-4GV2/B12-4WV2 | |||||
Inductive Switch Size Chart:

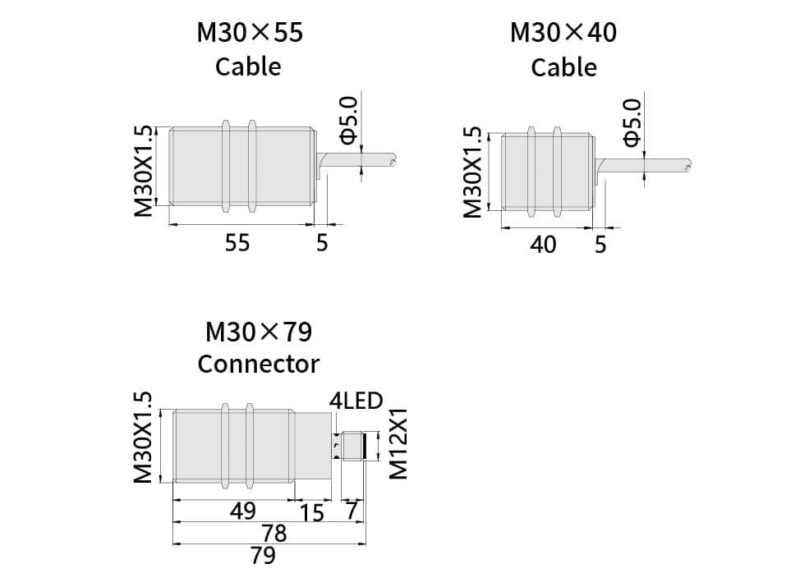

Bedook Inductive Proximity Sensor M30 ACDC 2 Wire-Size-01

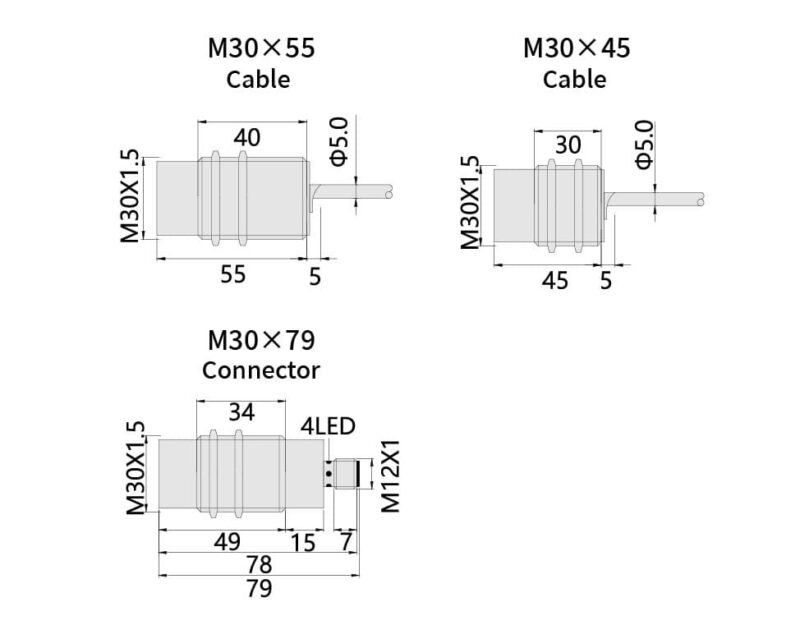

Bedook Inductive Proximity Sensor M30 ACDC 2 Wire-Size-02
Upgrade to Bedook Inductive Proximity Sensor M30 AC/DC 2 Wire for seamless AC/DC integration and unmatched precision in your control systems.
