Description

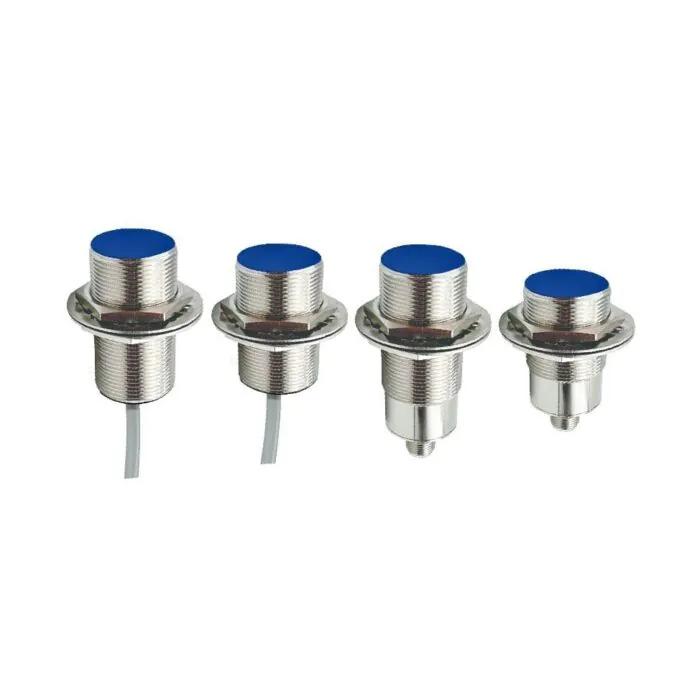

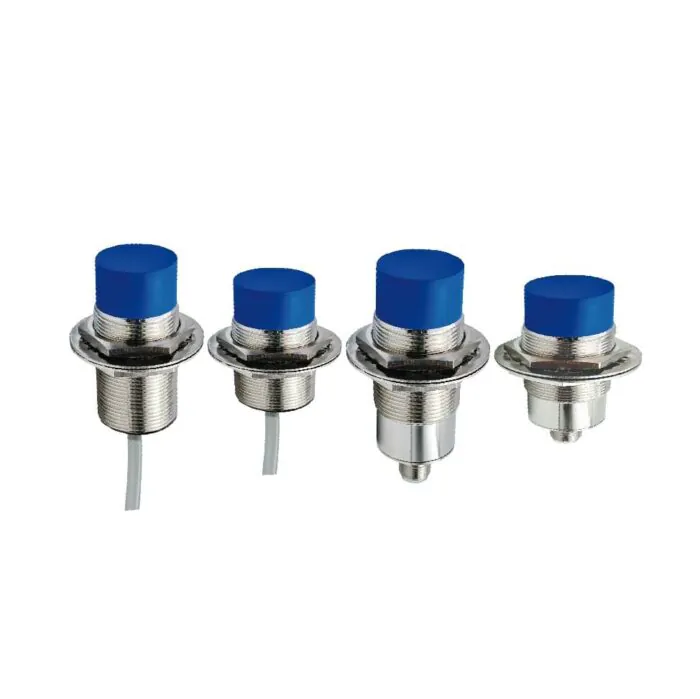

Introducing the Bedook Inductive Proximity Sensor M30 DC 4 Wire, a pinnacle of precision engineering designed to thrive in challenging industrial conditions.
Engineered with an M30 external threading, this compact sensor ensures straightforward installation and secure fixation.
Inductive Switch Product Features:
This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.
- Enhanced Anti-Interference: The DC 4-wire design guarantees exceptional performance in environments where precision can’t be compromised.
- Versatile Sensing Range: Offering 10mm/16mm for Flush and 15mm/25mm for Non-flush mounting to accommodate diverse operational needs.
- Wide Voltage Compatibility: Operational across a broad voltage spectrum (10 to 30 VDC), catering to a vast array of industrial equipment.
- Dual Switch Output (NO+NC): Provides flexibility in integration with existing systems, enhancing adaptability.
- Durability and Reliability: Encased in Brass with nickel plating and equipped with PBT sensing face, it is IP67 certified for maximum protection against ingress.
- Temperature Tolerant: Effortlessly operates within a temperature range of -25 to 70℃, ensuring reliable performance in extreme conditions.
Inductive Switch Technical Parameters:

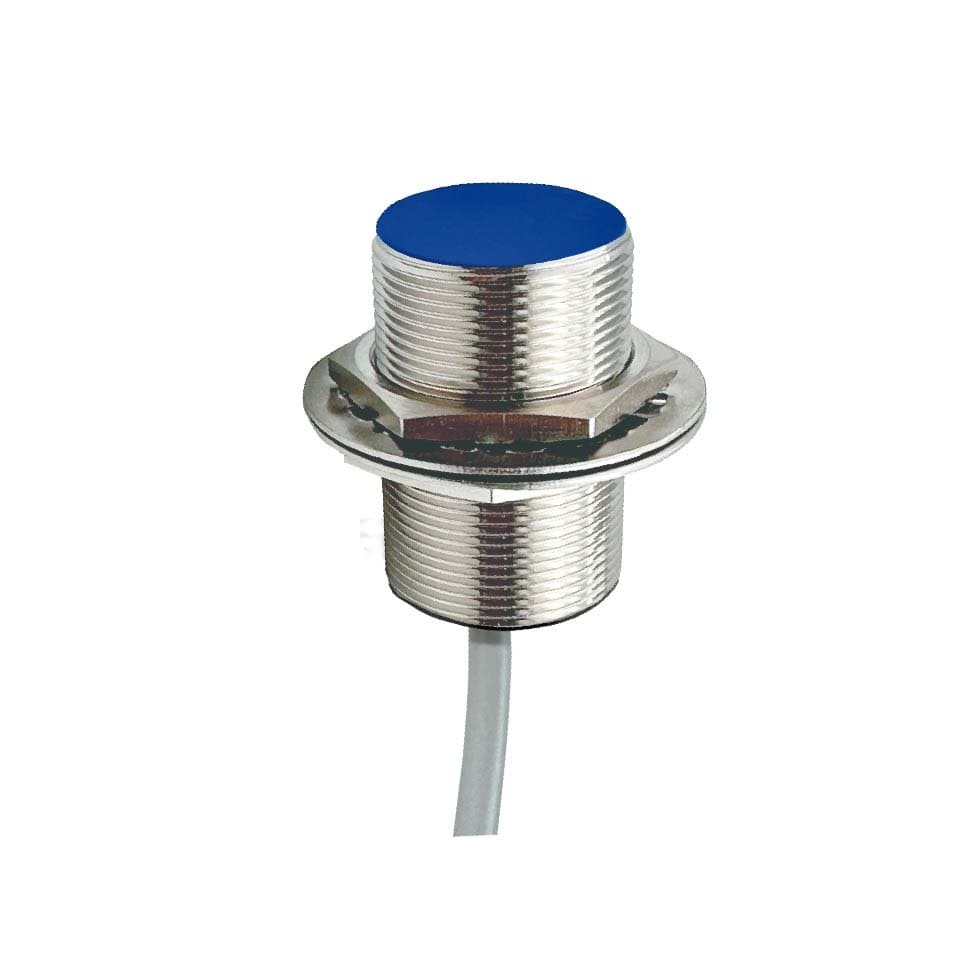

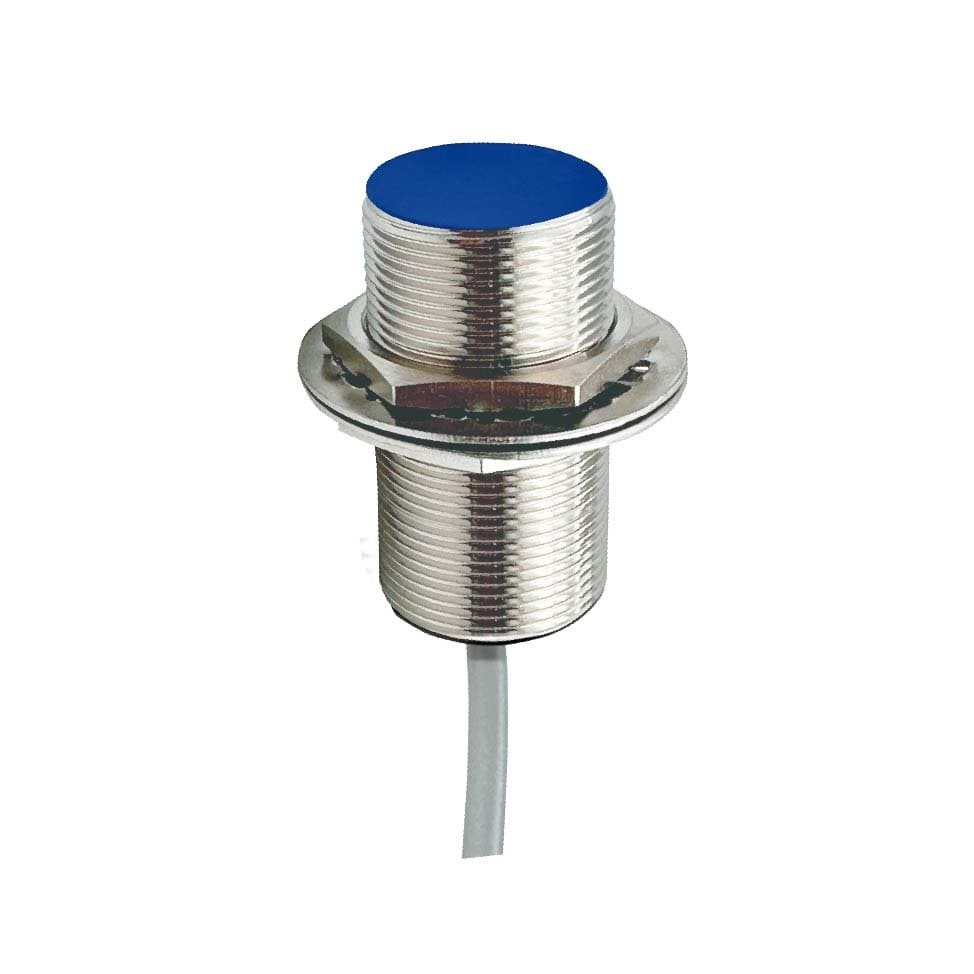

| Appearance |  |
 |
|||
| Model | NPN N.O+N.C | BB-M3010N-C31P2 | BB-M3016N-C31P2 | BB-M3010N-C31P2-S | BB-M3016N-C31P2-S |
| PNP N.O+N.C | BB-M3010P-C31P2 | BB-M3016P-C31P2 | BB-M3010P-C31P2-S | BB-M3016P-C31P2-S | |
| Exterior Structure | M30*1.5mm | M30*1.5mm | M30*1.5mm | M30*1.5mm | |
| Sensing Distance | 10mm(Flush) | 16mm(Flush) | 10mm(Flush) | 16mm(Flush) | |
| Switching Frequency | 300Hz | 200Hz | 300Hz | 200Hz | |
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | PBT | ||||
| Connectors | 2m PVC Cable, 4*0.25mm² | ||||
| Accessories | None | ||||

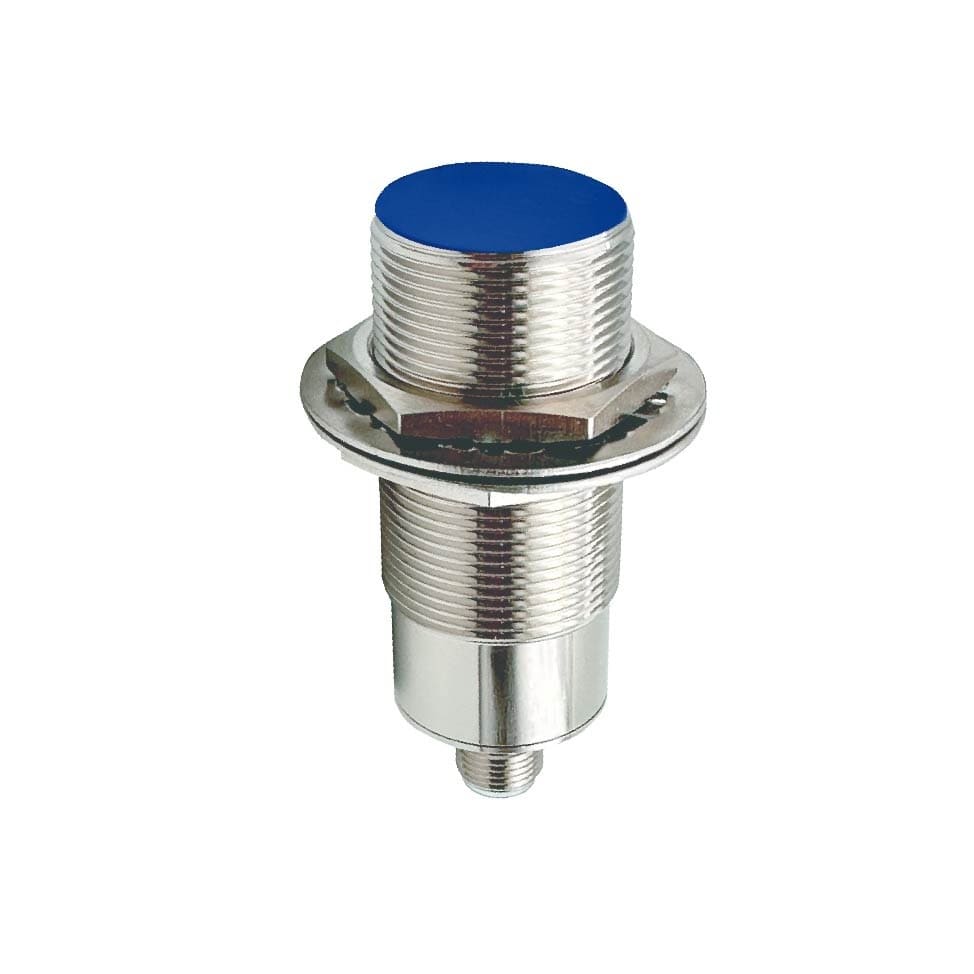

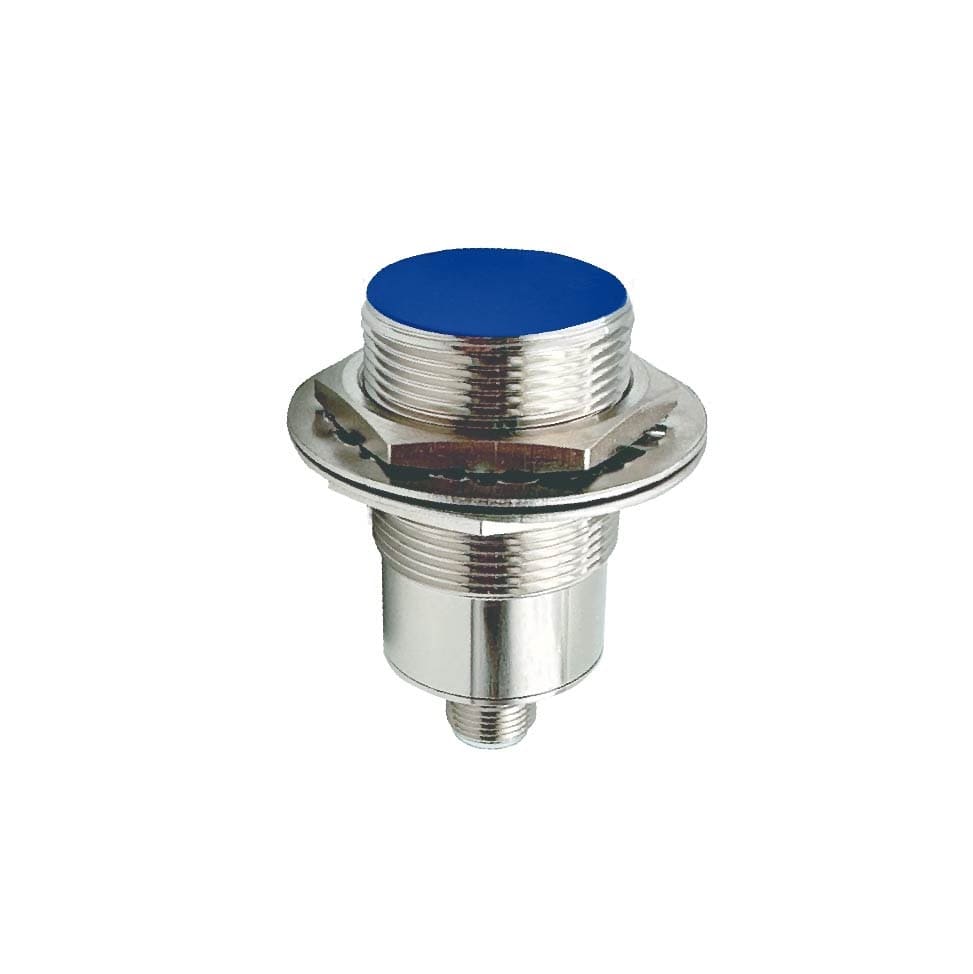

| Appearance |  |
 |
|||
| Model | NPN N.O+N.C | BB-M3010N-C31S12 | BB-M3016N-C31S12 | BB-M3010N-C31S12-S | BB-M3016N-C31S12-S |
| PNP N.O+N.C | BB-M3010P-C31S12 | BB-M3016P-C31S12 | BB-M3010P-C31S12-S | BB-M3016P-C31S12-S | |
| Exterior Structure | M30*1.5mm | M30*1.5mm | M30*1.5mm | M30*1.5mm | |
| Sensing Distance | 10mm(Flush) | 16mm(Flush) | 10mm(Flush) | 16mm(Flush) | |
| Switching Frequency | 300Hz | 200Hz | 300Hz | 200Hz | |
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | PBT | ||||
| Connectors | M12 Connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||

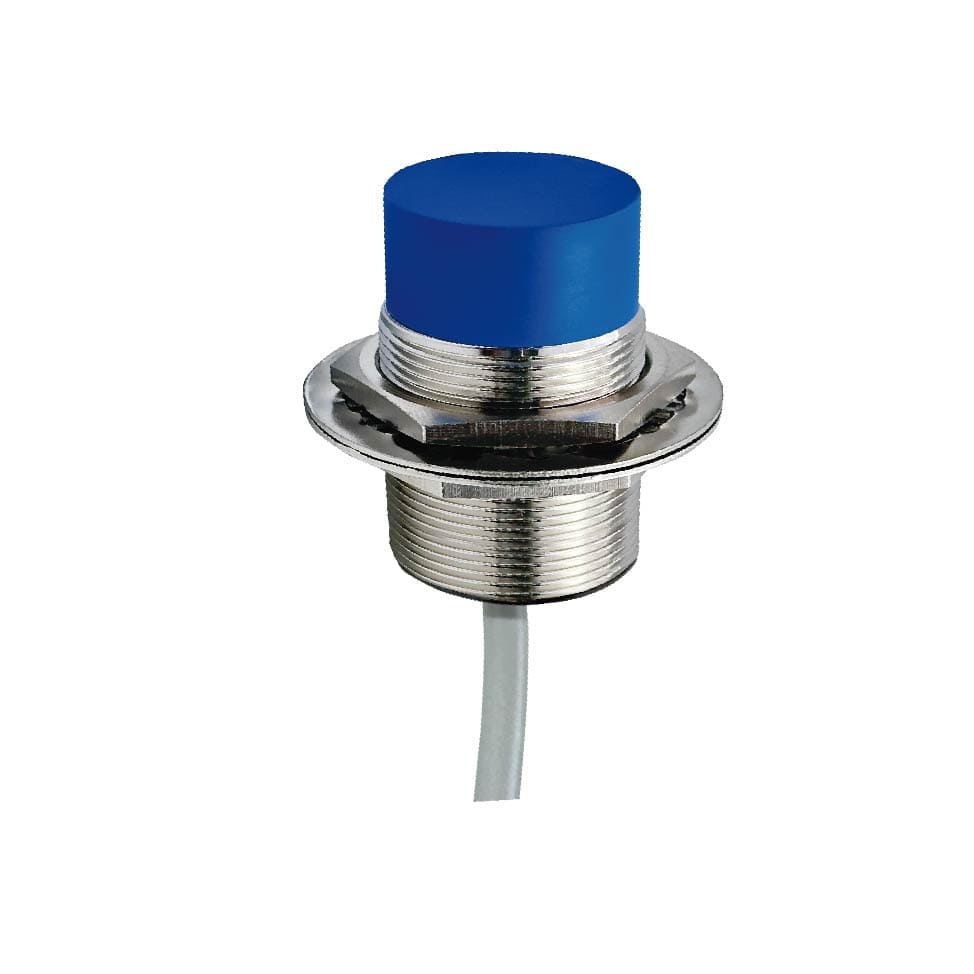

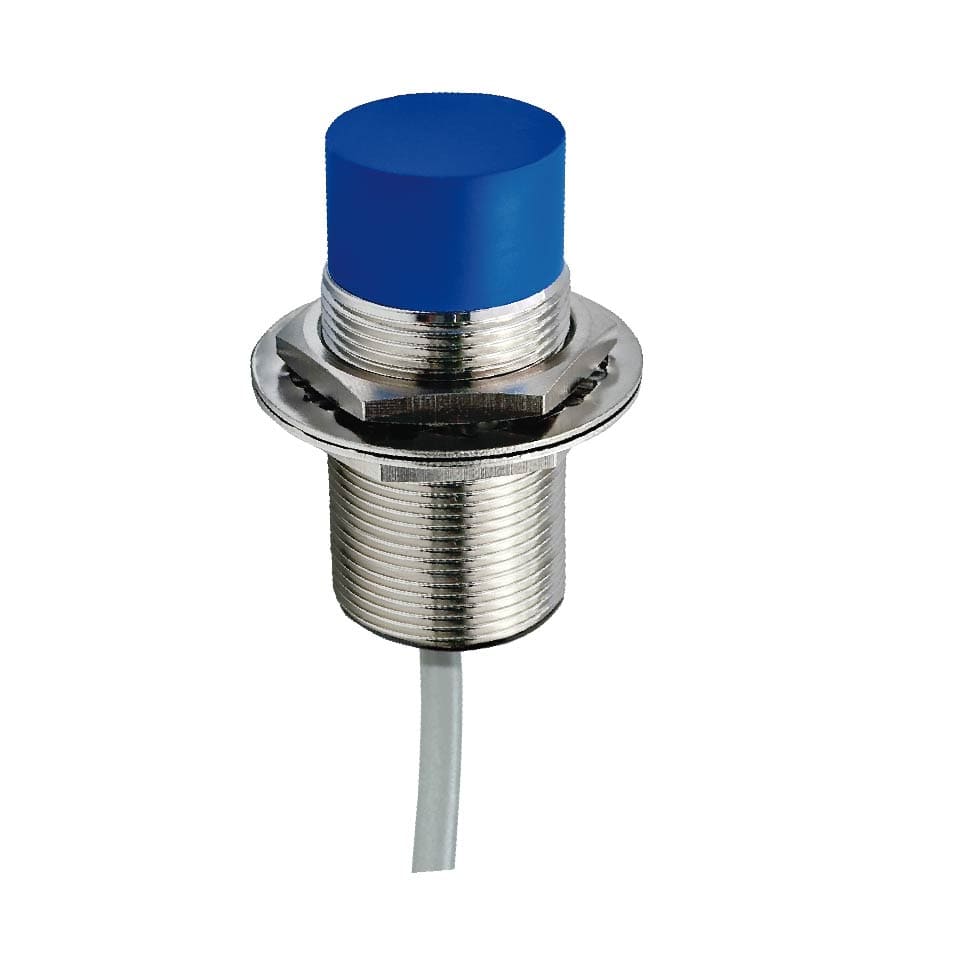

| Appearance |  |
 |
|||
| Model | NPN N.O+N.C | BN-M3015N-C31P2 | BN-M3025N-C31P2 | BN-M3015N-C31P2-S | BN-M3025N-C31P2-S |
| PNP N.O+N.C | BN-M3015P-C31P2 | BN-M3025P-C31P2 | BN-M3015P-C31P2-S | BN-M3025P-C31P2-S | |
| Exterior Structure | M30*1.5mm | M30*1.5mm | M30*1.5mm | M30*1.5mm | |
| Sensing Distance | 15mm(Non-flush) | 25mm (Non-flush) | 15mm(Non-flush) | 25mm (Non-flush) | |
| Switching Frequency | 300Hz | 150Hz | 300Hz | 150Hz | |
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | PBT | ||||
| Connectors | 2m PVC Cable, 4*0.25mm² | ||||
| Accessories | None | ||||

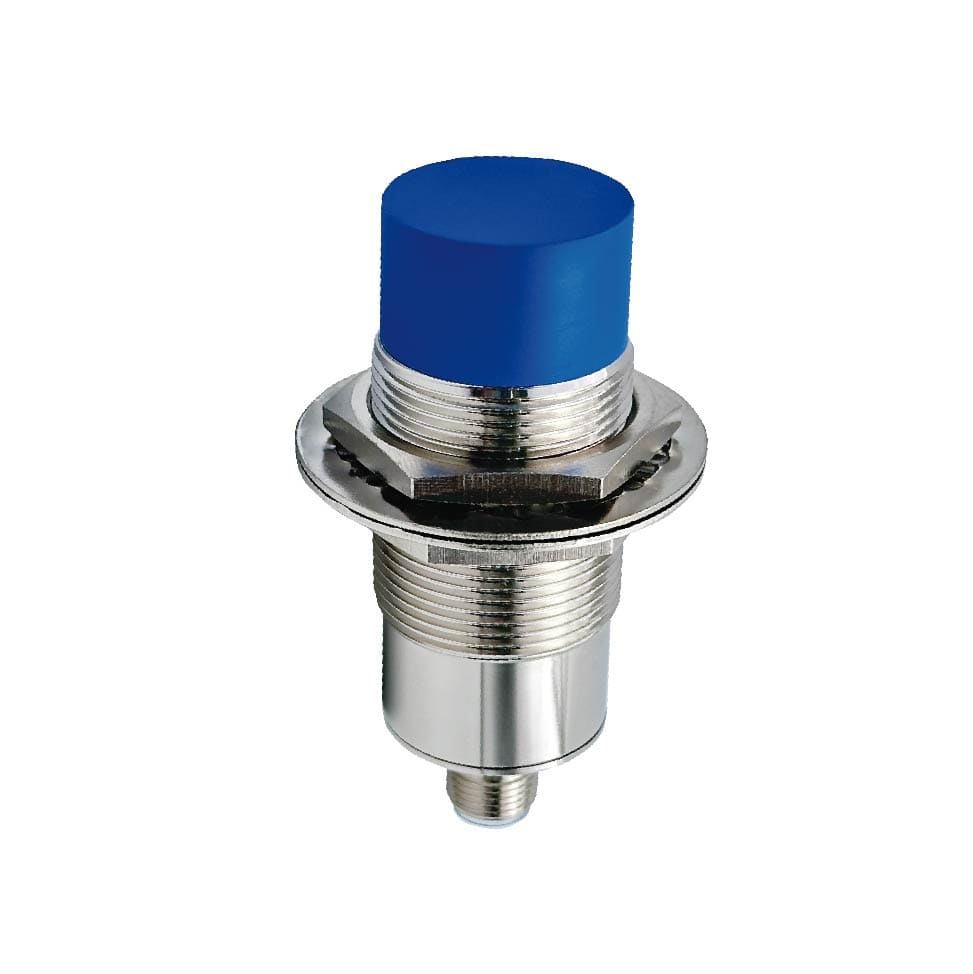

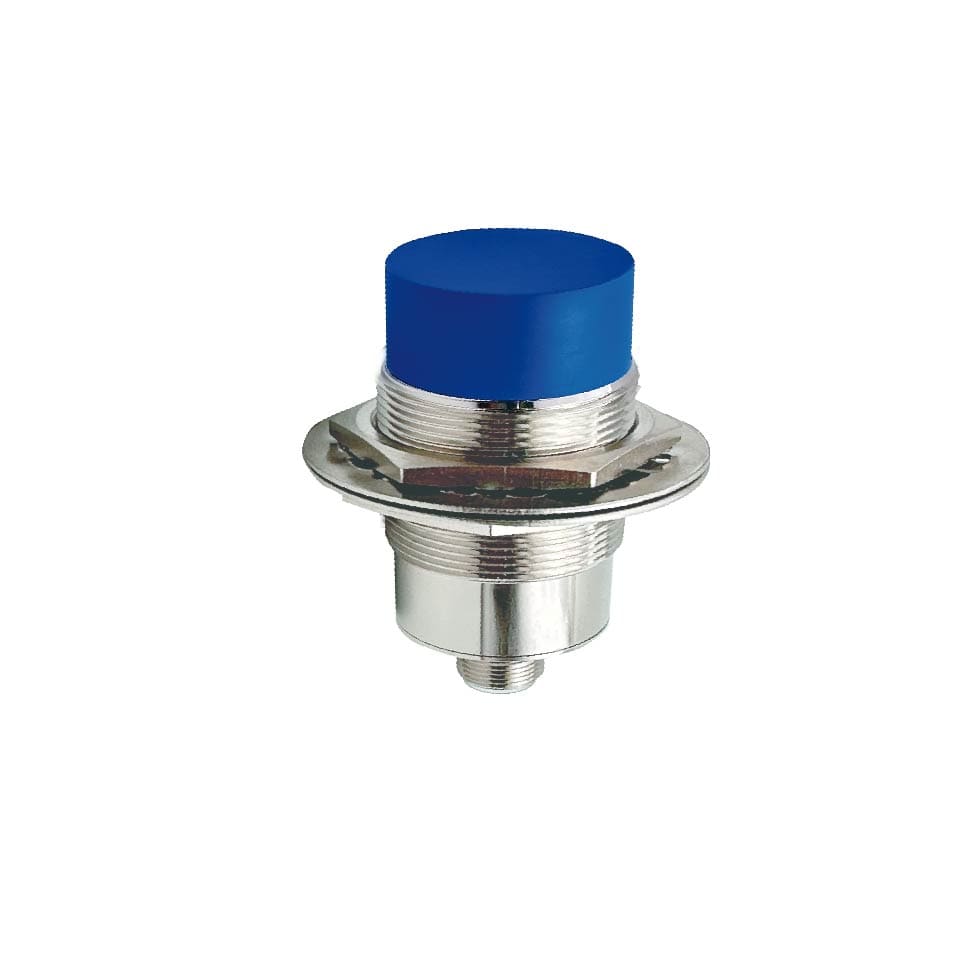

| Appearance |  |
 |
|||
| Model | NPN N.O+N.C | BN-M3015N-C31S12 | BN-M3025N-C31S12 | BN-M3015N-C31S12-S | BN-M3025N-C31S12-S |
| PNP N.O+N.C | BN-M3015P-C31S12 | BN-M3025P-C31S12 | BN-M3015P-C31S12-S | BN-M3025P-C31S12-S | |
| Exterior Structure | M30*1.5mm | M30*1.5mm | M30*1.5mm | M30*1.5mm | |
| Sensing Distance | 15mm(Non-flush) | 25mm (Non-flush) | 15mm(Non-flush) | 25mm (Non-flush) | |
| Switching Frequency | 300Hz | 150Hz | 300Hz | 150Hz | |
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | PBT | ||||
| Connectors | M12 Connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||
Inductive Switch Size Chart:

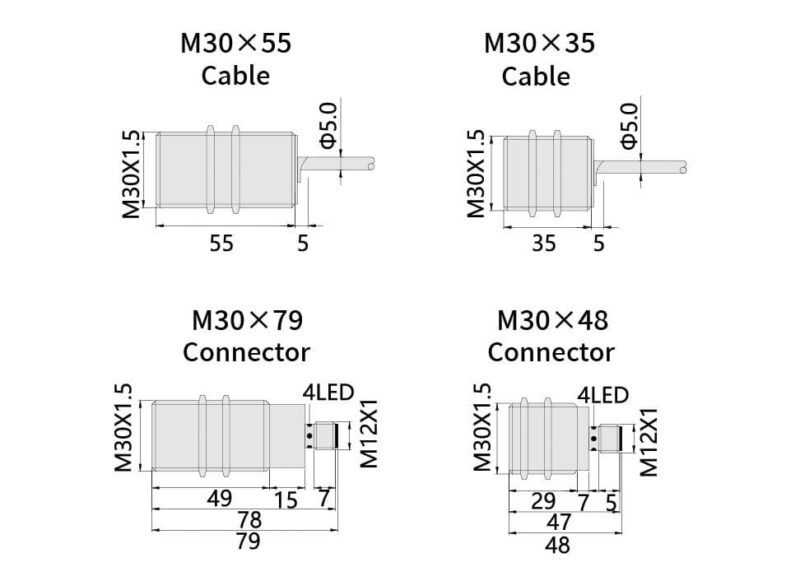

Bedook Inductive Proximity Sensor M30 DC 4 Wire-Size-01

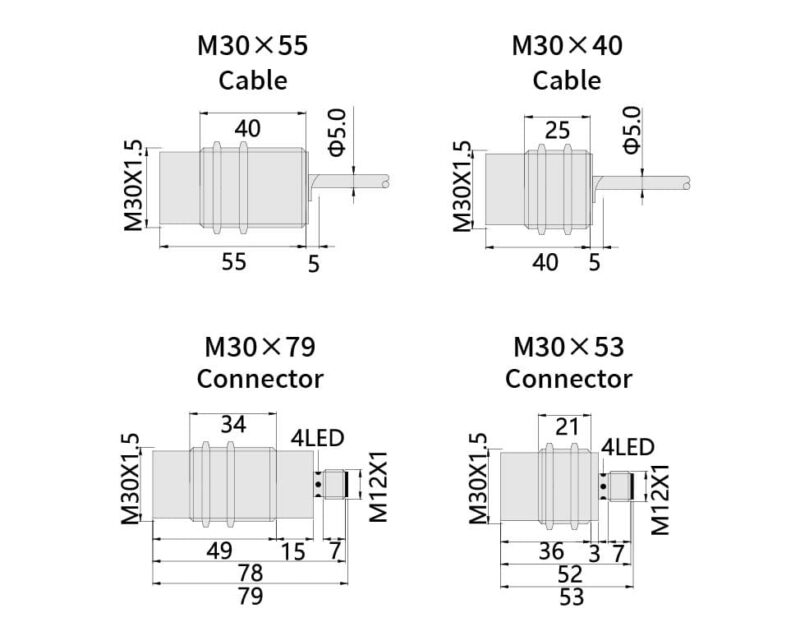

Bedook Inductive Proximity Sensor M30 DC 4 Wire-Size-02
