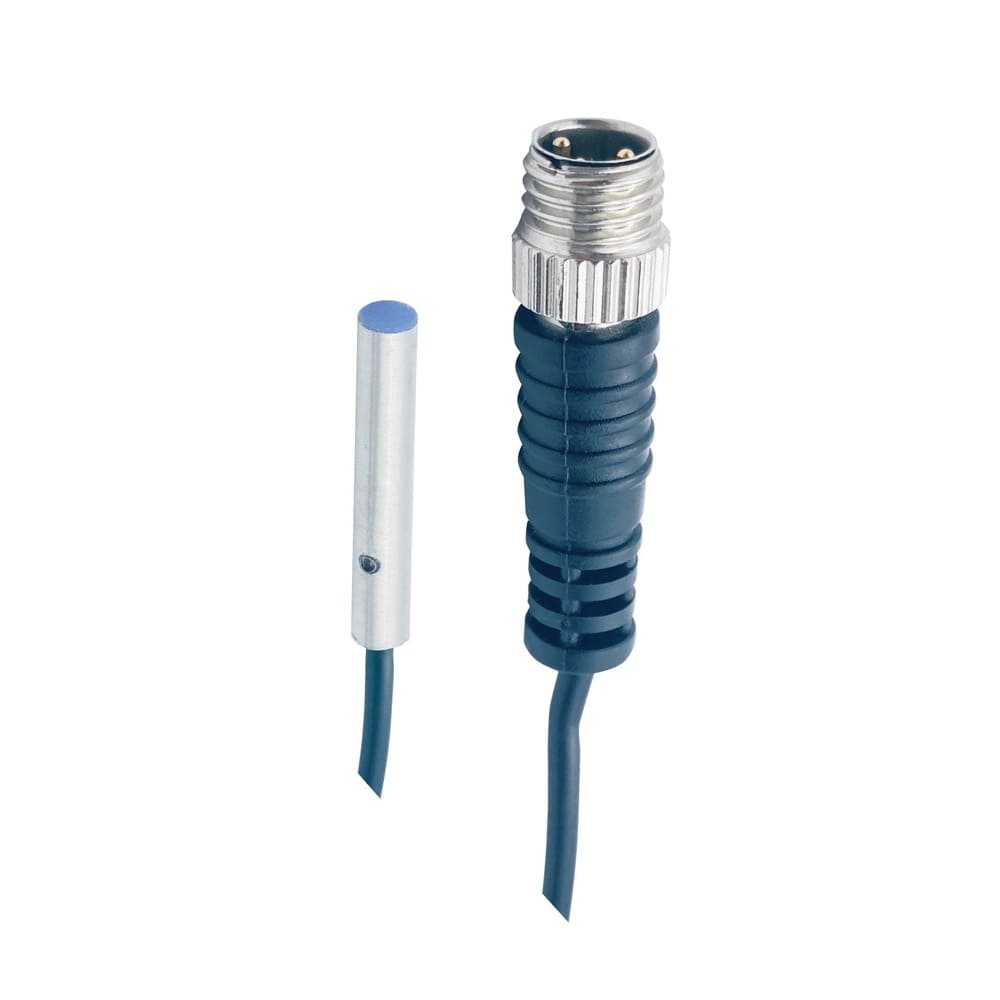

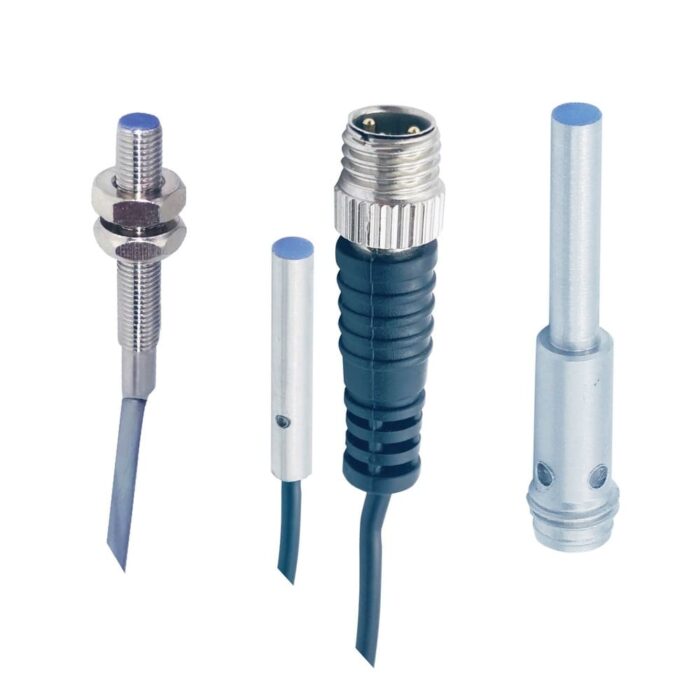

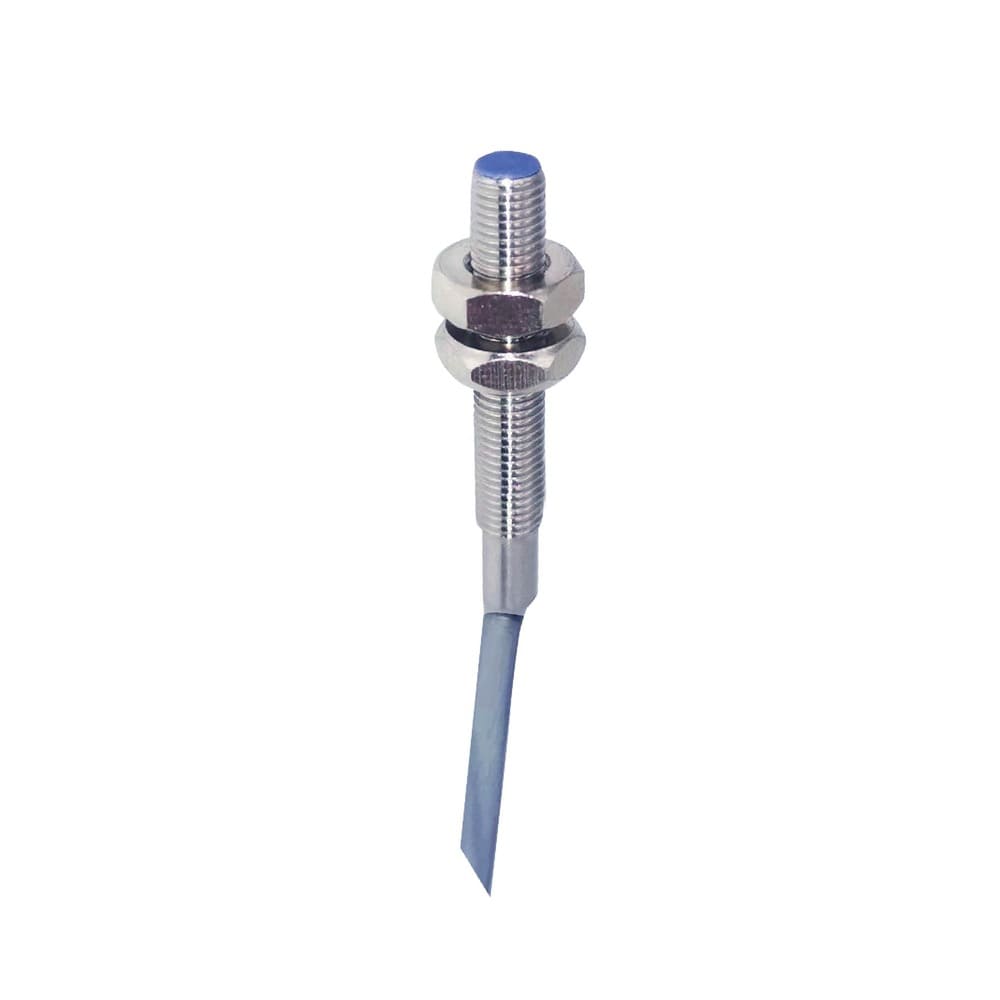

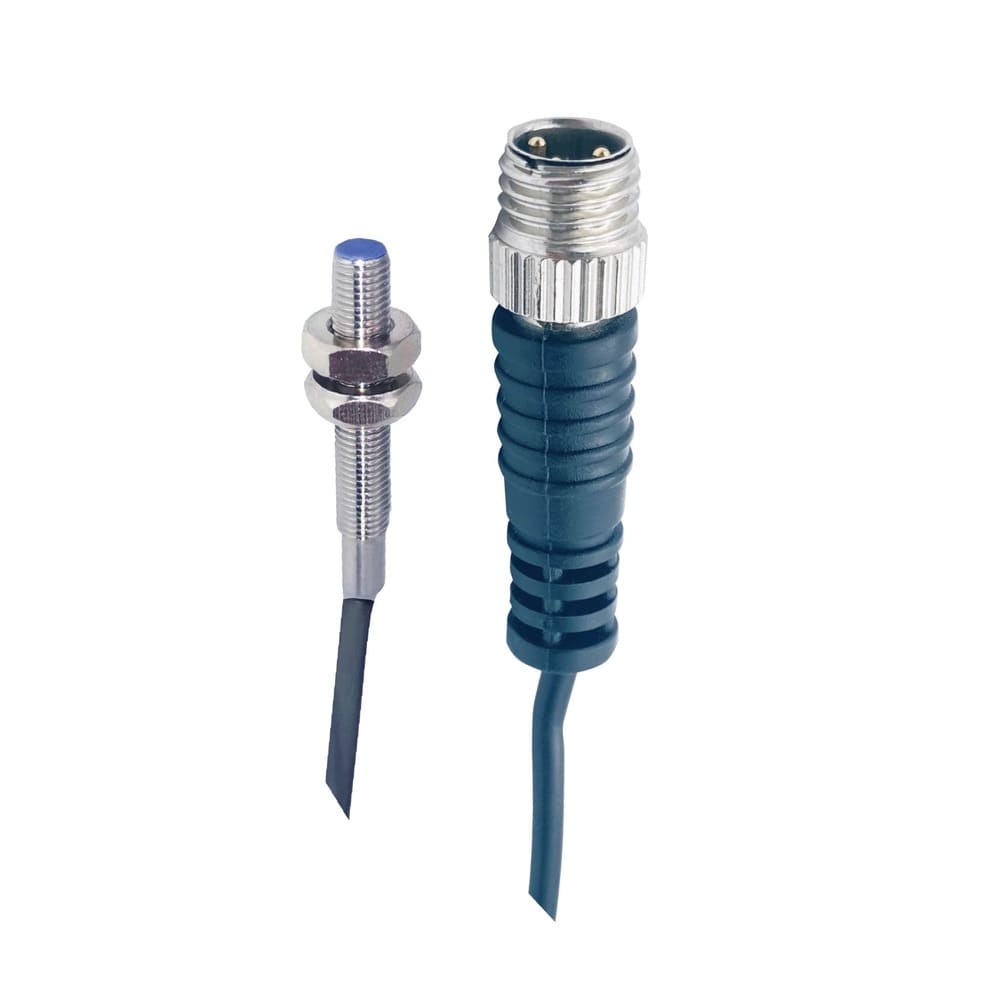

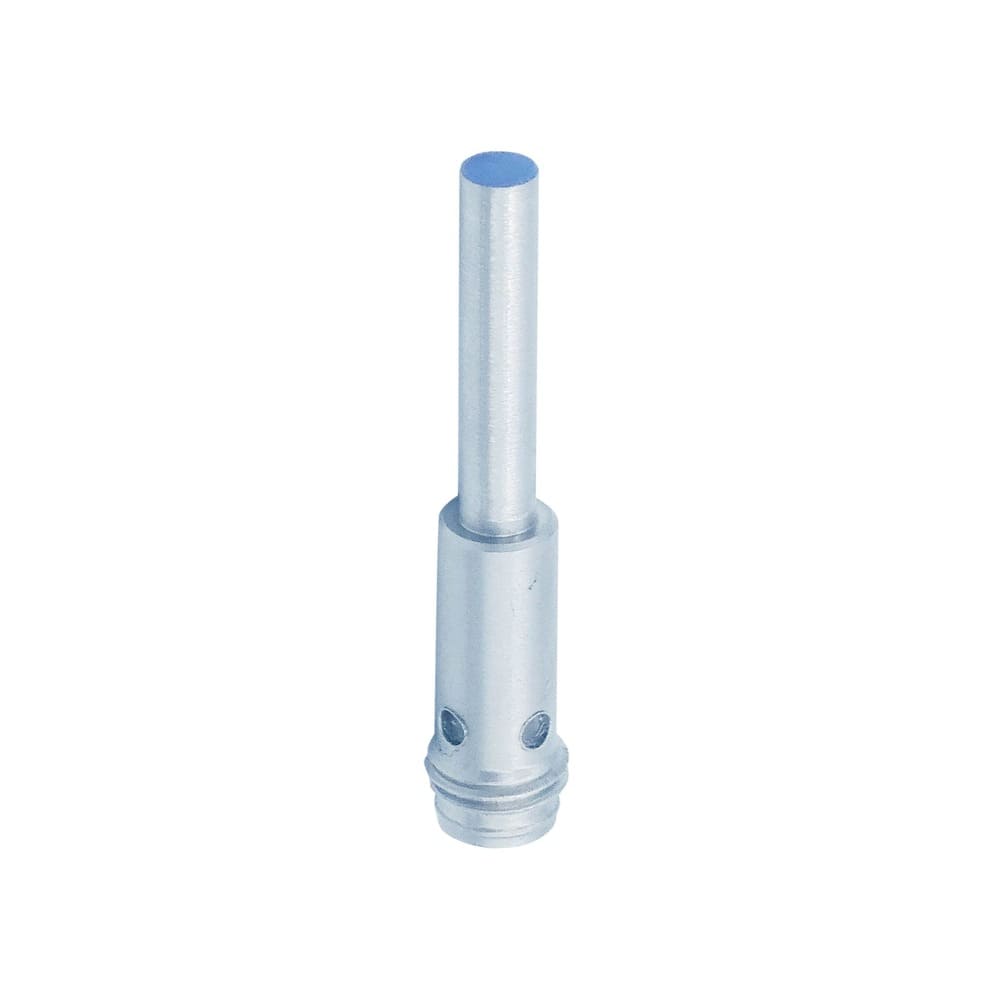

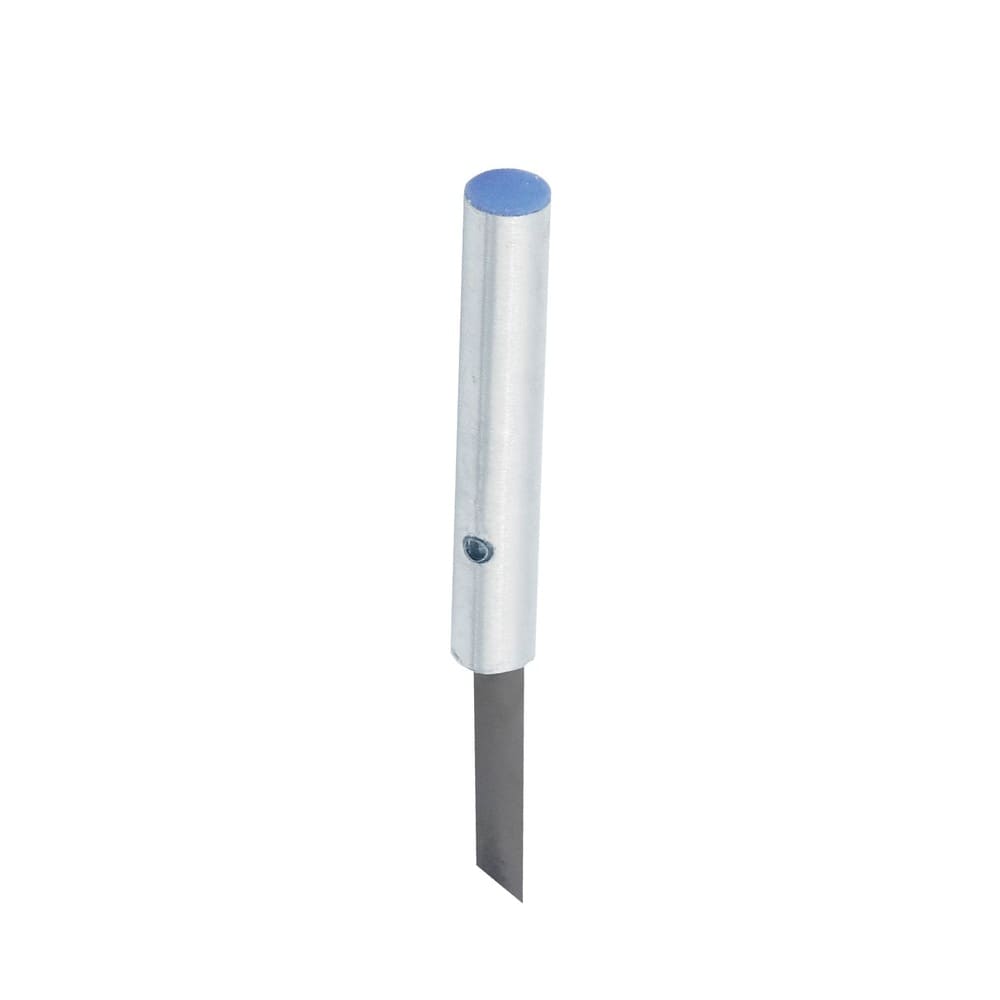

Bedook Inductive Proximity Sensor M4 DC 3 Wire

Bedook Inductive Proximity Sensor M4 DC 3 Wire is a high-performance sensor designed for precise detection of metallic objects in industrial environments. It operates on a DC voltage and features a 3-wire connection, ensuring seamless integration into various automation systems.

Product Features:

Bedook Inductive Proximity Sensor M4 DC 3 Wire is engineered to address the specific challenges faced by professionals in the field of automation and control systems.

• High Switching Frequency: A switching frequency of 2000Hz allows for rapid response times, making it ideal for applications that require quick action based on sensor input.
• Wide Voltage Range: The sensor’s 10 to 30VDC voltage compatibility ensures versatility in power supply options, reducing the need for additional power adapters or converters.
• Indication LED: The inclusion of an Indication LED provides visual confirmation of sensor status, aiding in troubleshooting and system monitoring.
• Switch Output: The switch output feature allows for direct control of machinery or processes, simplifying the integration of the sensor into existing control systems.
• IP67 Rating: The sensor’s IP67 rating guarantees protection against dust and water ingress, making it suitable for harsh industrial conditions.
• Material Durability: Constructed with Stainless Steel and POM, the sensor is resistant to corrosion and wear, ensuring a long service life even in demanding applications.
• Customization Options: Offering NPN/PNP and NO/NC configurations, as well as custom bulk orders, Bedook caters to a wide range of customer requirements, from standard applications to specialized needs.

Technical Parameters:

Appearance
Model	NPN NO	BB-M40.6N-V11P2	BB-M40.6N-V11Z8	BB-M40.8N-V11P2	BB-M41.2N-V11P2	BB-M40.8N-V11Z8	BB-M41.2N-V11Z8	BB-H40.8N-V11S8	BB-H41.2N-V11S8
	NPN NC	BB-M40.6N-V21P2	BB-M40.6N-V21Z8	BB-M40.8N-V21P2	BB-M41.2N-V21P2	BB-M40.8N-V21Z8	BB-M41.2N-V21Z8	BB-H40.8N-V21S8	BB-H41.2N-V21S8
	PNP NO	BB-M40.6P-V11P2	BB-M40.6P-V11Z8	BB-M40.8P-V11P2	BB-M41.2P-V11P2	BB-M40.8P-V11Z8	BB-M41.2P-V11Z8	BB-H40.8P-V11S8	BB-H41.2P-V11S8
	PNP NC	BB-M40.6P-V21P2	BB-M40.6P-V21Z8	BB-M40.8P-V21P2	BB-M41.2P-V21P2	BB-M40.8P-V21Z8	BB-M41.2P-V21Z8	BB-H40.8P-V21S8	BB-H41.2P-V21S8
Appearance Structure		M4*0.5mm		φ4mm	φ4mm	φ4mm	φ4mm	φ4mm	φ4mm
Sensing Distance		0.6mm		0.8mm(Flush)	1.2mm(Flush)	0.8mm(Flush)	1.2mm(Flush)	0.8mm(Flush)	1.2mm(Flush)
Switching Frequency		2000Hz(0.6/0.8/1.2mm)
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2.0V
Load current		100mA
Leakge current		≤0.01mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜1.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Stainless Steel
Face material		POM
Connectors		2m PVC Cable, 3*0.15mm²/M8, 0.3m connector with wires	0.3m, M8 cable with connector	2m PVC Cable, 3*0.15mm²		0.3m, M8 cable with connector		M8 connector
Accessories		None	B8-3GV2/B8-3WV2	None		B8-3GV2/B8-3WV2		B8-3GV2/B8-3WV2

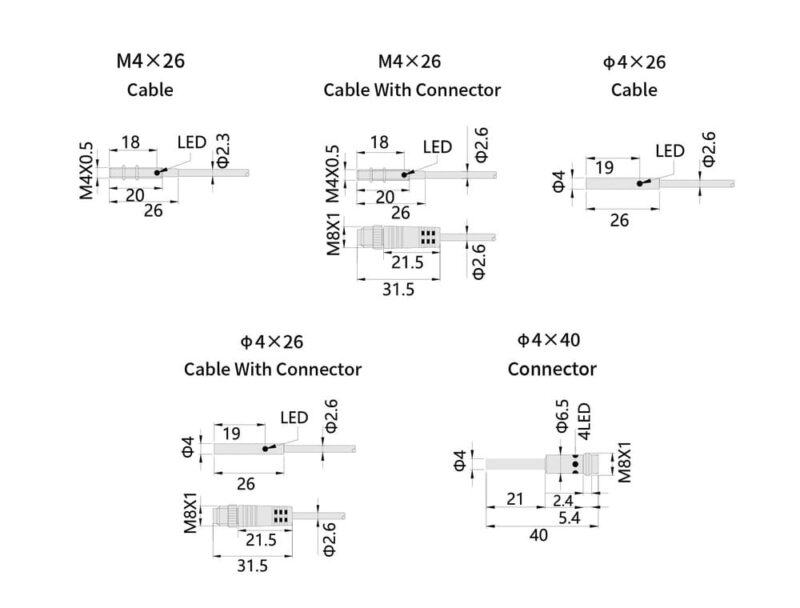

Size Chart:

Bedook Inductive Proximity Sensor M4 DC 3 Wire-Size

Bedook Inductive Proximity Sensor M4 DC 3 Wire is here to meet the exacting needs of automation pros, offering a dependable and efficient sensor solution.

If you’re looking for a sensor that’s up to the task, we’re here to help. Drop us a line and let’s chat about how we can make your automation dreams a reality. We’re excited to hear from you!
