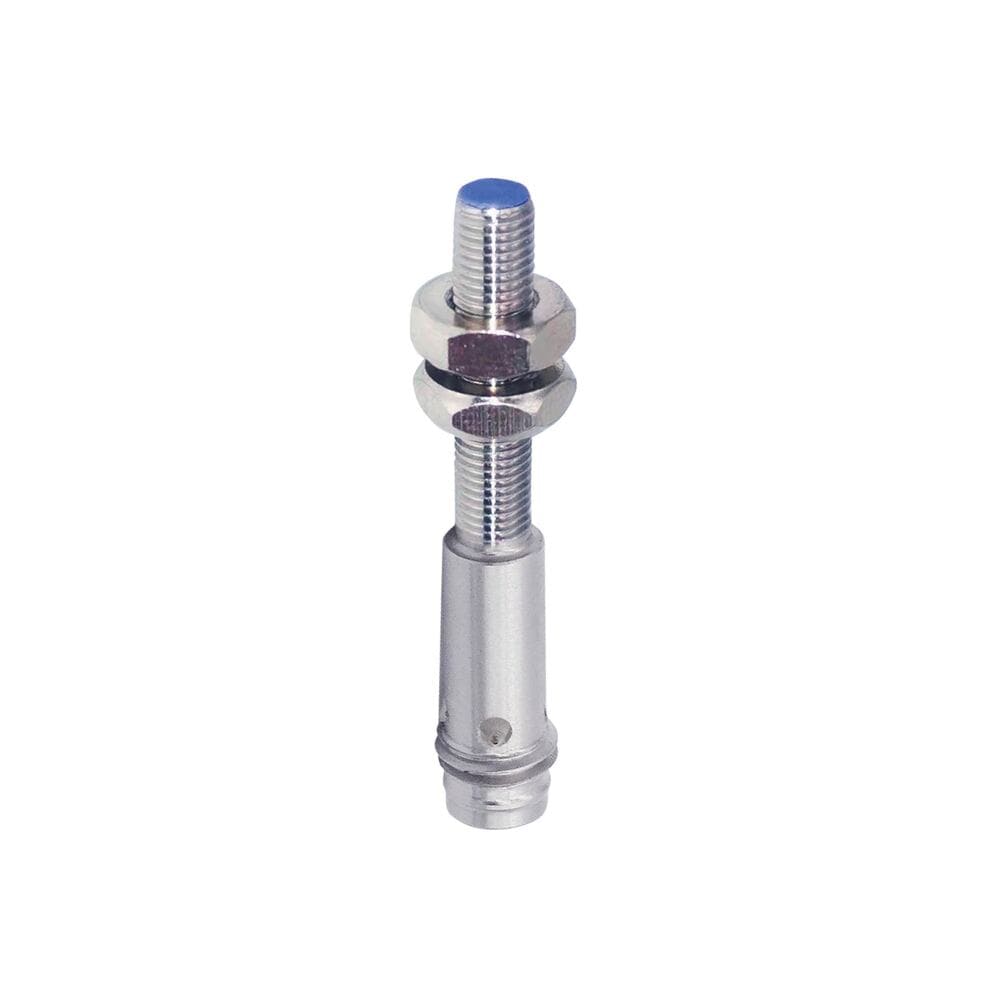

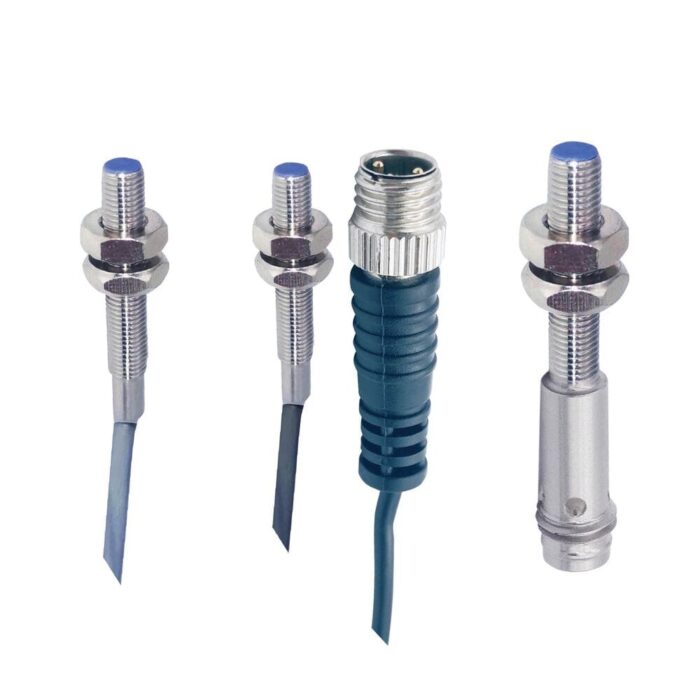

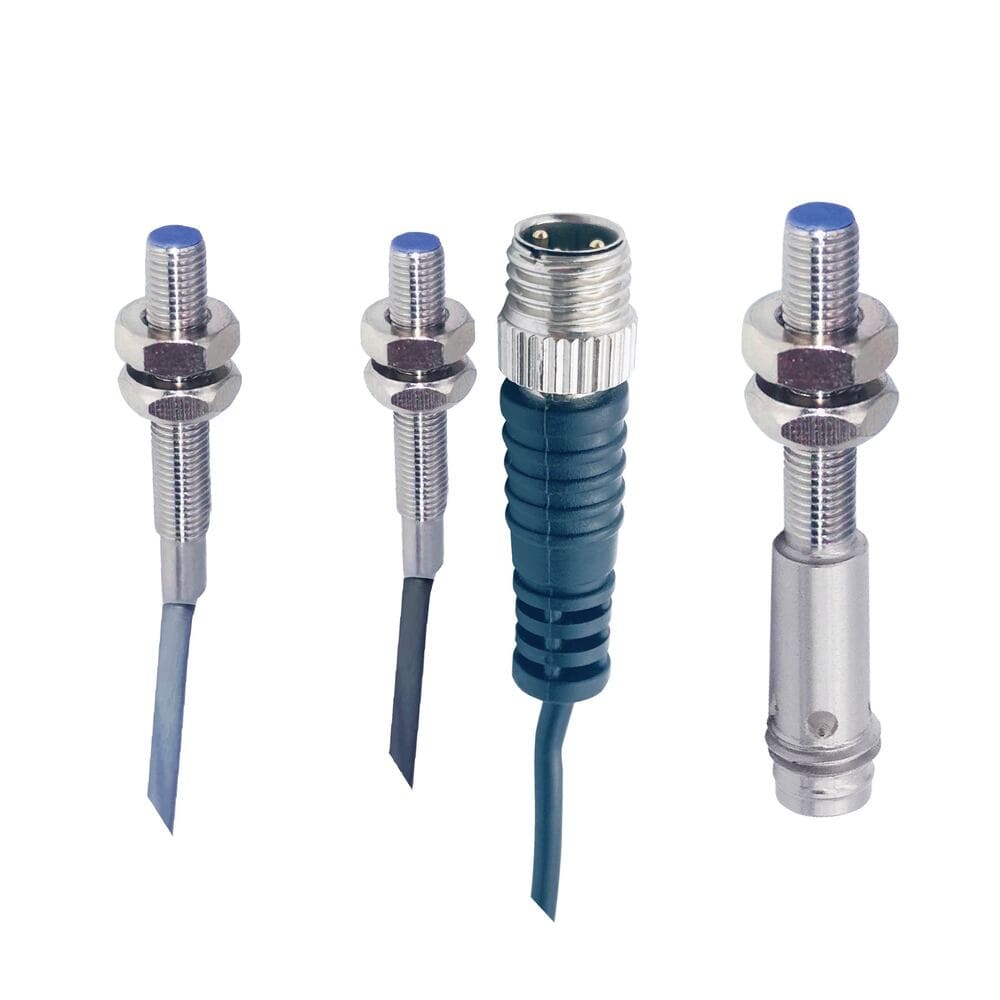

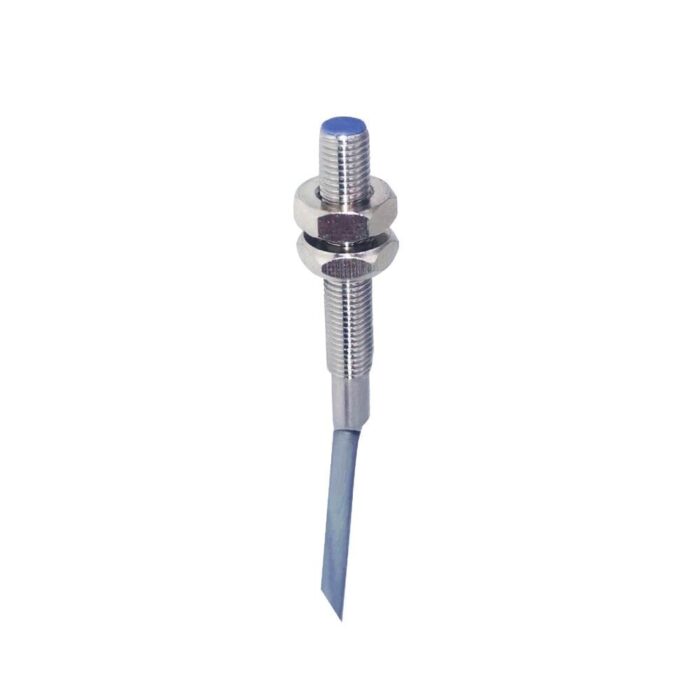

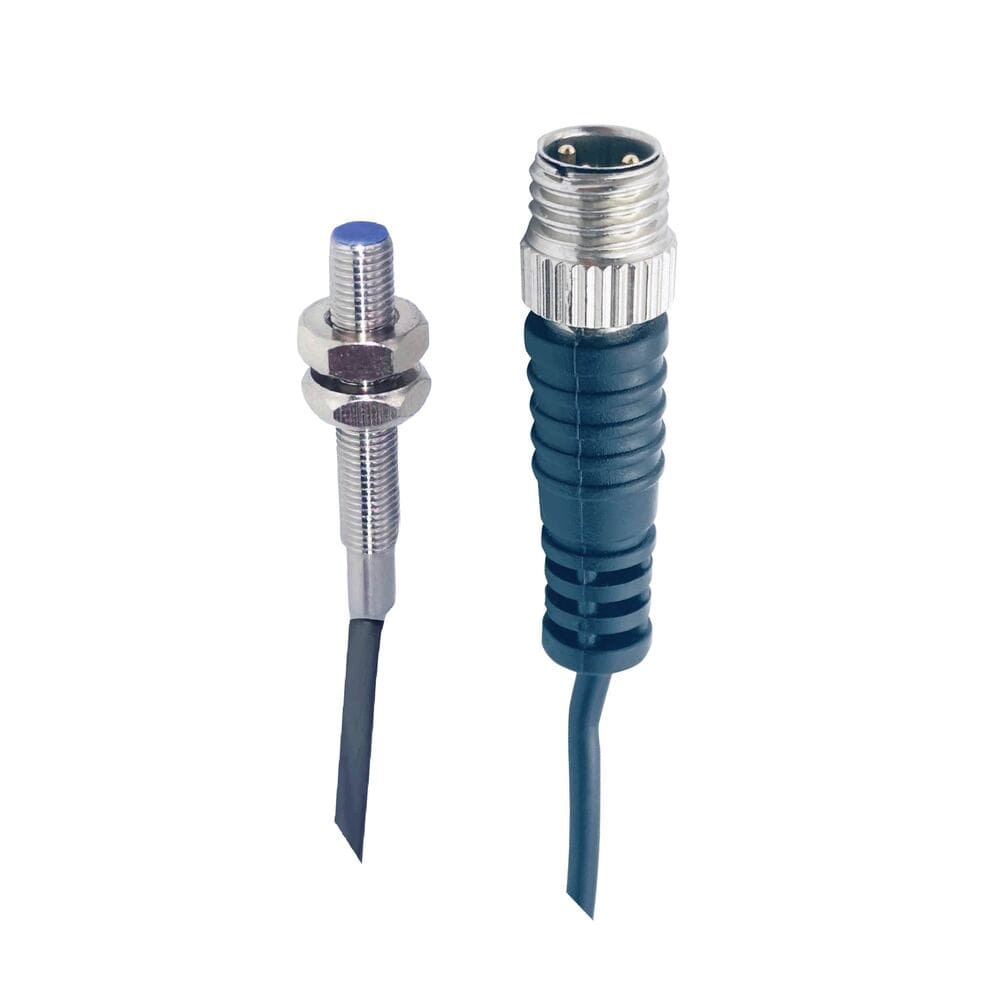

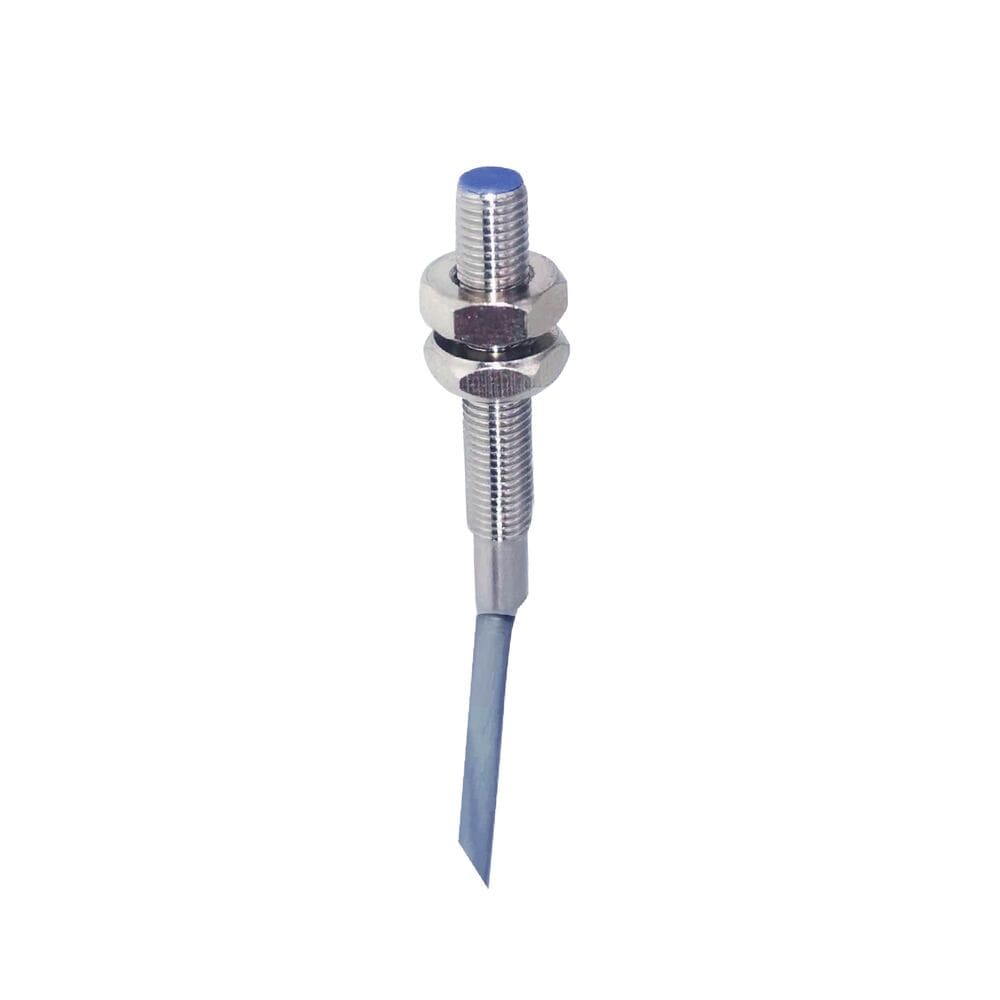

Bedook Inductive Proximity Sensor M5 DC 3 Wire

Bedook Inductive Proximity Sensor M5 DC 3 Wire, delivers precise detection and enhanced durability in demanding industrial settings. Its advanced anti-interference technology ensures unwavering accuracy, while the robust IP67 casing offers superior protection against environmental hazards, streamlining operations and reducing maintenance concerns.

Product Features:

Bedook Inductive Proximity Sensor M5 DC 3 Wire is engineered to address the specific challenges faced by professionals in the field of automation and control systems.

• Compact Design: Equipped with an M5 external thread for effortless installation, suitable for varied applications where space is at a premium.
• Strong Anti-Interference: The DC 3-wire configuration enhances the sensor’s resistance to electromagnetic disturbances, ensuring accuracy in complex environments.
• Durable Materials: Constructed with a stainless steel shell and POM sensing surface, the sensor is built for longevity and consistent performance.
• IP67 Protection Rating: High-level protection against dust and water, making it capable of operating in harsh environments.
• Exceptional Sensing Capability: Sensing distances of 0.8/1.2mm and a high switching frequency of 2000Hz are ideal for applications that require quick responses.
• Wide Voltage Range: Supports a broad voltage range from 10 to 30 VDC to accommodate varying power supply needs.
• Indicator LED and Switch Output: Features an indicator LED and switch output for convenient monitoring and easy interface integration.
• High Sensitivity and Extended Service Life: The design prioritizes sensor sensitivity and service life to ensure stability and reliability in diverse applications.

Technical Parameters:

Appearance
Model	NPN NO	BB-M50.8N-V11P2	BB-M51.2N-V11P2	BB-M50.8N-V11P2-S	BB-M51.2N-V11P2-S	BB-M50.8N-V11S8	BB-M51.2N-V11S8	BB-M50.8N-V11Z8	BB-M51.2N-V11Z8	BB-M50.8N-V11Z8-S	BB-M51.2N-V11Z8-S
	NPN NC	BB-M50.8N-V21P2	BB-M51.2N-V21P2	BB-M50.8N-V21P2-S	BB-M51.2N-V21P2-S	BB-M50.8N-V21S8	BB-M51.2N-V21S8	BB-M50.8N-V21Z8	BB-M51.2N-V21Z8	BB-M50.8N-V21Z8-S	BB-M51.2N-V21Z8-S
	PNP NO	BB-M50.8P-V11P2	BB-M51.2P-V11P2	BB-M50.8P-V11P2-S	BB-M51.2P-V11P2-S	BB-M50.8P-V11S8	BB-M51.2P-V11S8	BB-M50.8P-V11Z8	BB-M51.2P-V11Z8	BB-M50.8P-V11Z8-S	BB-M51.2P-V11Z8-S
	PNP NC	BB-M50.8P-V21P2	BB-M51.2P-V21P2	BB-M50.8P-V21P2-S	BB-M51.2P-V21P2-S	BB-M50.8P-V21S8	BB-M51.2P-V21S8	BB-M50.8P-V21Z8	BB-M51.2P-V21Z8	BB-M50.8P-V21Z8-S	BB-M51.2P-V21Z8-S
Appearance Structure		M5*0.5mm	M5*0.5mm	M5*0.5mm	M5*0.5mm	M5*0.5mm	M5*0.5mm	M5*0.5mm	M5*0.5mm	M5*0.5mm	M5*0.5mm
Sensing Distance		0.8mm(flush)	1.2mm(flush)	0.8mm(flush)	1.2mm(flush)	0.8mm(flush)	1.2mm(flush)	0.8mm(flush)	1.2mm(flush)	0.8mm(flush)	1.2mm(flush)
Switching Frequency		2000Hz(0.8/1.2mm)
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2.0V
Load current		100mA
Leakge current		≤0.01mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜1.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Stainless Steel
Face material		POM
Connectors		2m PVC Cable, 3*0.15mm²/M8, 0.3m connector with wires				M8 connector		0.3m, M8 cable with connector		0.3m, M8 cable with connector
Accessories		B8-3GV2/B8-3WV2				B8-3GV2/B8-3WV2		B8-3GV2/B8-3WV2		B8-3GV2/B8-3WV2

Size Chart:

Bedook Inductive Proximity Sensor M5 DC 3 Wire features dual sensing (0.8mm/1.2mm), a high 2000Hz Switching Frequency, and a 10-30 VDC range, ensuring rapid, precise detection and system adaptability. With an LED indicator and switch output.

It promises easy monitoring and integration, superior sensitivity, longevity, and minimal downtime for high-stakes applications.

Contact us for tailored solutions with Bedook‘s cutting-edge sensor technology.
