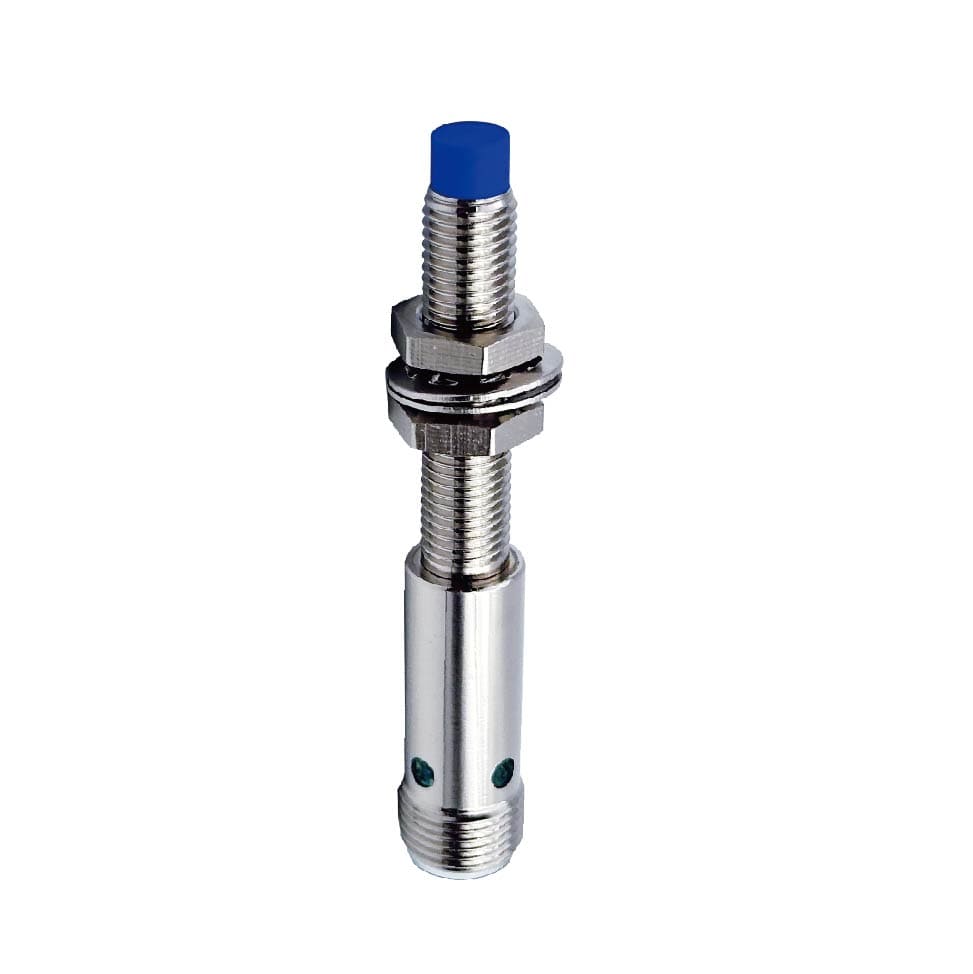

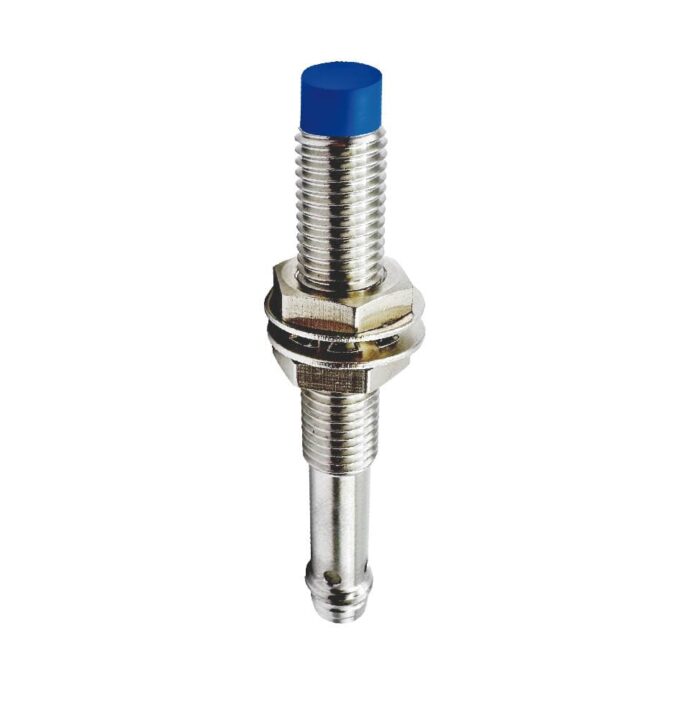

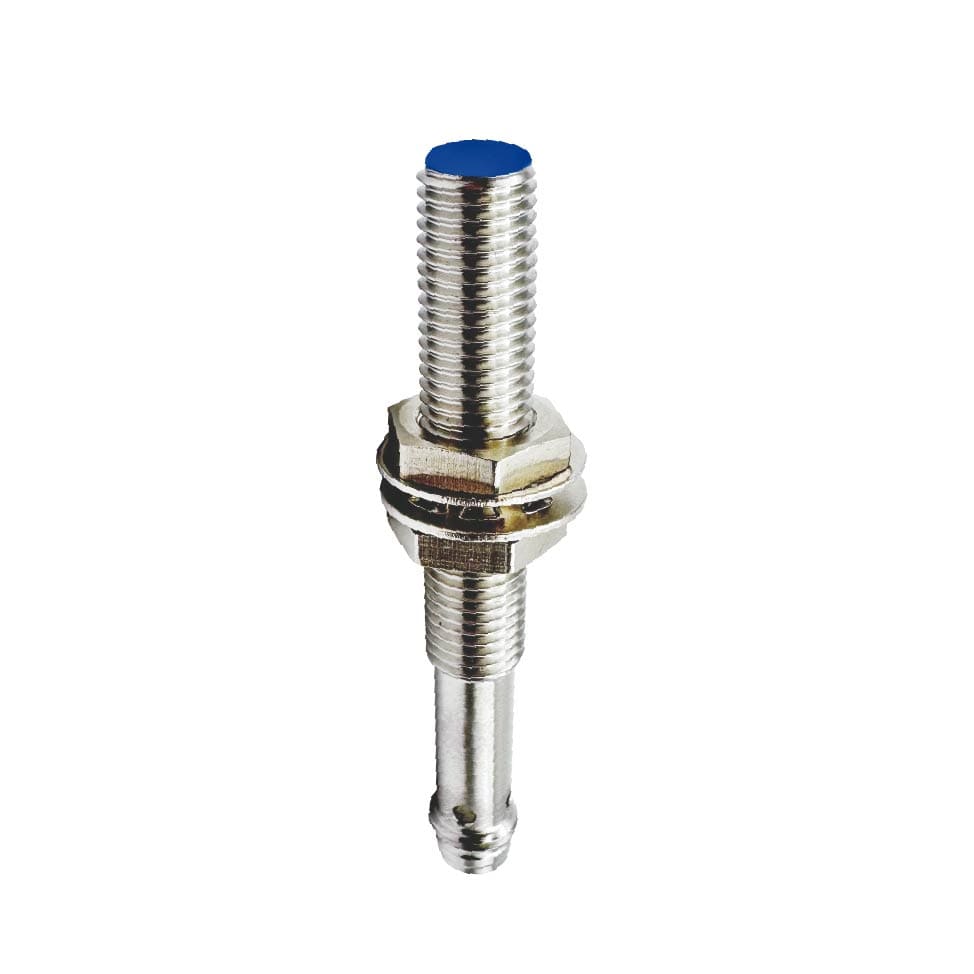

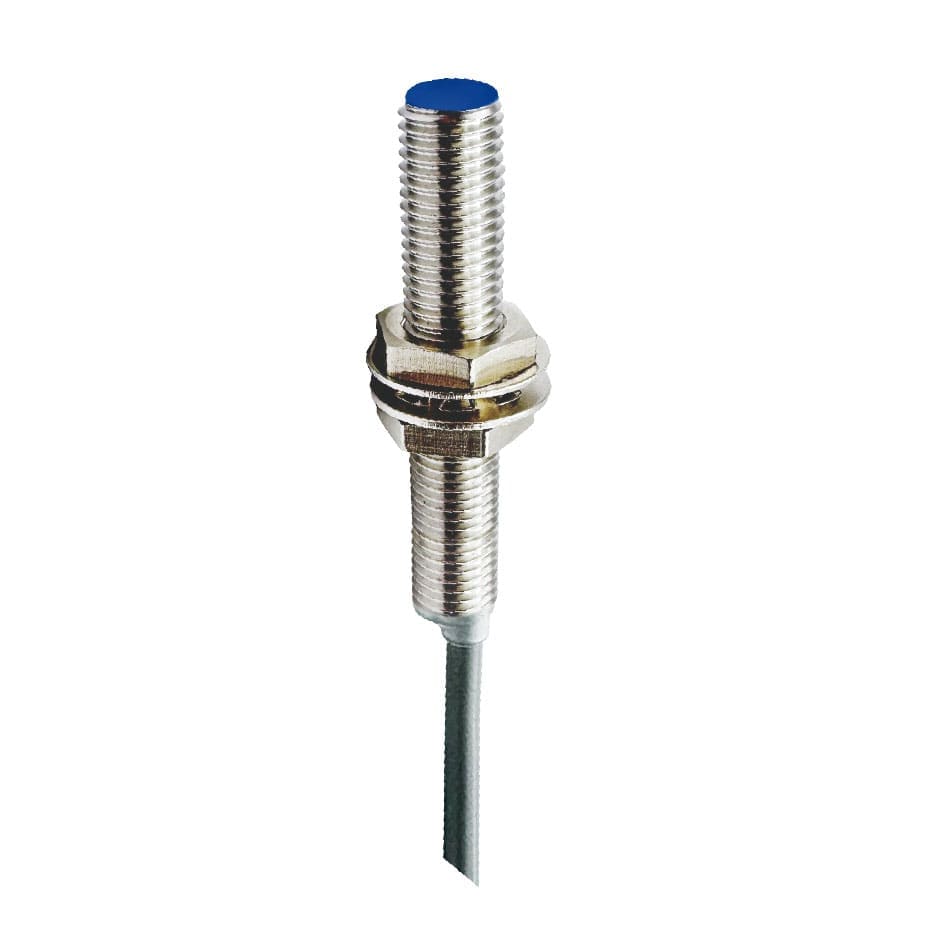

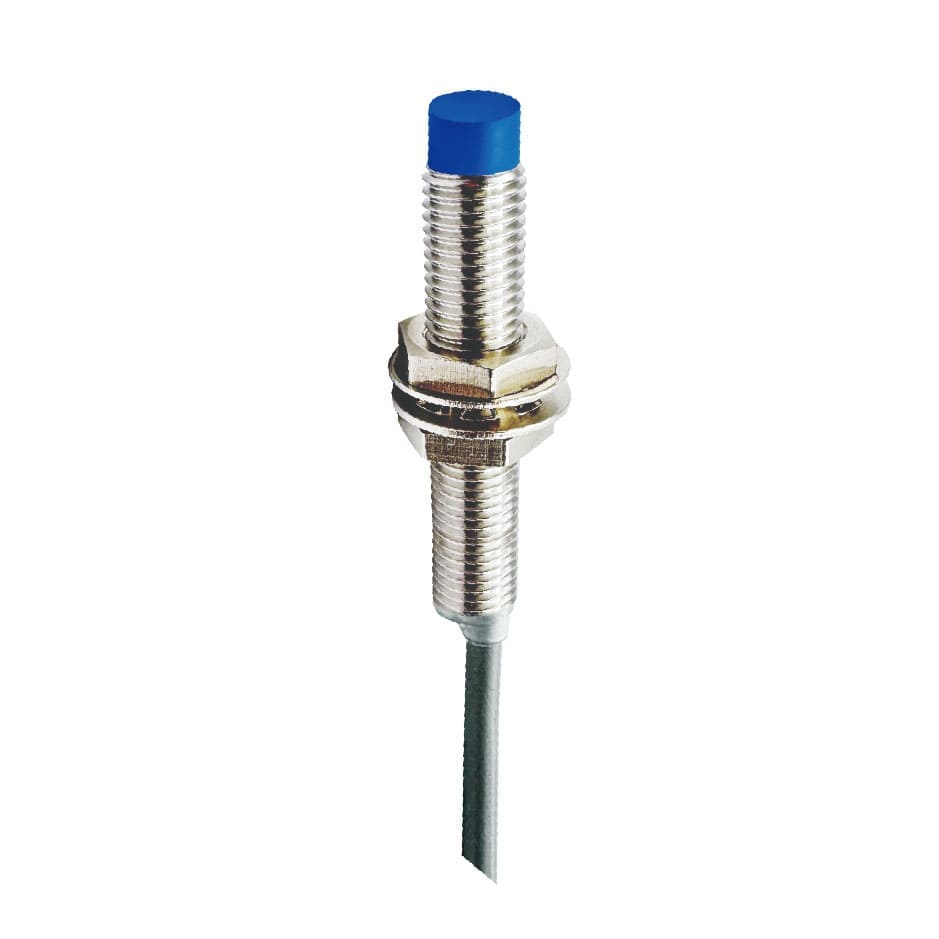

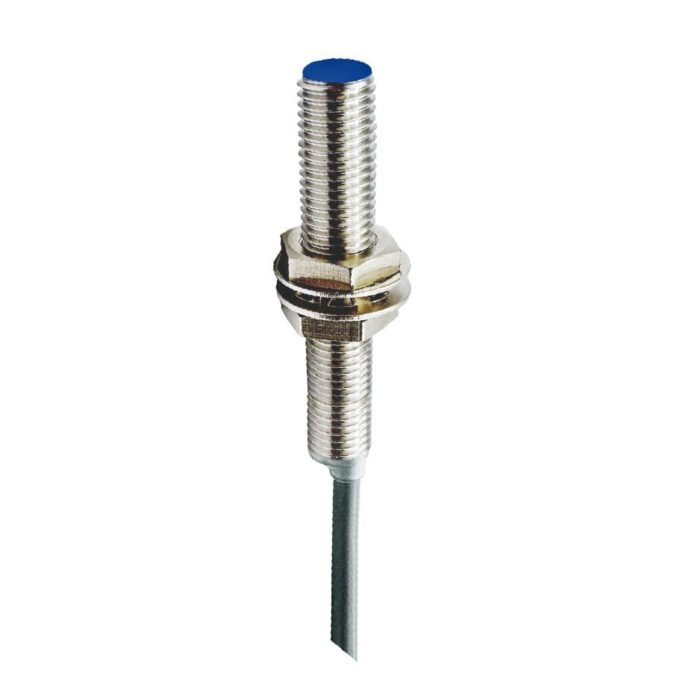

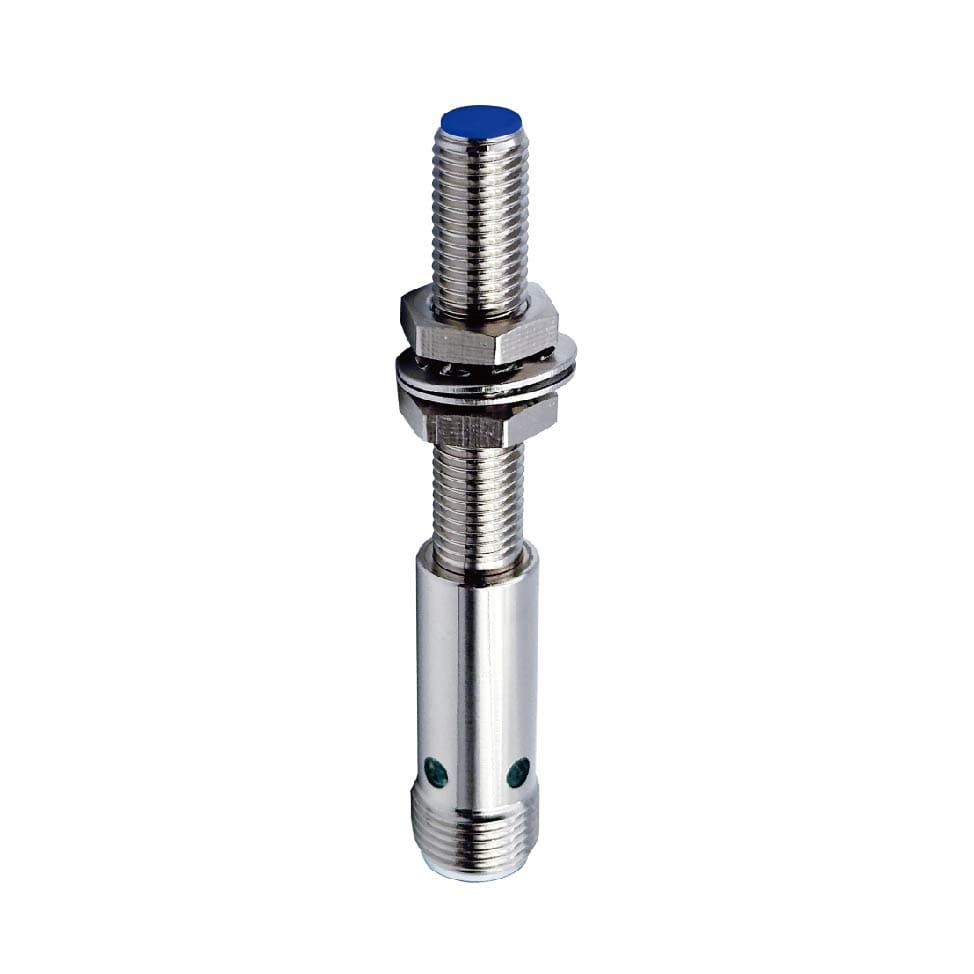

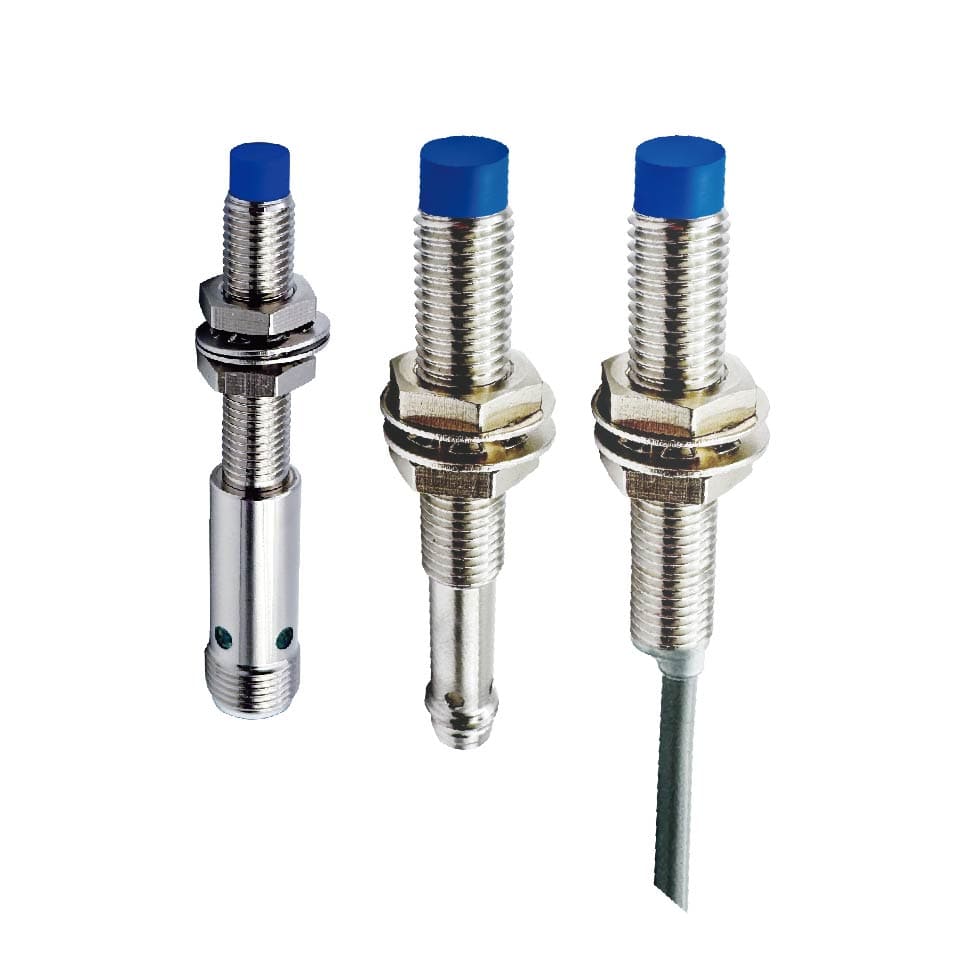

Bedook Inductive Proximity Sensor M8 DC 2 Wire

Introducing the Bedook Inductive Proximity Sensor M8 DC 2 Wire – your reliable solution for proximity sensing needs with a streamlined installation process.

This compact sensor, equipped with M8 external threading, Offering 2mm or 4mm sensing distances and a wide voltage range of 10-60VDC.

It features an IP67 rating, Stainless Steel/Brass, nickel-plated housing, and POM sensing face, suitable for various high-precision applications.

Inductive Switch Product Features:

This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.

• Versatile Functionality: Offers both NO and NC output options to fulfill various application requirements.
• Simplified Installation: M8 external threading and DC 2 wire design enable easy installation and versatile usability.
• Precision Performance: This sensor offers 2mm or 4mm sensing distances, suitable for high-precision requirements
• Durable Construction: Constructed from Stainless Steel/Brass, nickel-plated and POM, it boasts IP67 ingress protection for operation in harsh environments.
• Wide Operating Range: Operates effectively within a 10 to 60 VDC range, with temperature tolerances from -25 to 70℃.
• Certified Quality: Achieves compliance with CE, UKCA, ROHS, showcasing our commitment to industry standards and safety.

Inductive Switch Technical Parameters:

Switching Frequency: 1000Hz(2mm)

Appearance
Model	NO	BB-M802C-V13P2	BB-M802C-V13S8	BB-M802C-V13S12
	NC	BB-M802C-V23P2	BB-M802C-V23S8	BB-M802C-V23S12
Appearance Structure		M8*1mm
Sensing Distance		2mm(flush mounting)
Switching Frequency		1000Hz
Operating voltage		10…60VDC(±10%)
Voltage drop		≤4.5V
Load current		100mA
Leakge current		≤0.5mA
Hysteresis		＜15%(Sr)
Repeatability		＜1.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Stainless Steel/Brass, nickel-plated
Face material		POM
Connectors		2m PVC Cable, 2*0.25mm²/M8 connector/M12 connector
Accessories		B8-3GV2/B8-3WV2/B12-4GV2/B12-4WV2

Switching Frequency: 500Hz(4mm)

Appearance
Model	NO	BN-M804C-V13P2	BN-M804C-V13S8	BN-M804C-V13S12
	NC	BN-M804C-V23P2	BN-M804C-V23S8	BN-M804C-V23S12
Appearance Structure		M8*1mm
Sensing Distance		4mm(Non-flush mounting)
Switching Frequency		500Hz
Operating voltage		10…60VDC(±10%)
Voltage drop		≤4.5V
Load current		100mA
Leakge current		≤0.5mA
Hysteresis		＜15%(Sr)
Repeatability		＜1.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Stainless Steel/Brass, nickel-plated
Face material		POM
Connectors		2m PVC Cable, 2*0.25mm²/M8 connector/M12 connector
Accessories		B8-3GV2/B8-3WV2/B12-4GV2/B12-4WV2

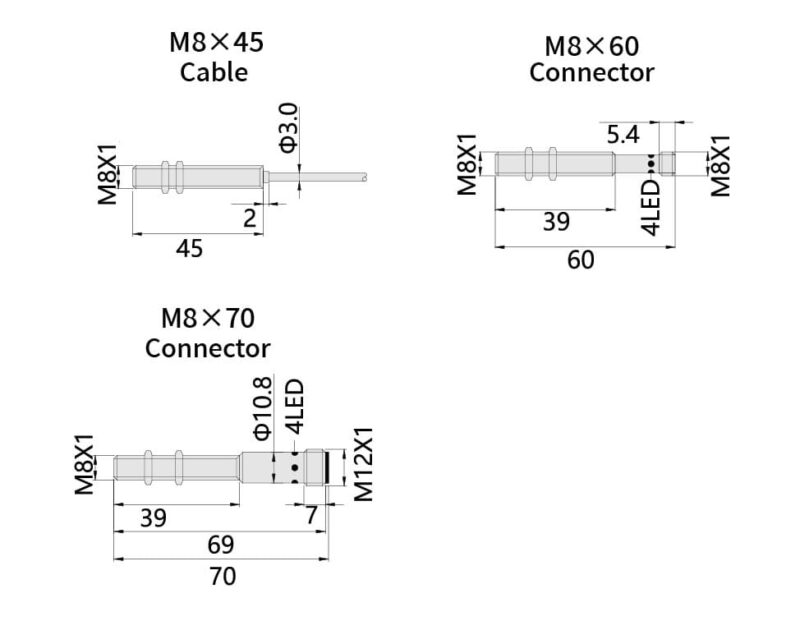

Inductive Switch Size Chart:

Bedook Inductive Proximity Sensor M8 DC 2 Wire-Size-01

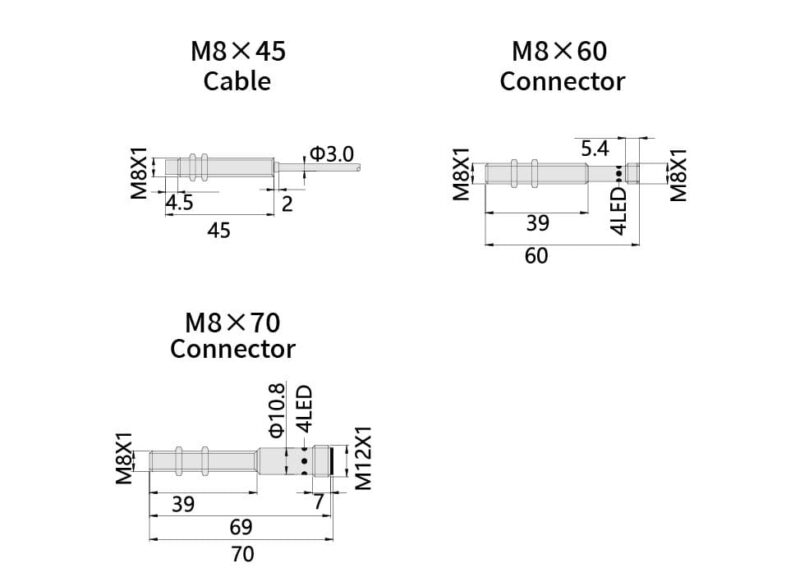

Bedook Inductive Proximity Sensor M8 DC 2 Wire-Size-02

As a leading manufacturer specializing in sensor technology, Bedook not only ensures competitive pricing but also stands behind the quality and reliability of our products.

Encouraging potential clients to inquire, our Bedook Inductive Proximity Sensor M8 DC 2 Wire is a testament to our engineering excellence and industry expertise.
