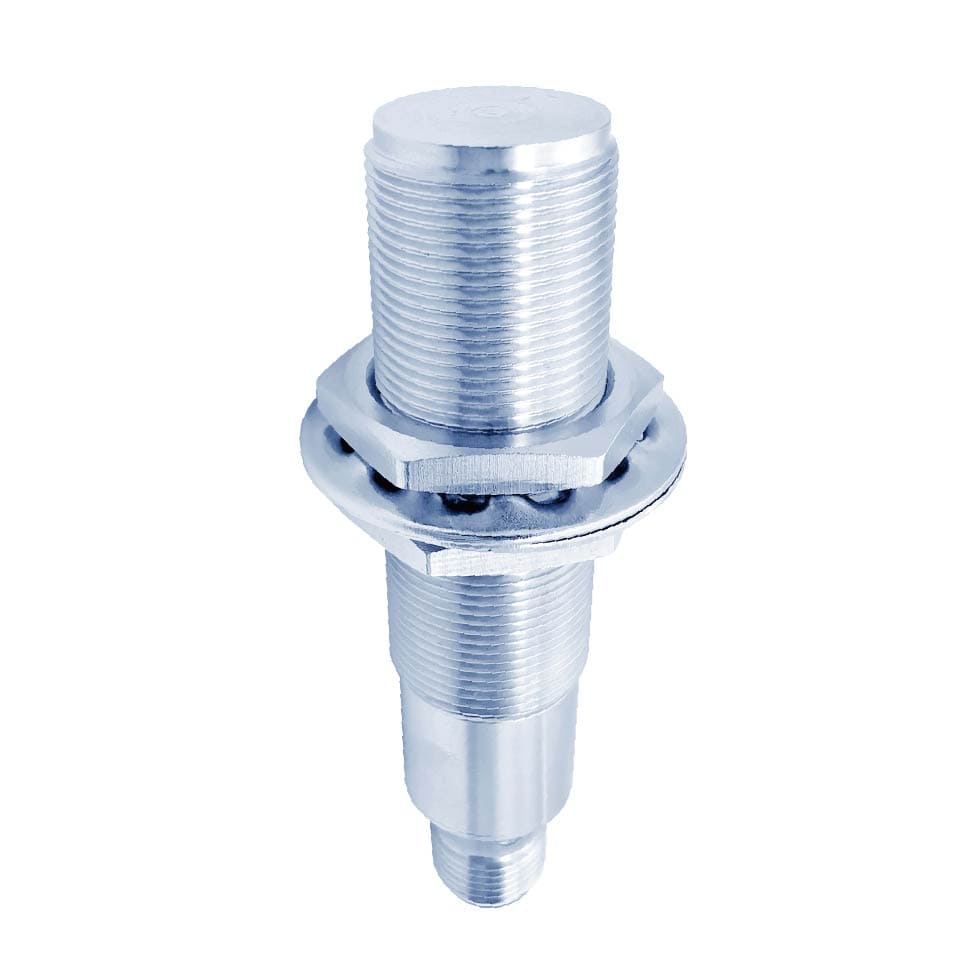

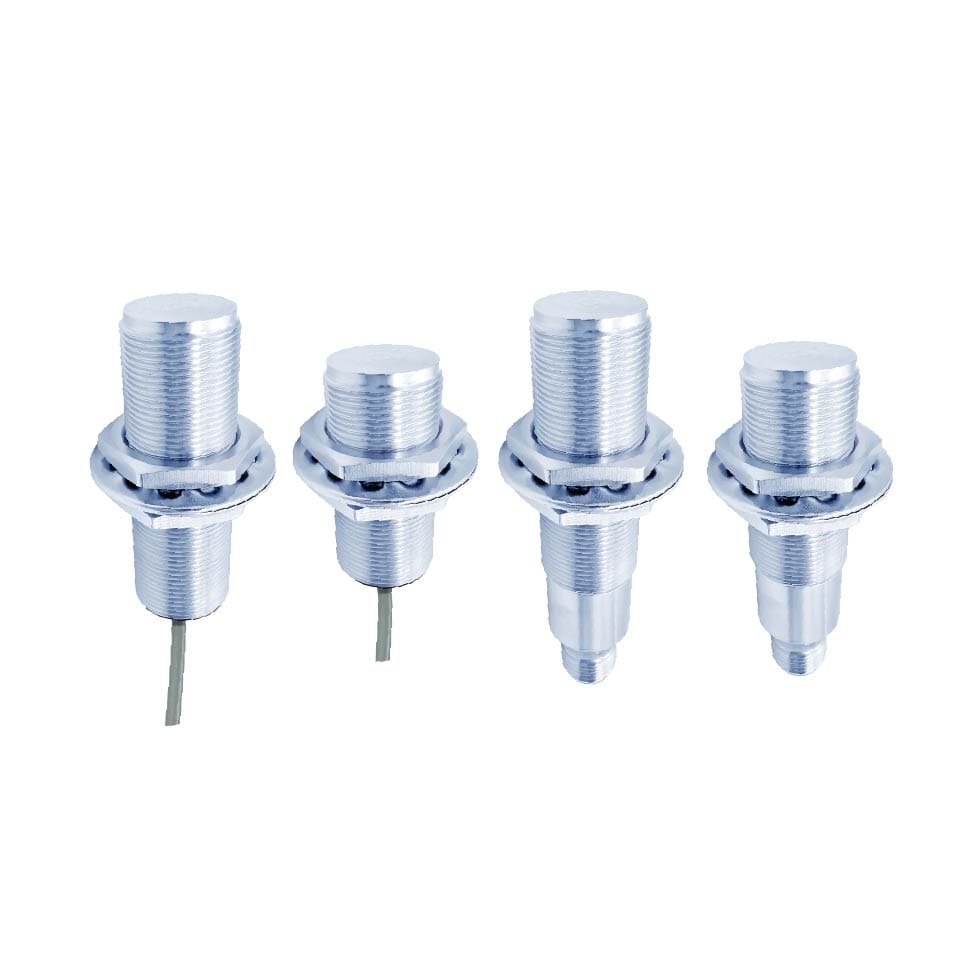

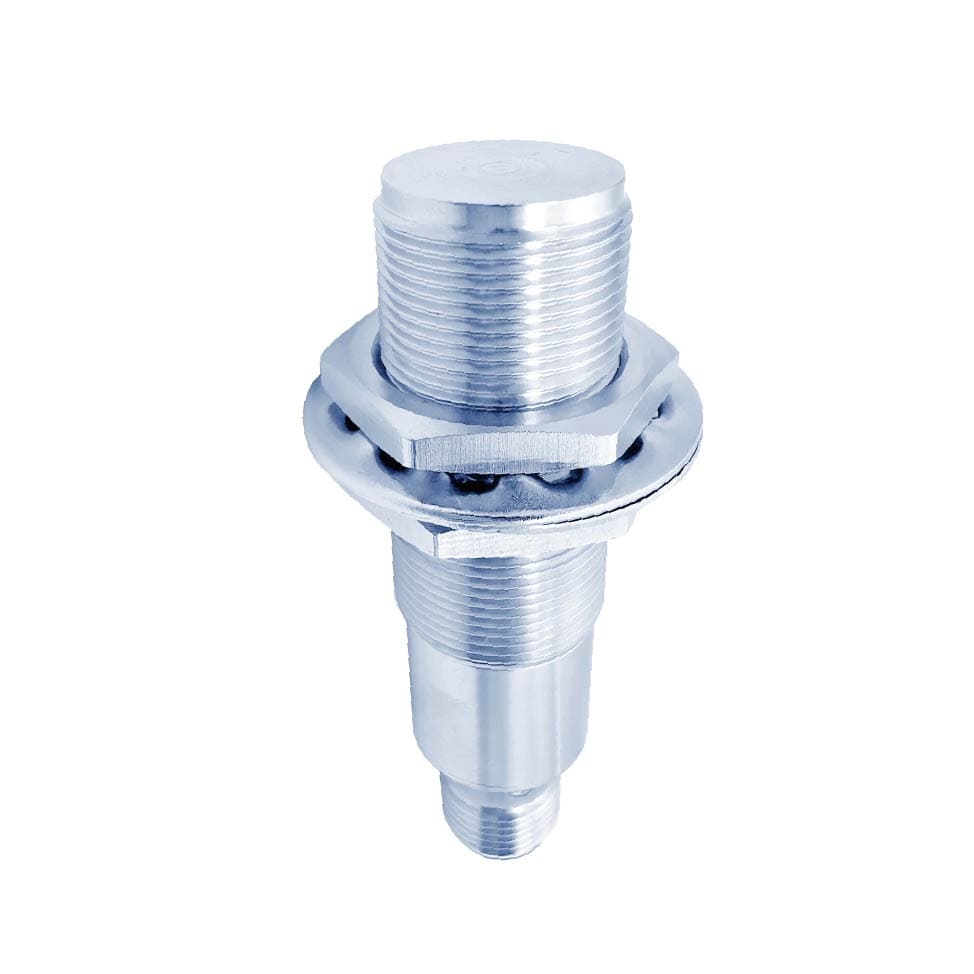

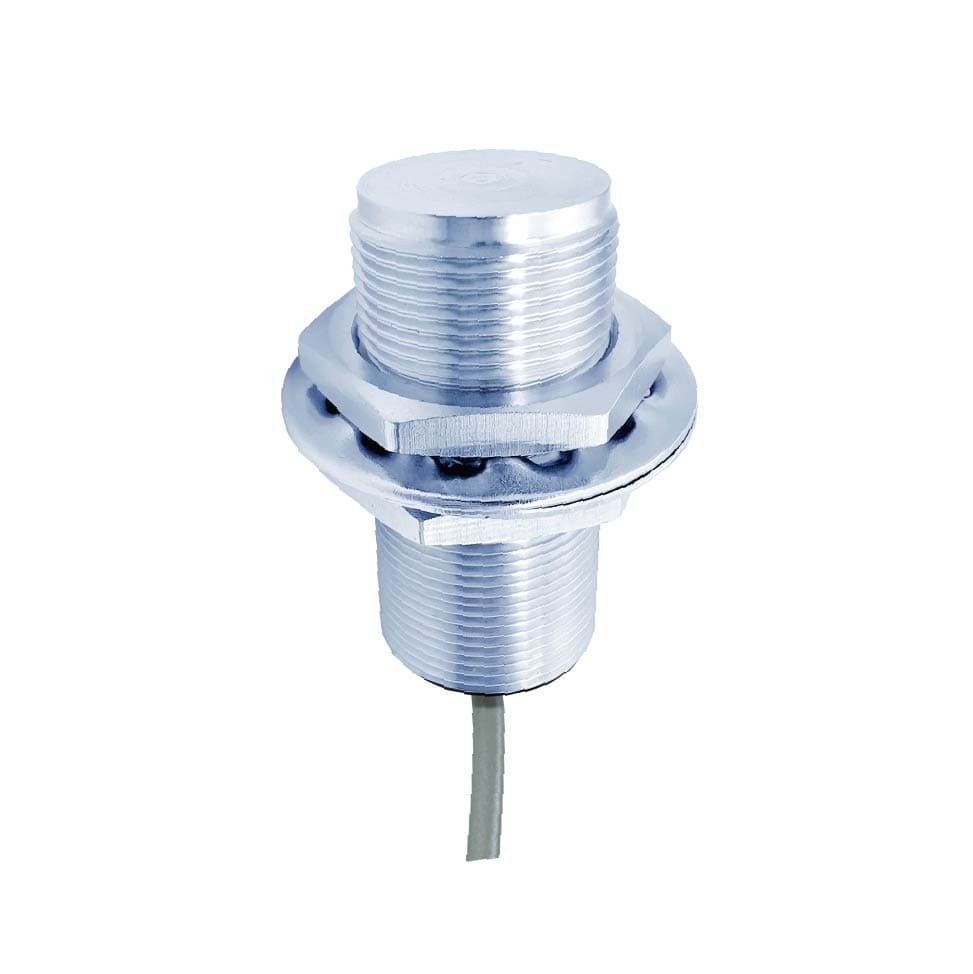

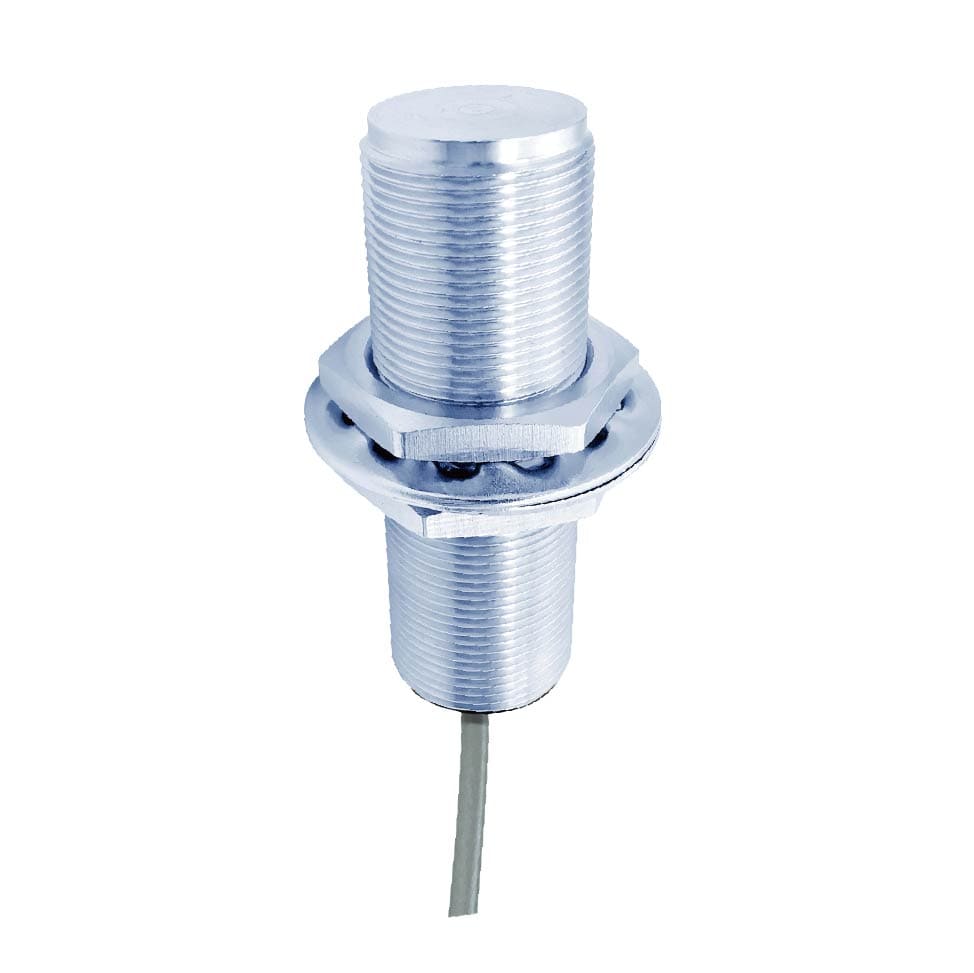

Bedook Inductive Proximity Sensor Metal Face M18 5/8mm DC 3 Wire
Bedook Inductive Proximity Sensor Metal Face M18 5/8mm DC 3 Wire, Stainless Steel face, M18 threads, 5/8mm sensing distances, 100Hz, Repeatability＜1.0%, 10 to 30 VDC, IP67, NO/NC, NPN/PNP, indication LED, Switch output, CE, UKCA, ROHS, etc.
Description
The Bedook Inductive Proximity Sensor Metal Face M18 5/8mm DC 3 Wire stands out with its robust stainless steel sensing face designed for extreme durability.Stainless steel sensing face and housing, Withstand damage from impact, resulting in extended sensor life.
This material choice ensures excellent resistance to wear, high temperatures, and corrosive environments, making it ideal for the harshest industrial conditions.
Inductive Switch Product Features:
Ideal for extreme industrial applications, the Bedook Inductive Proximity Sensor M18 features a 5/8mm sensing range, stainless steel face, and multiple output options. Reliable, precise, and easy to install with M18 threads.
- Durable Stainless Steel Face: Anti-wear, high temperature resistant, and corrosion-resistant, ideal for extreme conditions.
- High Precision Sensing: Offers a 5/8mm sensing distance with repeatability <1.0%, ensuring accuracy and reliability.
- Versatile Output Options: Available in both NPN/PNP and NO/NC models, providing flexibility for various applications.
- Wide Voltage Range: Operates from 10 to 30 VDC, suitable for diverse industrial needs.
- Robust Design: IP67 ingress protection ensures durability against dust and water, making it suitable for severe environments.
- Easy Installation: Features M18 external threads and 2m PVC cable (3*0.35mm²)/ M12 connector for straightforward wiring and setup.
Switching Frequency:100Hz
| Appearance |  |
 |
 |
 |
|
| Model | NPN NO | BFB-M18 □□ N-V11S8 | BFB-M18 □□ N-V11S8-S | BFB-M18 □□ N-V11S12 | BFB-M18 □□ N-V11S12-S |
| NPN NC | BFB-M18 □□ N-V21S8 | BFB-M18 □□ N-V21S8-S | BFB-M18 □□ N-V21S12 | BFB-M18 □□ N-V21S12-S | |
| PNP NO | BFB-M18 □□ P-V11S8 | BFB-M18 □□ P-V11S8-S | BFB-M18 □□ P-V11S12 | BFB-M18 □□ P-V11S12-S | |
| PNP NC | BFB-M18 □□ P-V21S8 | BFB-M18 □□ P-V21S8-S | BFB-M18 □□ P-V21S12 | BFB-M18 □□ P-V21S12-S | |
| Appearance Structure | M18*1mm | ||||
| Sensing Distance | 5mm/8mm(flush mounting） | ||||
| Switching Frequency | 100Hz | ||||
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| No load current | ≤10mA(24V) | ||||
| Leakge current | ≤0.01mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Stainless steel | ||||
| Face material | Stainless steel | ||||
| Connectors | 2m PVC cable,3*0.35mm²/M12 connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||

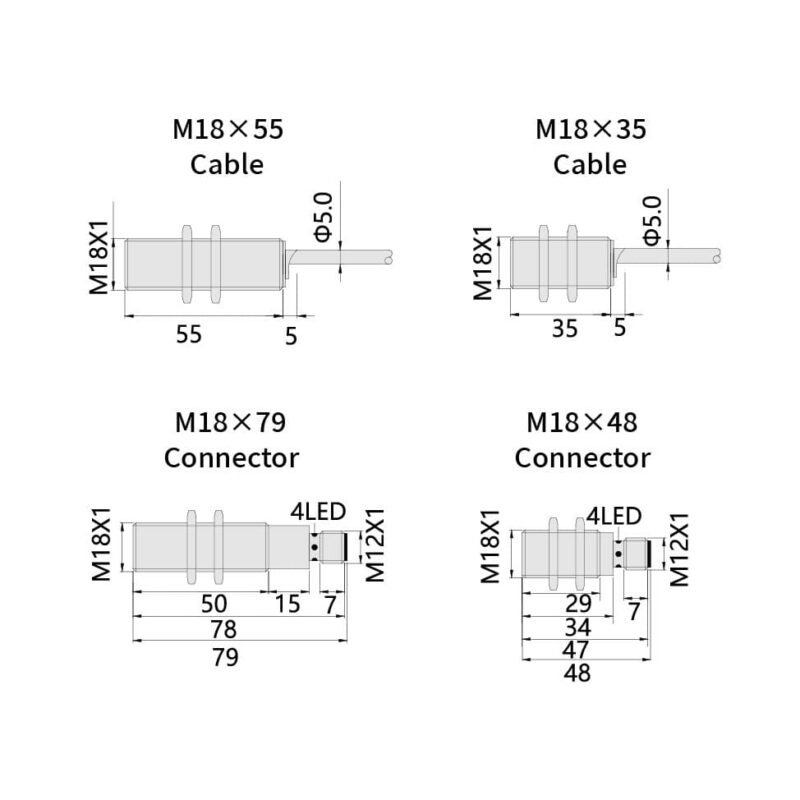

Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Metal Face M18 5-8mm DC 3 Wire-Size-01
