Description

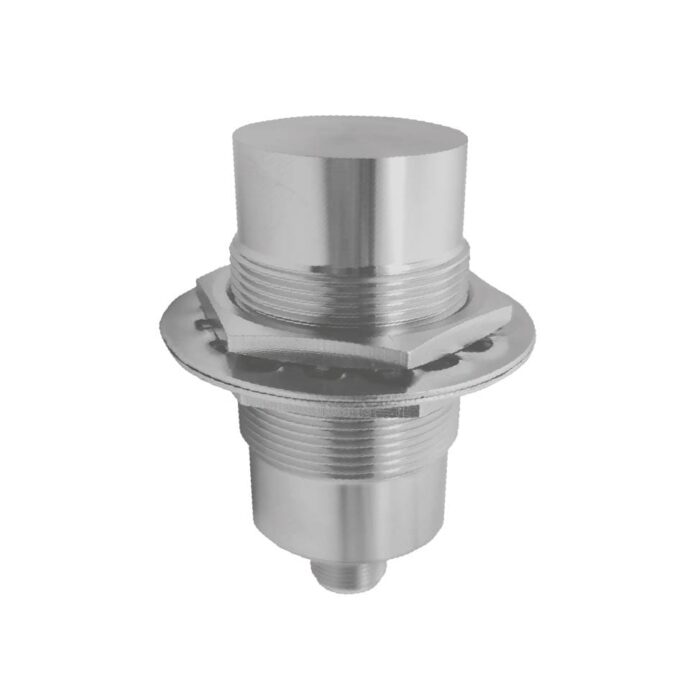

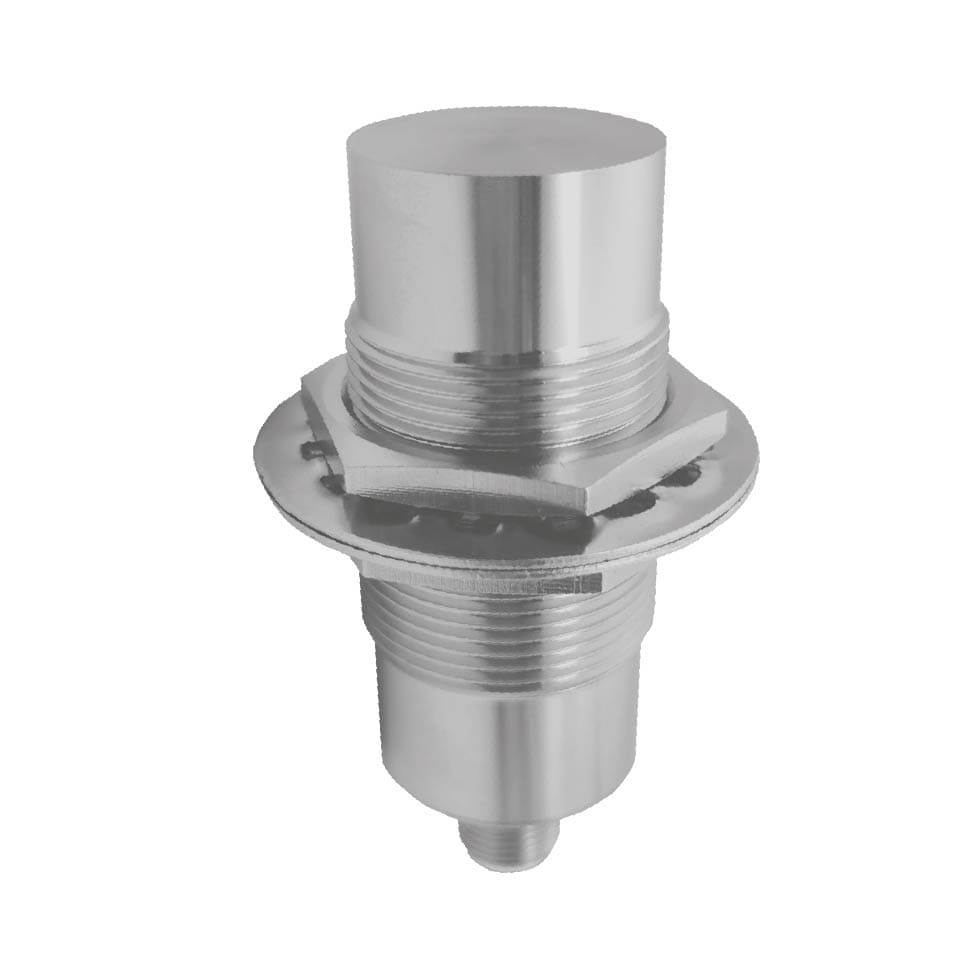

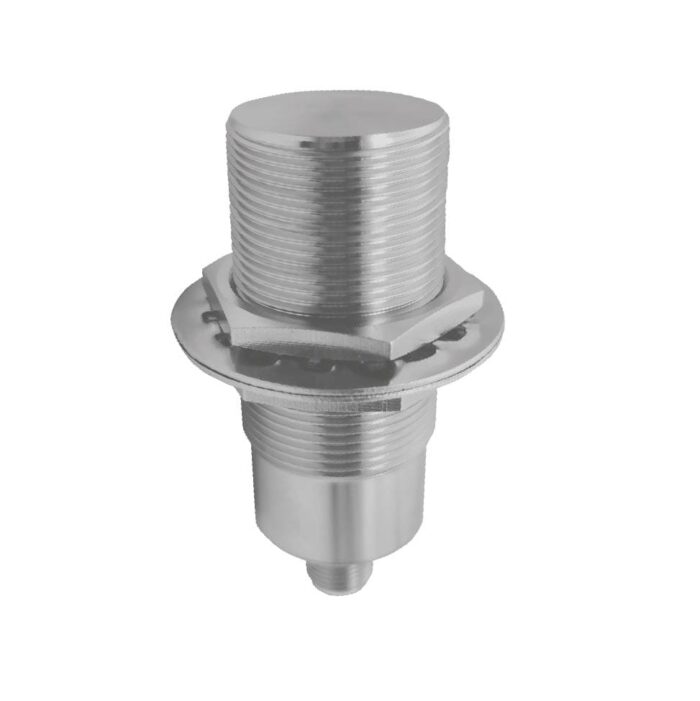

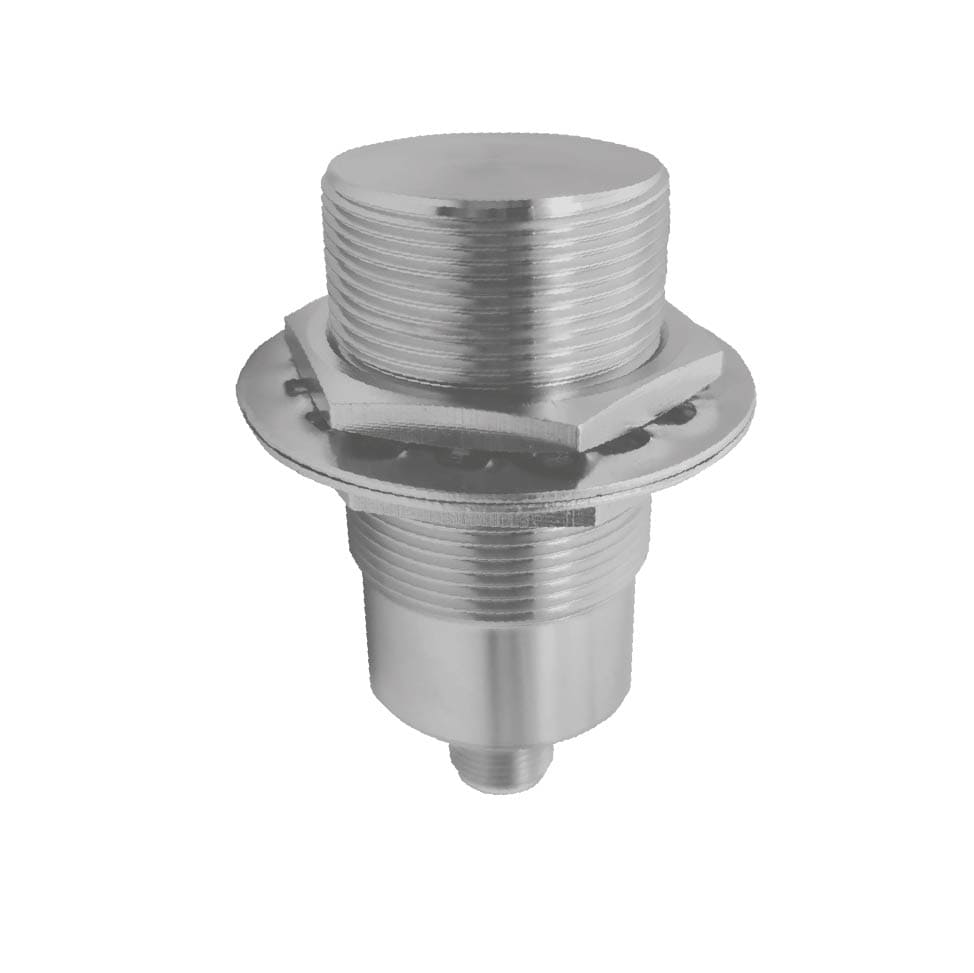

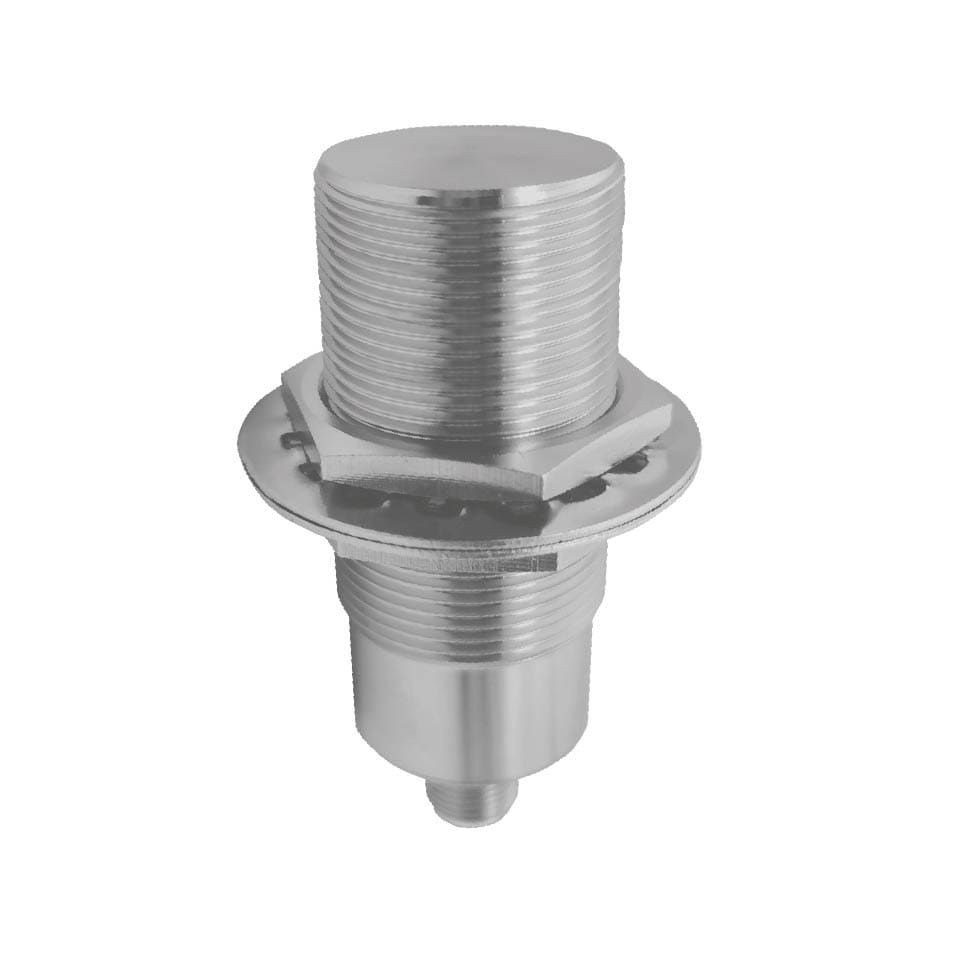

The Bedook Inductive Proximity Sensor Teflon M30 is a high-performance sensor designed for precision and durability in harsh environments, With a sensing distance of 10/15mm and repeatability of less than 1%.
With a Copper-plated Teflon housing and PTFE face, it excels in corrosion resistance and electrical insulation, making it ideal for industries such as food processing, chemical manufacturing, pharmaceuticals, petroleum, and water treatment.
Inductive Switch Product Features:
Bedook Inductive Proximity Sensor Teflon features Copper-plated Teflon housing and PTFE face, offering excellent corrosion resistance and high precision. Suitable for diverse industrial applications.
- Material Superiority: Copper-plated Teflon housing and PTFE face ensure exceptional corrosion resistance and chemical durability.
- Temperature Stability: Operates effectively within a temperature range of -25 to 70 ℃, suitable for extreme temperature environments.
- High Precision: Repeatability of less than 1%, ensuring reliable and accurate measurements for critical applications.
- Versatile Outputs: Available in NO/NC switch outputs and PNP/NPN types, providing flexibility for various applications.
- Easy Installation: M30 cylindrical design with external threads allows for simple and secure installation.
- Robust Protection: IP67 ingress protection along with comprehensive switch protection, including short circuit, polarity reversal, and power-on protection.
Switching Frequency:300Hz

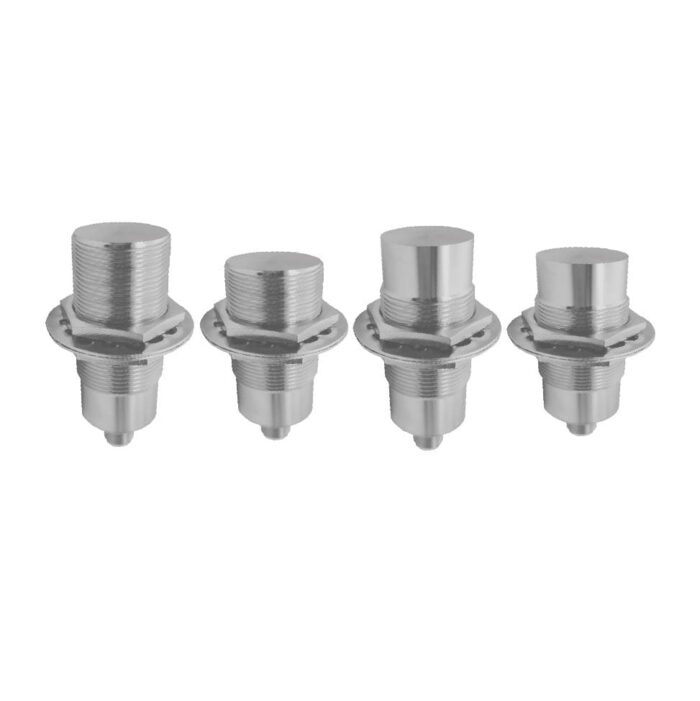

| Appearance |  |
 |
|
|
|
| Model | NPN NO | BB-M3010N-C11S12-F | BB-M3010N-C11S12-S-F | BN-M3015N-C11S12-F | BN-M3015N-C11S12-S-F |
| NPN NC | BB-M3010N-C21S12-F | BB-M3010N-C21S12-S-F | BN-M3015N-C21S12-F | BN-M3015N-C21S12-S-F | |
| PNP NO | BB-M3010P-C11S12-F | BB-M3010P-C11S12-S-F | BN-M3015P-C11S12-F | BN-M3015P-C11S12-S-F | |
| PNP NC | BB-M3010P-C21S12-F | BB-M3010P-C21S12-S-F | BN-M3015P-C21S12-F | BN-M3015P-C21S12-S-F | |
| Appearance Structure | M30*1.5mm | M30*1.5mm | |||
| Sensing Distance | 10mm(flush mounting） | 15mm(Non-flush mounting） | |||
| Switching Frequency | 300Hz | 300Hz | |||
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| Leakge current | ≤0.01mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Copper-plated Teflon | ||||
| Face material | PTFE | ||||
| Connectors | M8 connector/M12 connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||
Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Teflon M30 10-15mm-Size-01
With a sensing distance of 10/15mm and repeatability of less than 1%, this sensor is perfect for high-precision applications in harsh environments.
