Description

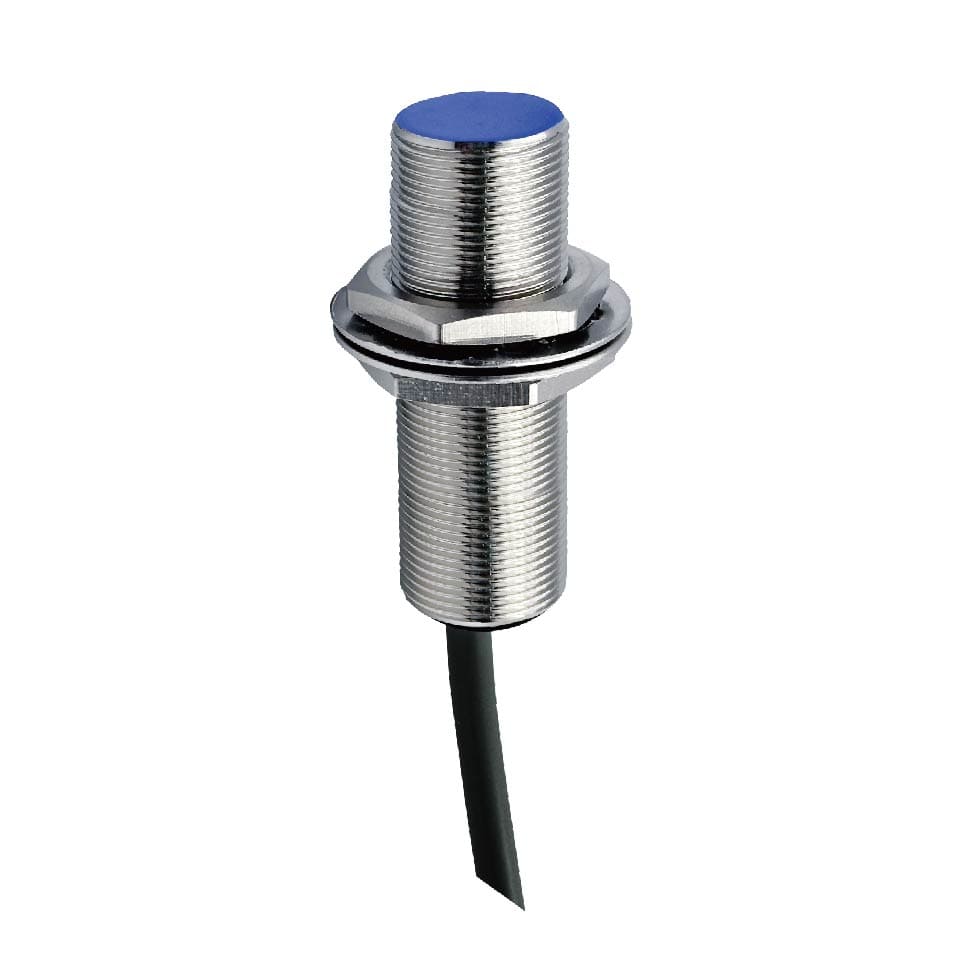

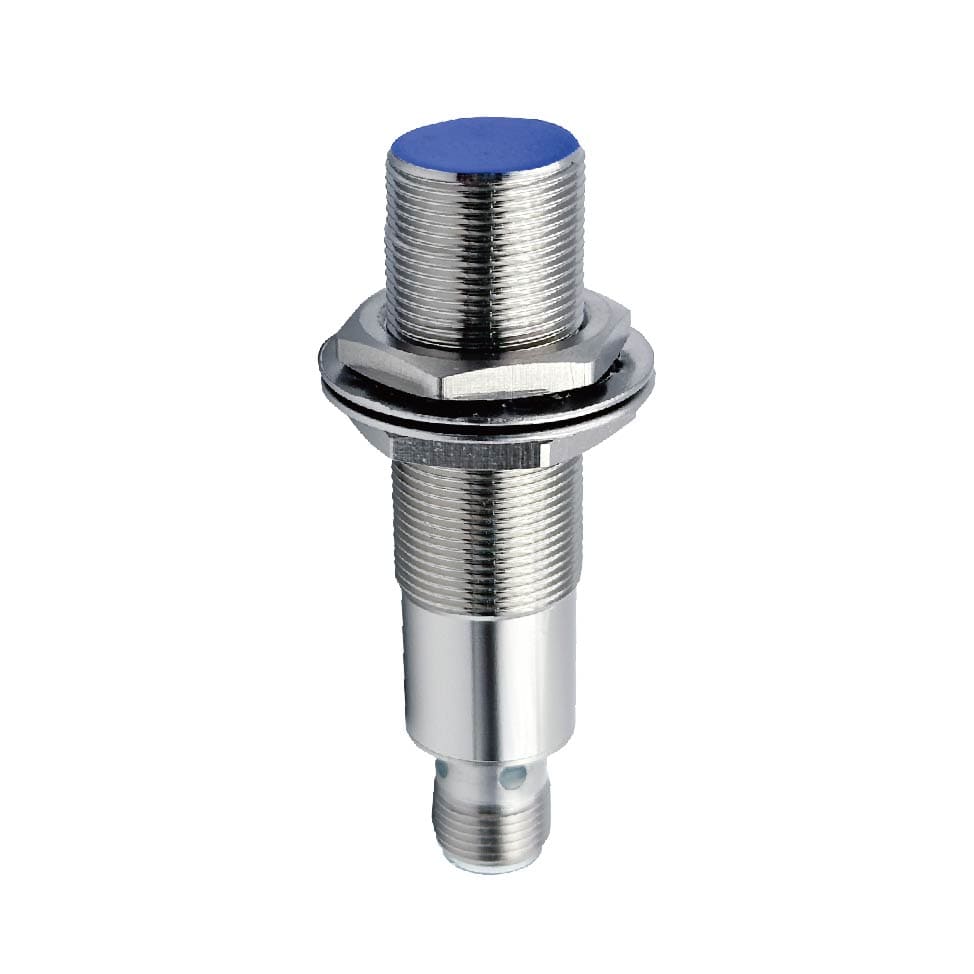

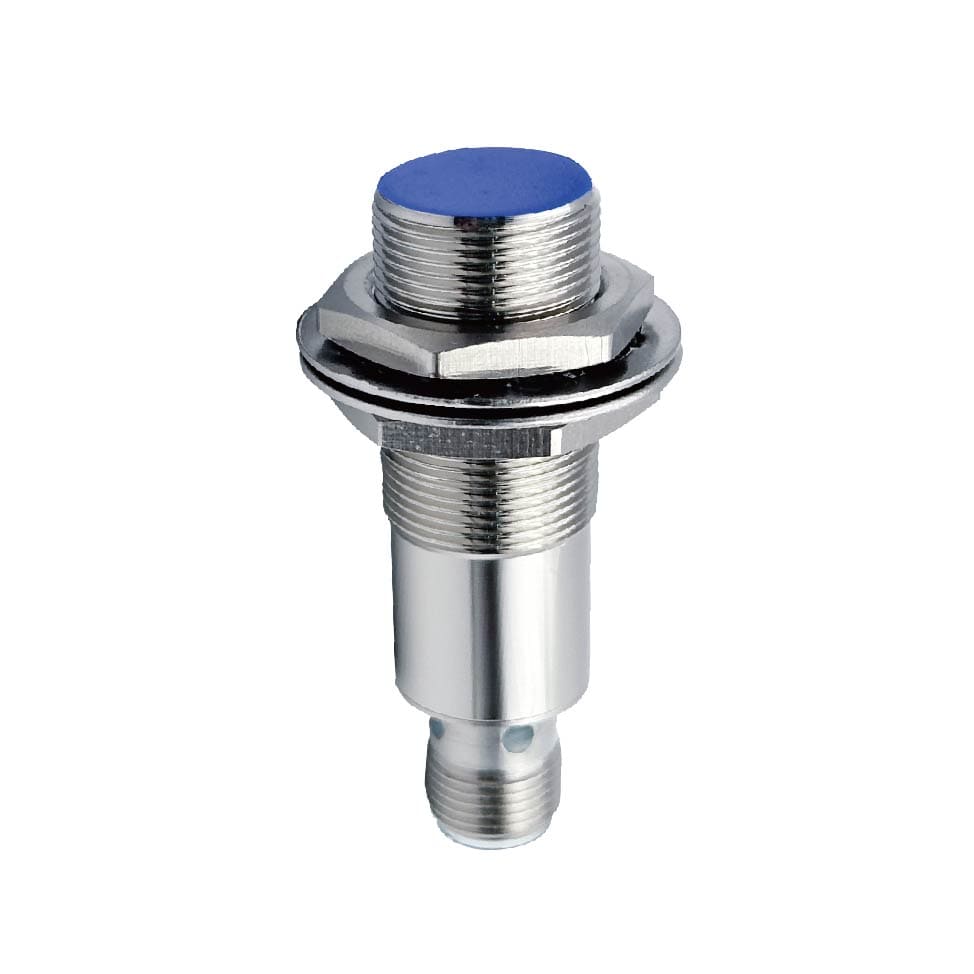

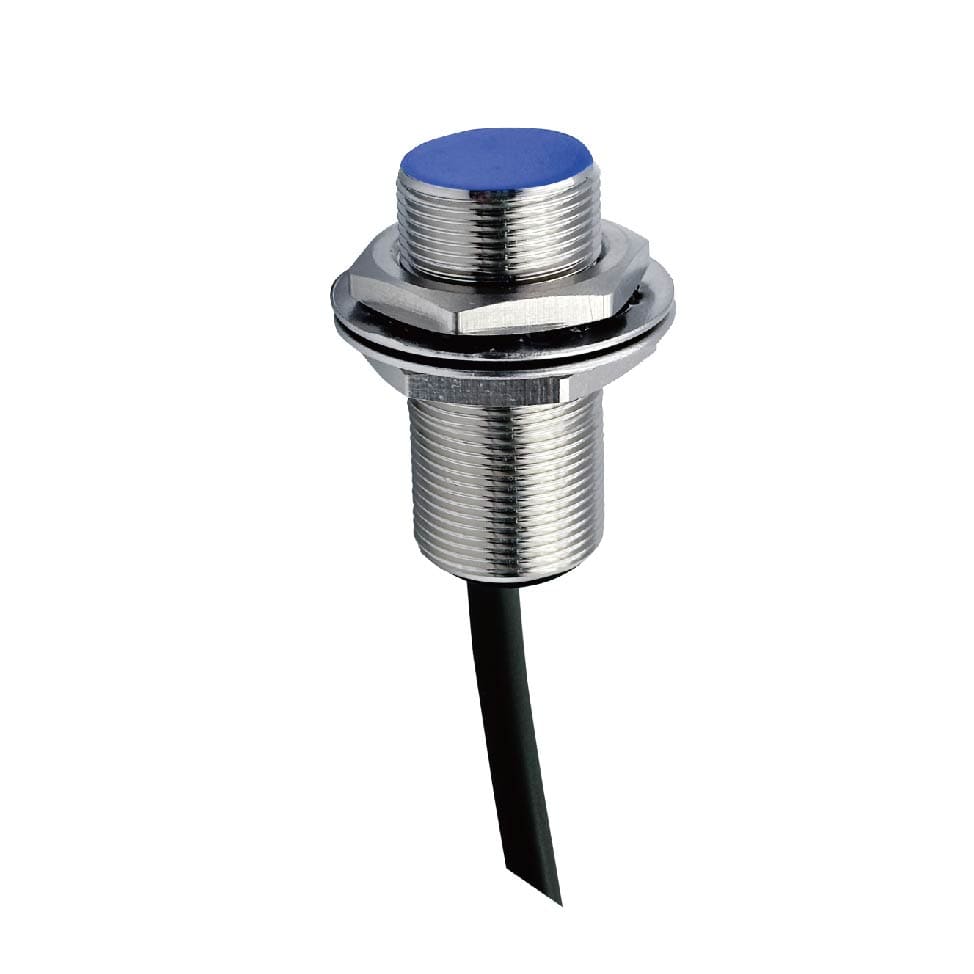

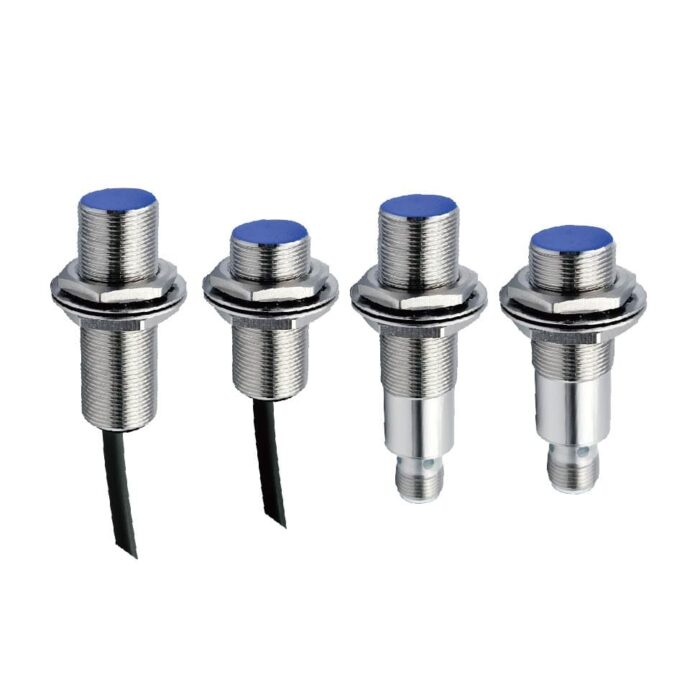

Designed for high precision and reliability, the Bedook Inductive Proximity Sensor Wide Temperature M18 8mm features a 8mm sensing distance and operates from -40℃ to 85℃.
Available in PNP/NPN and NO/NC configurations with easy DC3-wire setup.
Inductive Switch Product Features:
Bedook Inductive Sensor Wide Temperature M18 is designed for high precision and reliability in extreme temperature conditions.
- High Precision Measurement: Repeatability of <1% ensures reliable and accurate data for critical applications.
- Wide Temperature Range: Operates effectively from -45℃ to 85℃, suitable for extreme temperature environments.
- Versatile Sensing Distance: Fixed 8mm sensing distance, ideal for precise detection needs.
- Switching Output Options: Available in both NO (normally open) or NC (normally closed) configurations, providing flexibility.
- PNP/NPN Typing: Offers both PNP or NPN switching types to cater to diverse application requirements.
- Simple Wiring: DC3-wire design simplifies installation and reduces wiring complexity.
Switching Frequency:500Hz
| Appearance |  |
 |
 |
 |
|
| Model | NPN NO | BLB-M1808N-C11U2 | BLB-M1808N-C11U2-S | BLB-M1808N-C11S12 | BLB-M1808N-C11S12-S |
| NPN NC | BLB-M1808N-C21U2 | BLB-M1808N-C21U2-S | BLB-M1808N-C21S12 | BLB-M1808N-C21S12-S | |
| PNP NO | BLB-M1808P-C11U2 | BLB-M1808P-C11U2-S | BLB-M1808P-C11S12 | BLB-M1808P-C11S12-S | |
| PNP NC | BLB-M1808P-C21U2 | BLB-M1808P-C21U2-S | BLB-M1808P-C21S12 | BLB-M1808P-C21S12-S | |
| Appearance Structure | M18*1mm | ||||
| Sensing Distance | 8mm(Flush mounting) | ||||
| Switching Frequency | 3000Hz | ||||
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| Leakge current | ≤0.01mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -40…85℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | PBT | ||||
| Connectors | 2M PUR cable, 3*0.35mm²/M12 connector | ||||
| Accessories | B12-4GUS2/B12-4WUS2 | ||||

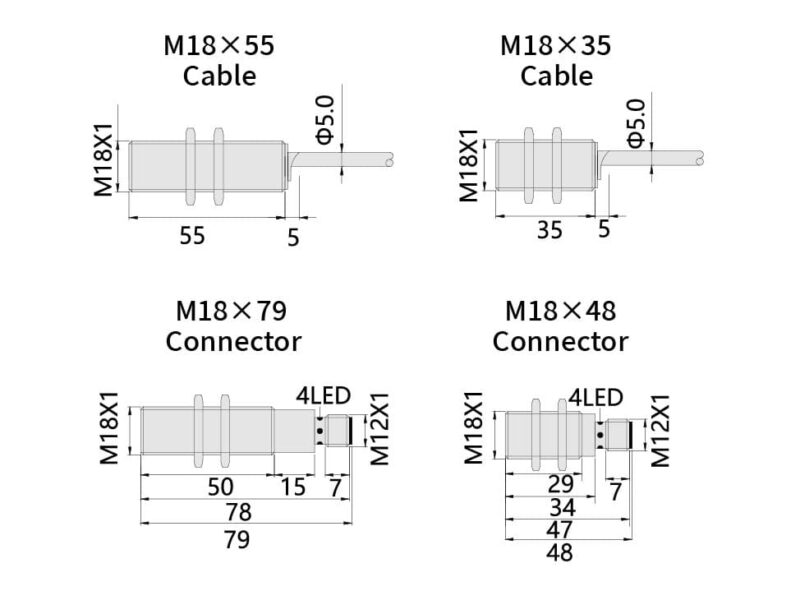

Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Wide Temperature M18 8mm-Size-01
