Description

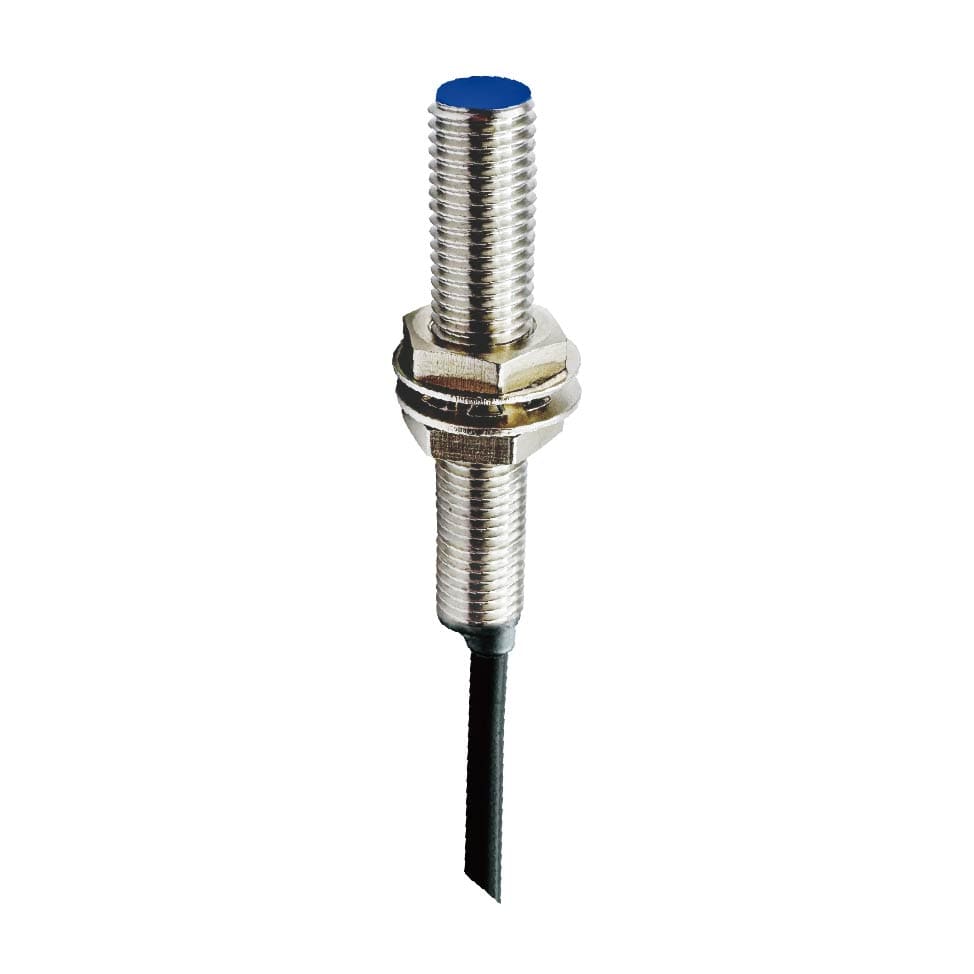

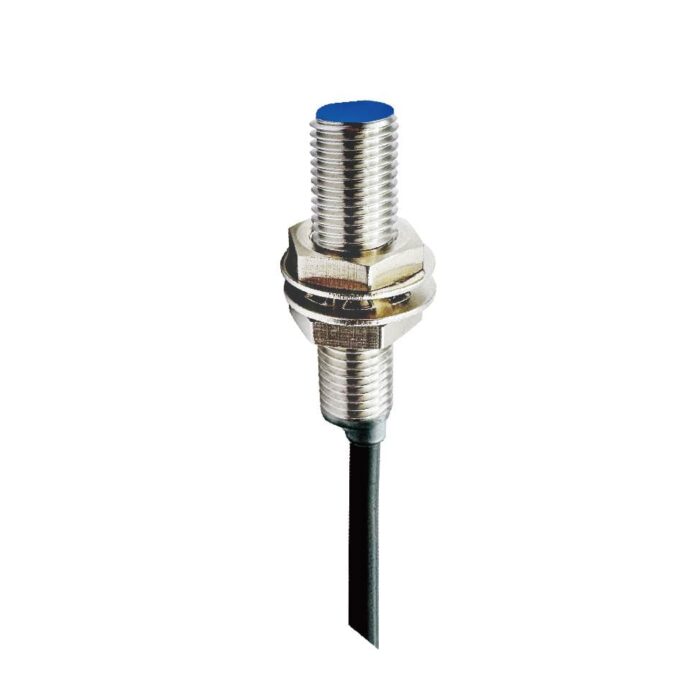

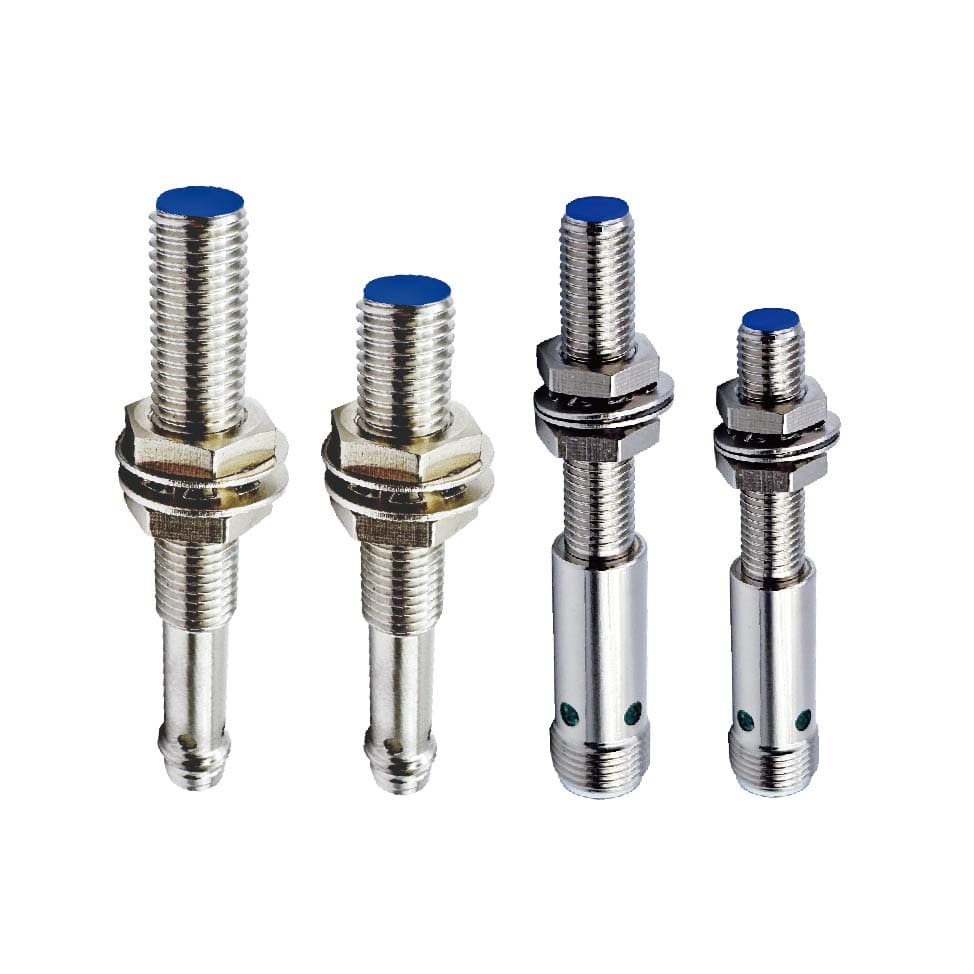

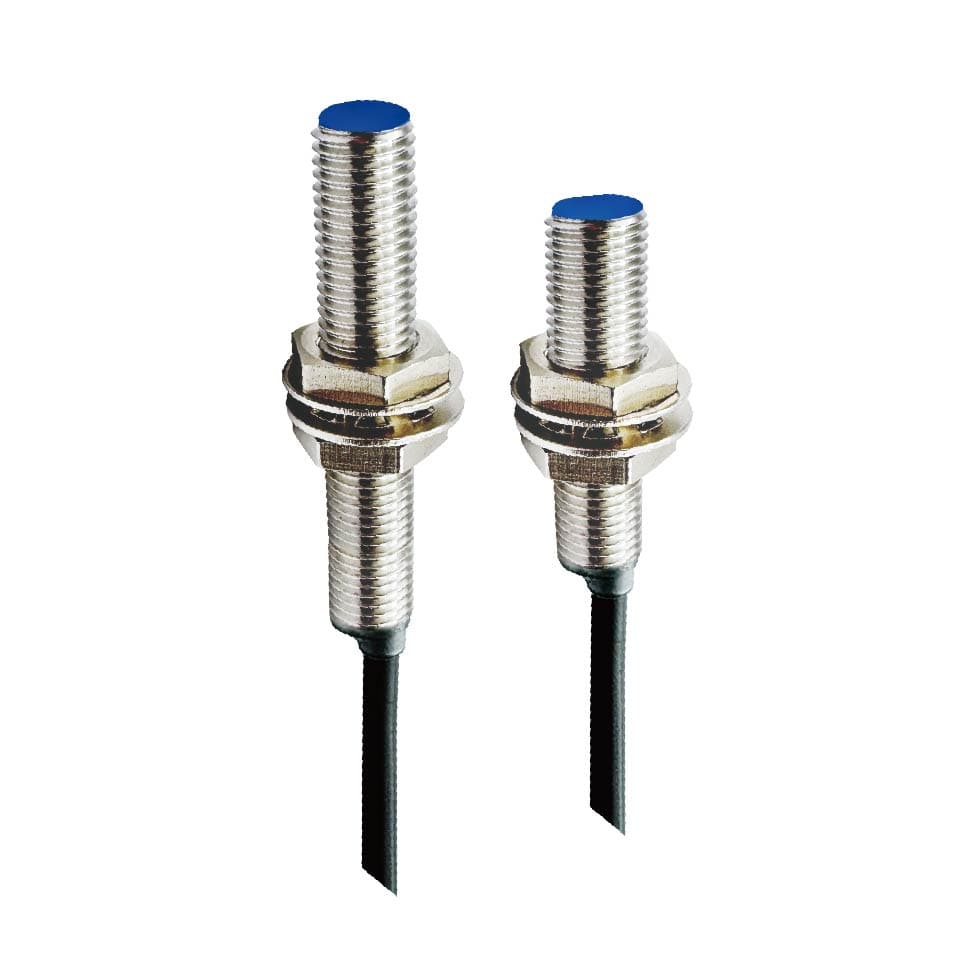

Designed for high precision and reliability, the Bedook Inductive Proximity Sensor Wide Temperature M8 2mm features a 2mm sensing distance and operates from -45℃ to 85℃.
Available in PNP/NPN and NO/NC configurations with easy DC3-wire setup.
Inductive Switch Product Features:
Bedook Inductive Sensor Wide Temperature M8 is designed for high precision and reliability in extreme temperature conditions.
- High Precision Measurement: Repeatability of <1% ensures reliable and accurate data for critical applications.
- Wide Temperature Range: Operates effectively from -45℃ to 85℃, suitable for extreme temperature environments.
- Versatile Sensing Distance: Fixed 2mm sensing distance, ideal for precise detection needs.
- Switching Output Options: Available in both NO (normally open) or NC (normally closed) configurations, providing flexibility.
- PNP/NPN Typing: Offers both PNP or NPN switching types to cater to diverse application requirements.
- Simple Wiring: DC3-wire design simplifies installation and reduces wiring complexity.
Switching Frequency:3000/2000Hz

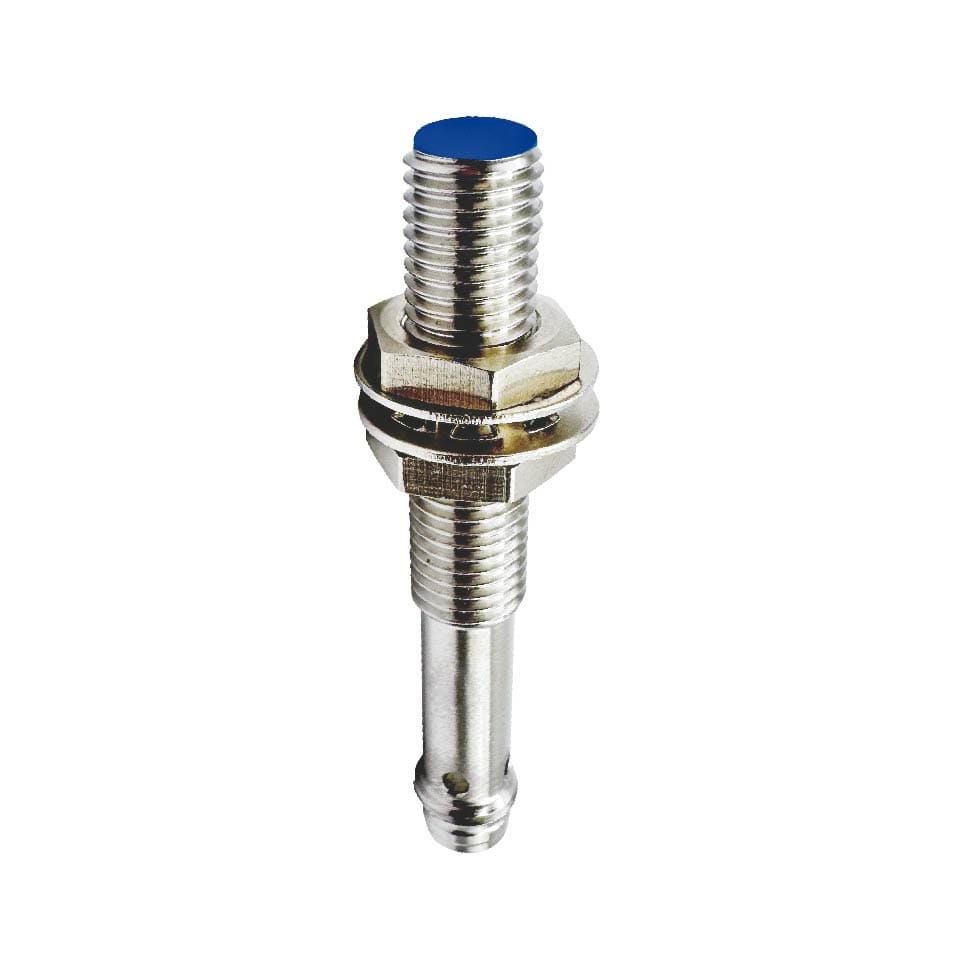

| Appearance |  |
 |
|
| Model | NPN NO | BLB-M802N-V11U2 | BLB-M802N-V11U2-S |
| NPN NC | BLB-M802N-V21U2 | BLB-M802N-V21U2-S | |
| PNP NO | BLB-M802P-V11U2 | BLB-M802P-V11U2-S | |
| PNP NC | BLB-M802P-V21U2 | BLB-M802P-V21U2-S | |
| Appearance Structure | M8*1mm | ||
| Sensing Distance | 2mm(flush mounting） | ||
| Switching Frequency | 3000Hz(2mm)/2000Hz(short body 2mm) | ||
| Operating voltage | 10…30VDC(±10%) | ||
| Voltage drop | ≤2.0V | ||
| Load current | 100mA | ||
| Leakge current | ≤0.01mA | ||
| No load current | ≤10mA(24V) | ||
| Hysteresis | ＜15%(Sr) | ||
| Repeatability | ＜1.0%(Sr) | ||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||
| Indication LED | With (Action: LED Indicator Lights Up) | ||
| Ambient temperature | -45…85℃ | ||
| Ingress protection | IP67 | ||
| Housing Material | Stainless Steel | ||
| Face material | POM | ||
| Connectors | 2m PVC Cable, 3*0.18mm² | ||
| Accessories | No | ||

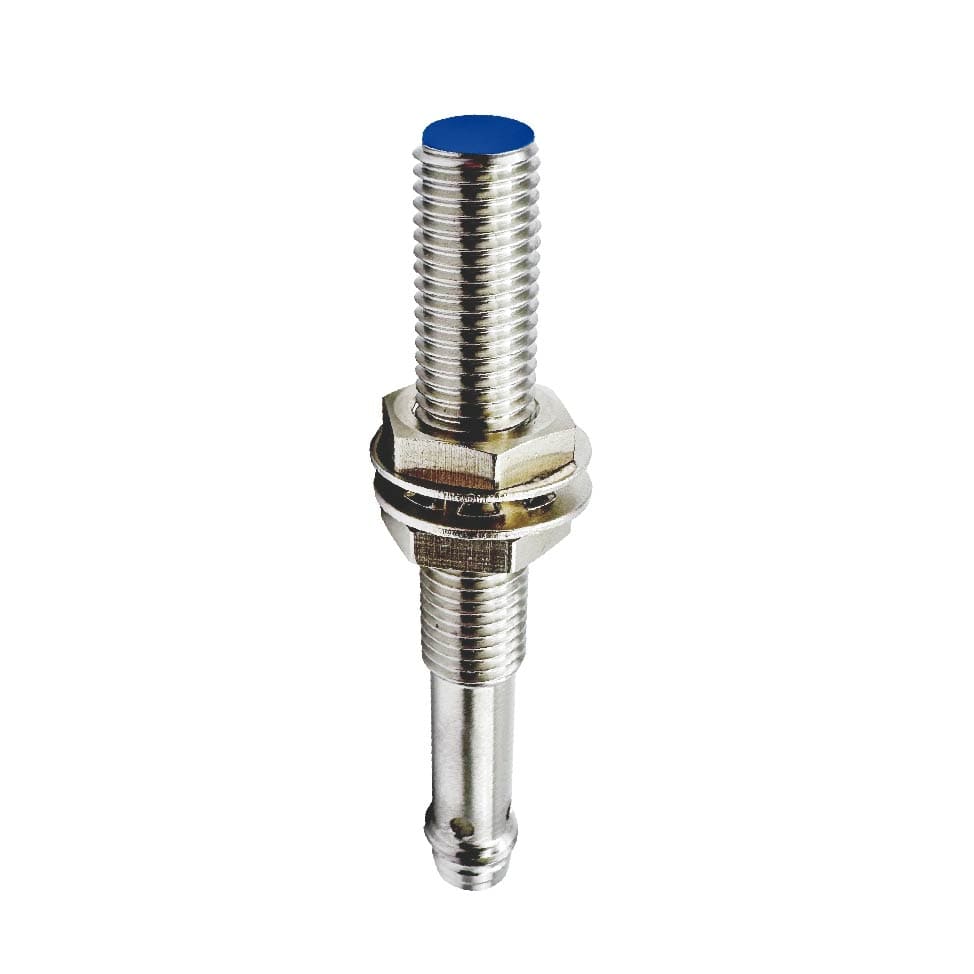

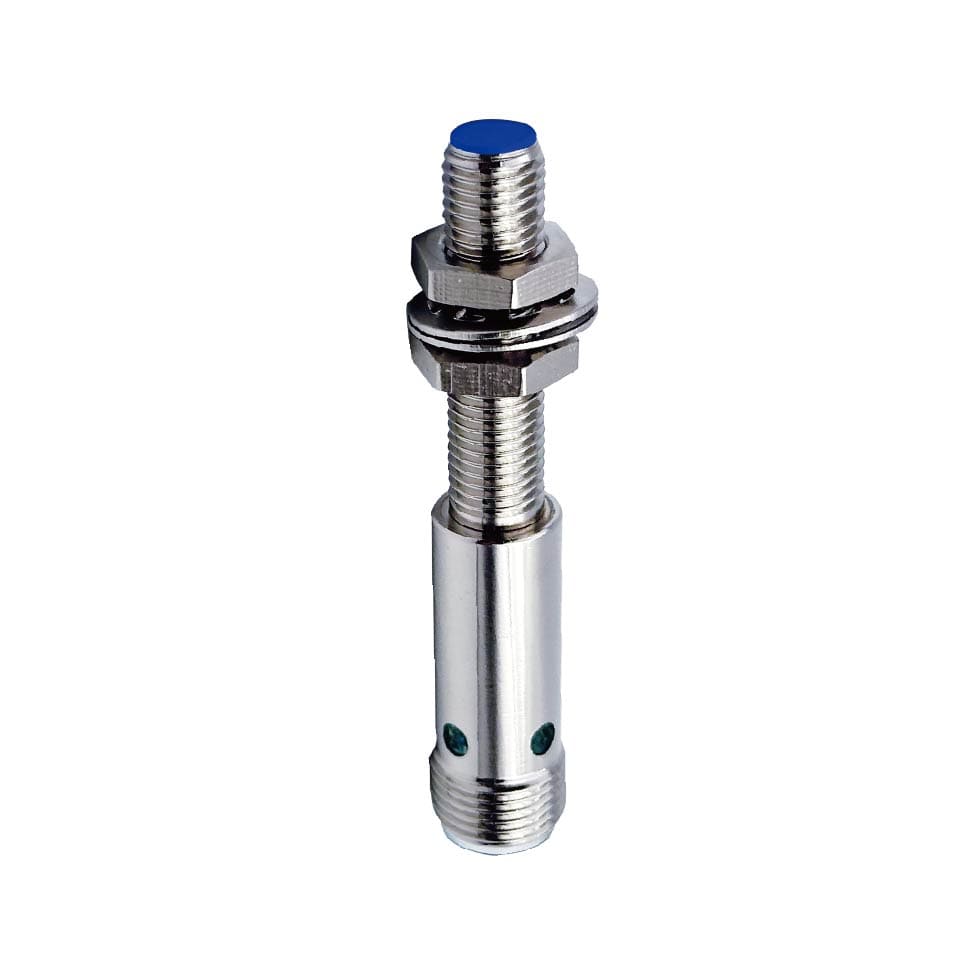

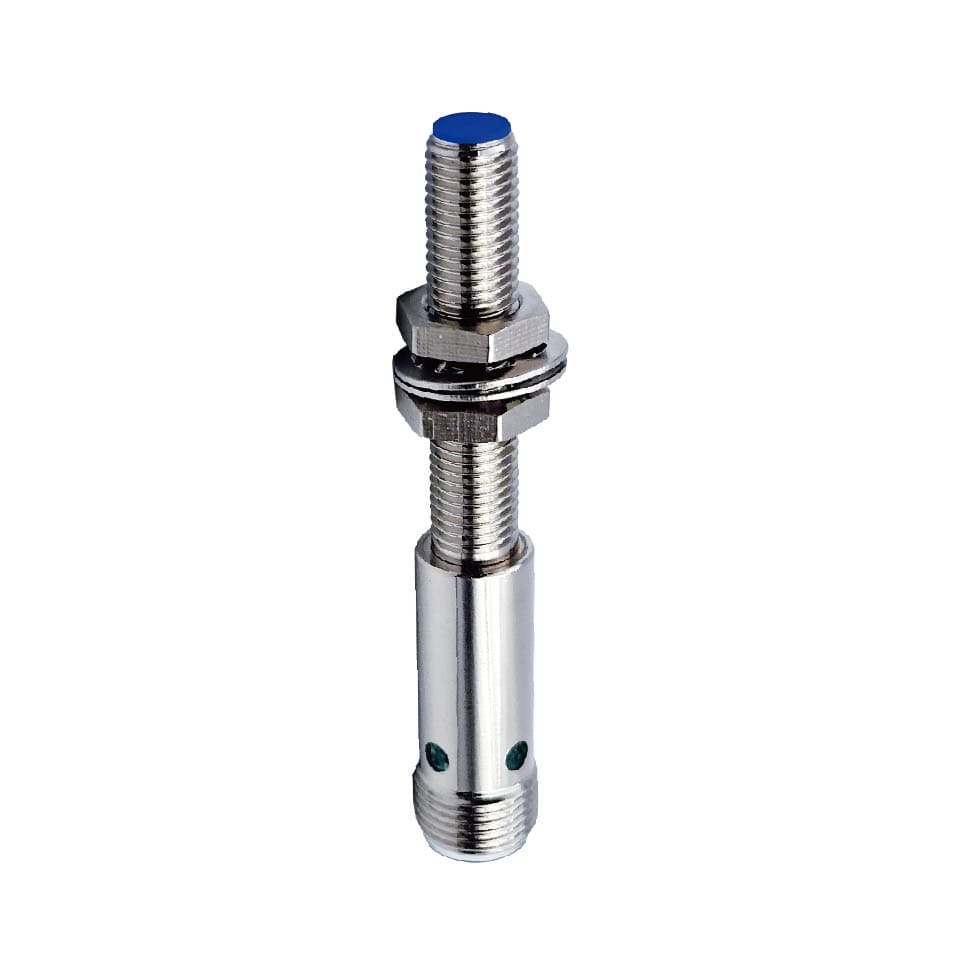

| Appearance |  |
 |
 |
 |
|
| Model | NPN NO | BLB-M802N-V11S8 | BLB-M802N-V11S8-S | BLB-M802N-C11S12 | BLB-M802N-C11S12-S |
| NPN NC | BLB-M802N-V21S8 | BLB-M802N-V21S8-S | BLB-M802N-C21S12 | BLB-M802N-C21S12-S | |
| PNP NO | BLB-M802P-V11S8 | BLB-M802P-V11S8-S | BLB-M802P-C11S12 | BLB-M802P-C11S12-S | |
| PNP NC | BLB-M802P-V21S8 | BLB-M802P-V21S8-S | BLB-M802P-C21S12 | BLB-M802P-C21S12-S | |
| Appearance Structure | M8*1mm | ||||
| Sensing Distance | 2mm(Flush mounting) | ||||
| Switching Frequency | 3000Hz(2mm)/2000Hz(short body 2mm) | ||||
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 100mA | ||||
| Leakge current | ≤0.01mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -40…85℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Stainless Steel/Brass, nickel-plated | ||||
| Face material | POM | ||||
| Connectors | M8 connector/M12 connector | ||||
| Accessories | B8-3GUS2/B8-3WUS2/B12-4GUS2/B12-4WUS2 | ||||
Inductive Switch Size Chart:

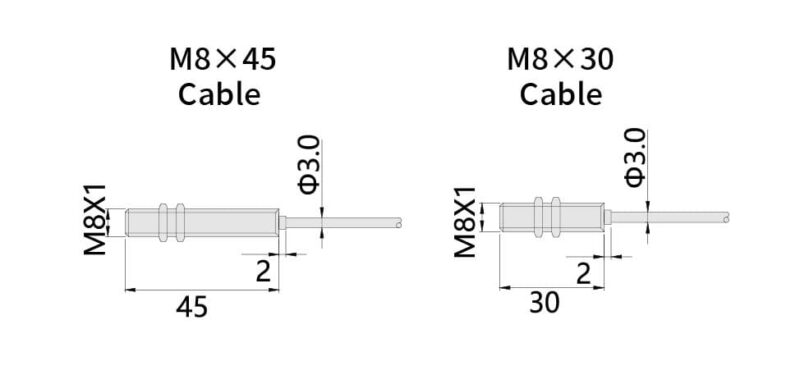

Bedook Inductive Proximity Sensor Wide Temperature M8 2mm-Size-01

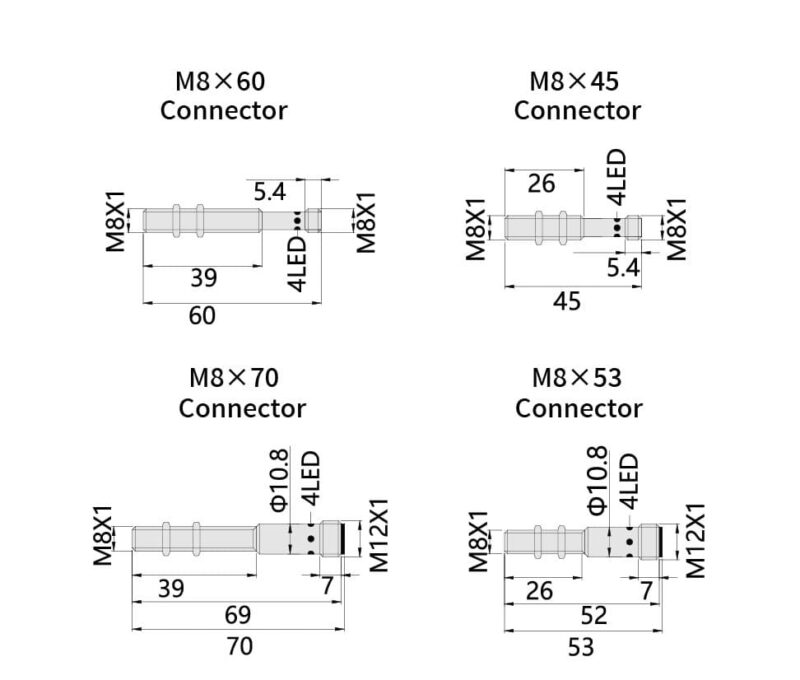

Bedook Inductive Proximity Sensor Wide Temperature M8 2mm-Size-02
