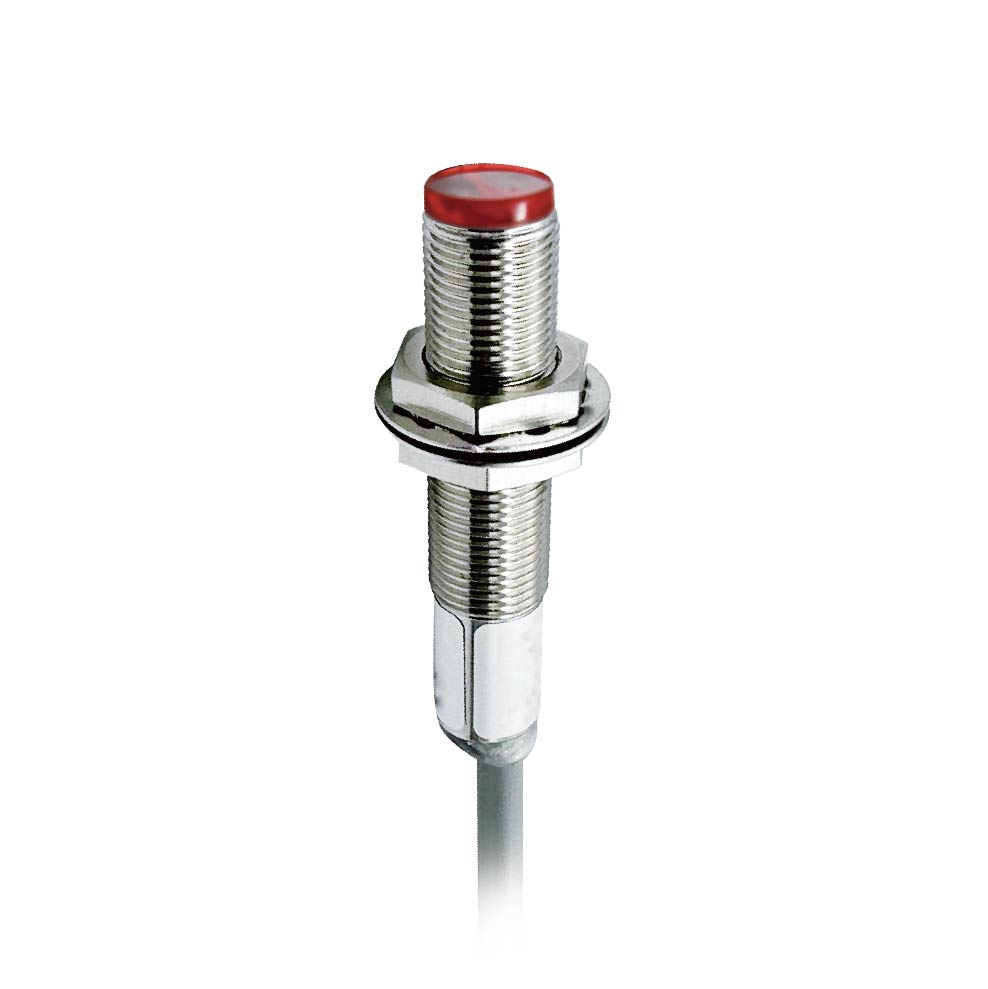

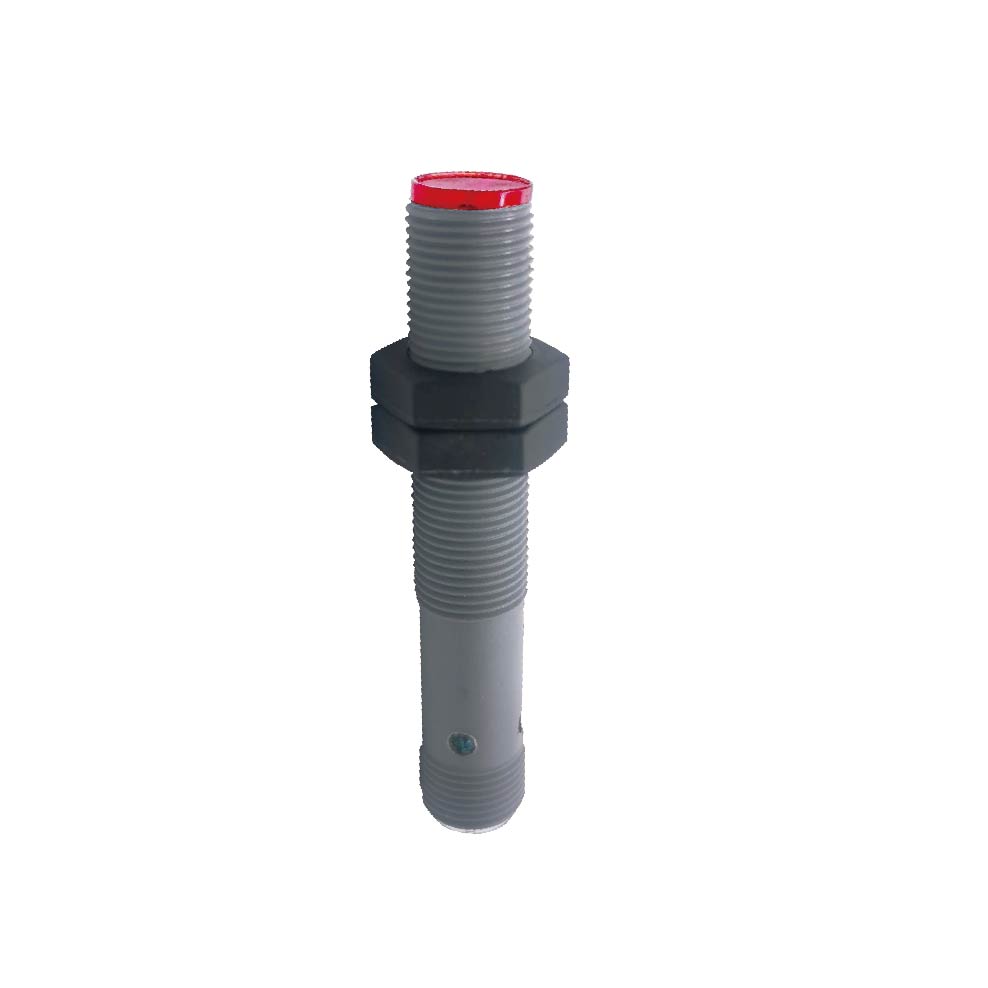

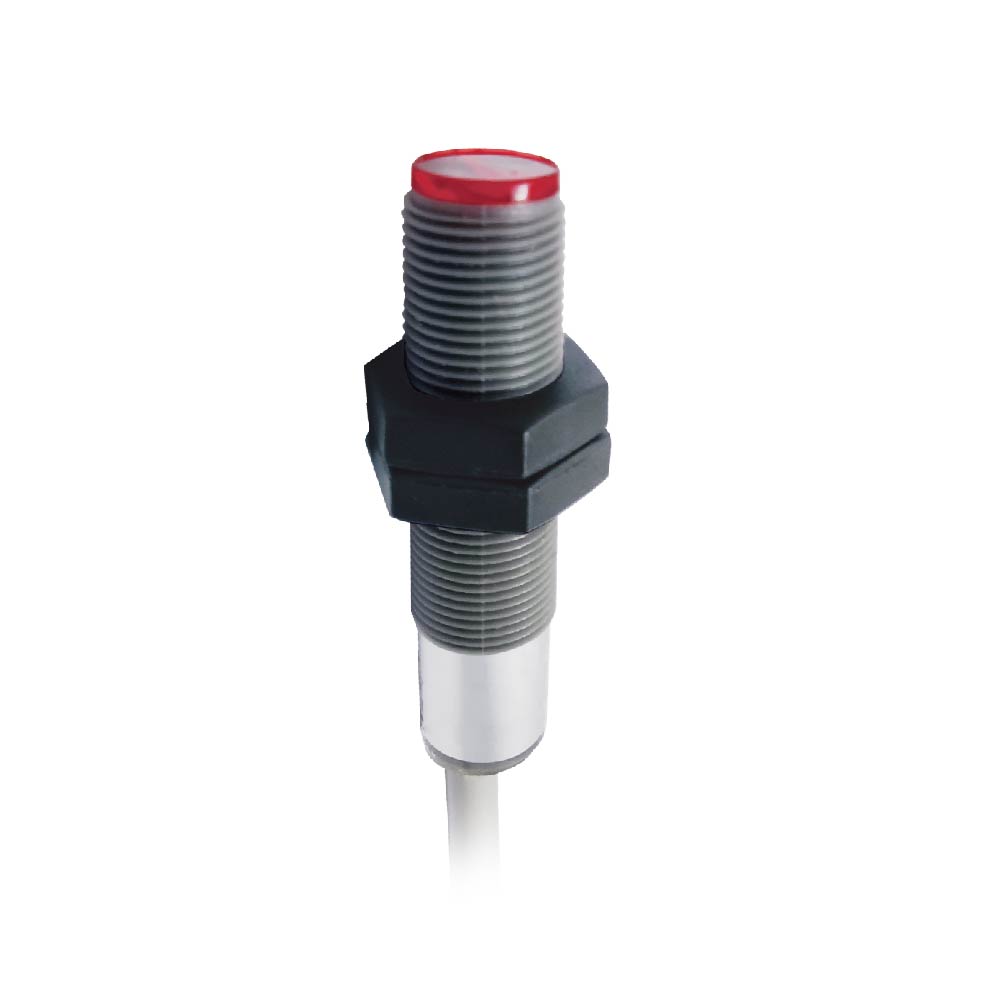

Bedook Mirror-Reflection Photoelectric Sensor M12 0.3-2m DC4 Wire

The Bedook Mirror – Reflection Photoelectric Sensor M12 0.3 – 2m DC4 Wire is a high-quality product. It has a sensing distance of 0.3 – 2m and uses retro-reflective detection method. The operating voltage is 10 – 30VDC.

It is made with PBT and brass (nickel-plated) housing material, ensuring durability. With IP66 ingress protection, it can work in various environments. The light type is infrared light at 880nm, and the response time is less than 2ms, making it highly efficient for detecting objects.

Product Features:

The Bedook Mirror – Reflection Photoelectric Sensor M12 is a remarkable device. It is designed with precision, featuring a 0.3 – 2m sensing distance. This sensor is suitable for a wide range of industrial applications due to its robust construction and advanced technology. The DC4 wire allows for NO + NC double – circuit signal output, enhancing its functionality.

1. Sensing Distance: With a sensing distance of 0.3 – 2m, it can detect objects effectively within this range.
2. Detection Method: The retro – reflective type offers reliable detection.
3. Housing Material: Made of PBT and brass (nickel – plated), it is sturdy and durable.
4. Ingress Protection: IP66 protection makes it suitable for harsh environments.
5. Light Type: Infrared light at 880nm provides stable and accurate sensing.
6. Response Time: Less than 2ms response time enables quick and efficient operation.

Product Parameters:

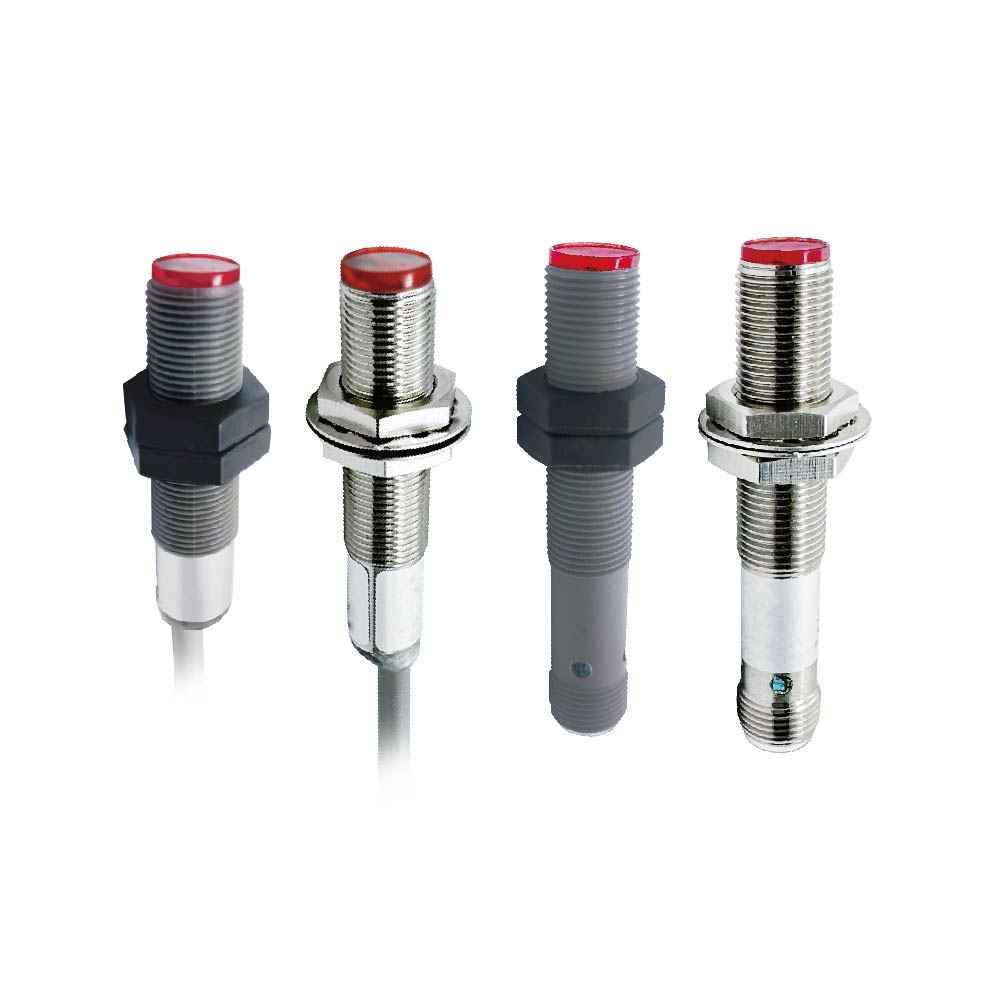

Appearance
Model	NPN Light/Dark-on	FM12-R2N-P31P2	FM12-R2N-C31P2	FM12-R2N-P31S12	FM12-R2N-C31S12
	PNP Light/Dark-on	FM12-R2P-P31P2	FM12-R2P-C31P2	FM12-R2P-P31S12	FM12-R2P-C31S12
Appearance Structure		M12*1mm
Sensing Distance		0.3…2m
Detection method		Retro-reflective type
Switching Frequency		500Hz
Operating voltage		10…30VDC
Light type		Infrareed light 880nm
response time		<2ms
Power-up delay		≤150mA
Adjustment		<300ms
Light immunity		Multi-turn protentiometer
Blind area		<30cm
Light resistance		<5000Lux.
Ambient temperature		-25…55℃
Ambient humidity		35…85%
Housing Material		PBT	Brass, nickel-plated	PBT	Brass, nickel-plated
Ingress protection		IP66
Lens material		PMMA
Operating indicator		Yellow
Connectors		2m PVC Cable, 4*0.25mm²/		M12 Connector
Accessories		FR-D51		B12-4GV2/B12-4WV2/FR-D51

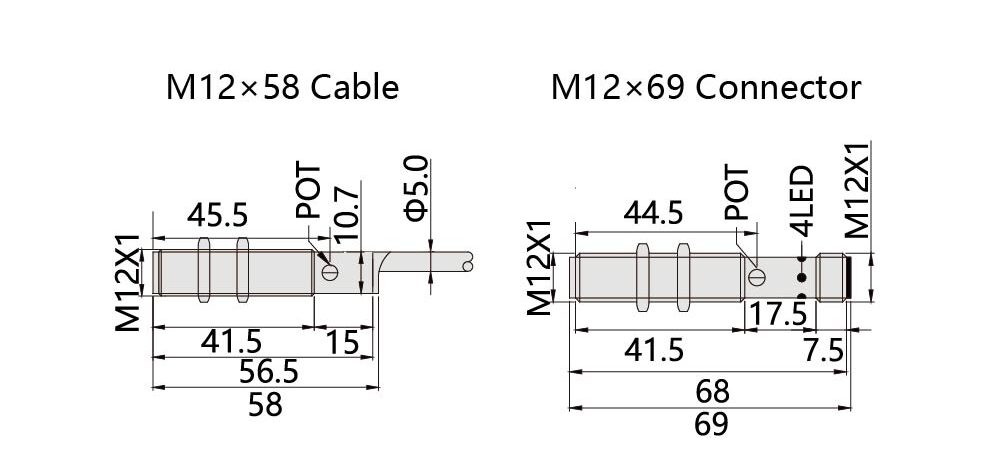

Product Size:

The Bedook Mirror-Reflection Photoelectric Sensor M12 0.3-2m DC4 Wire is ideal for use in manufacturing plants, conveyor systems, and material handling applications. In a manufacturing plant, for example, it can be used to detect the presence or absence of parts on a conveyor belt. Its accurate sensing and quick response time ensure smooth operation of the production line. Compared to similar products, the Bedook sensor offers better durability due to its high – quality housing material and IP66 protection. It also provides more stable and accurate sensing with its infrared light and precise detection method.
