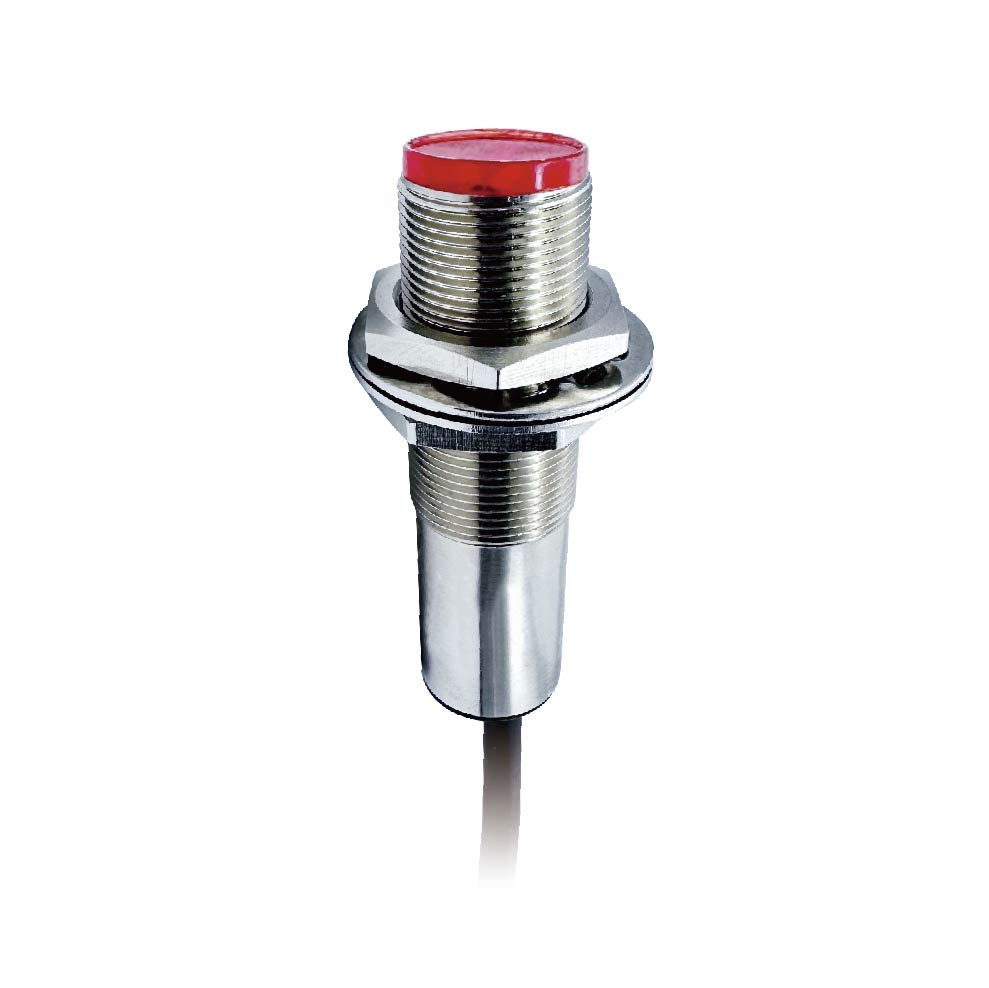

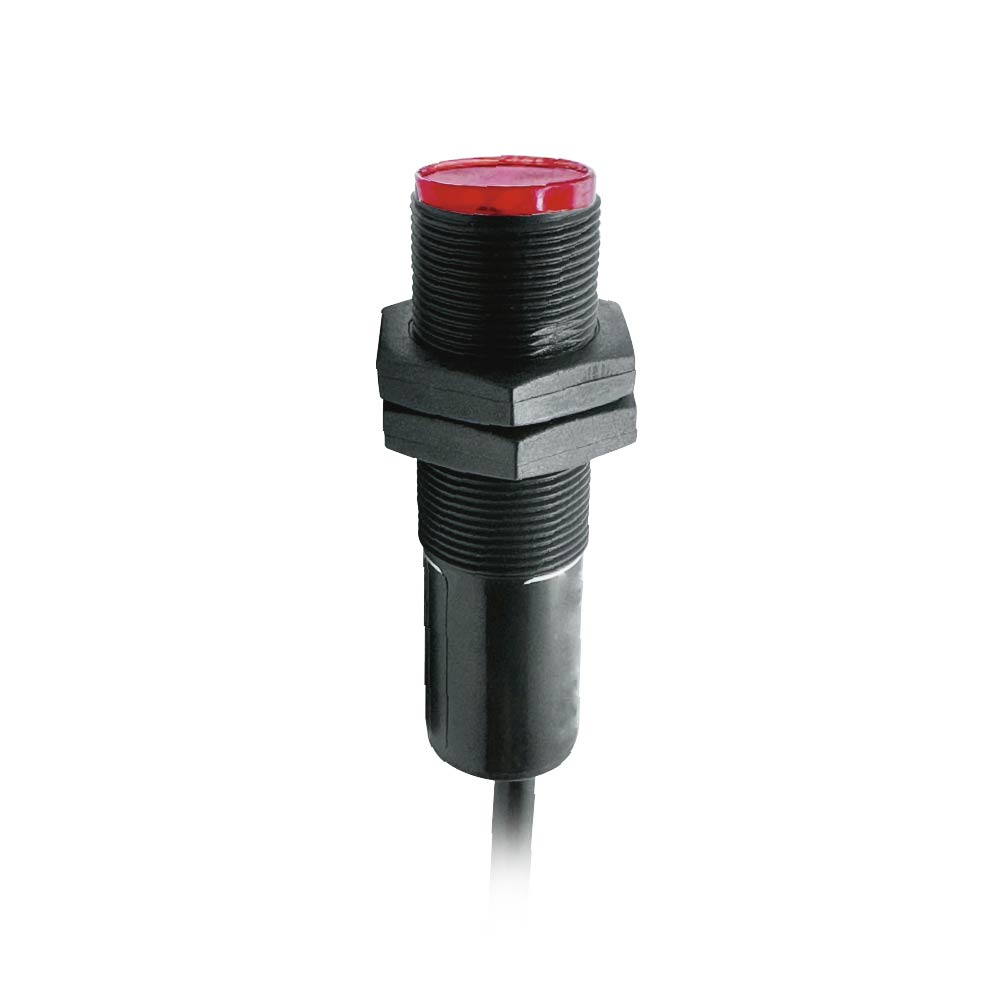

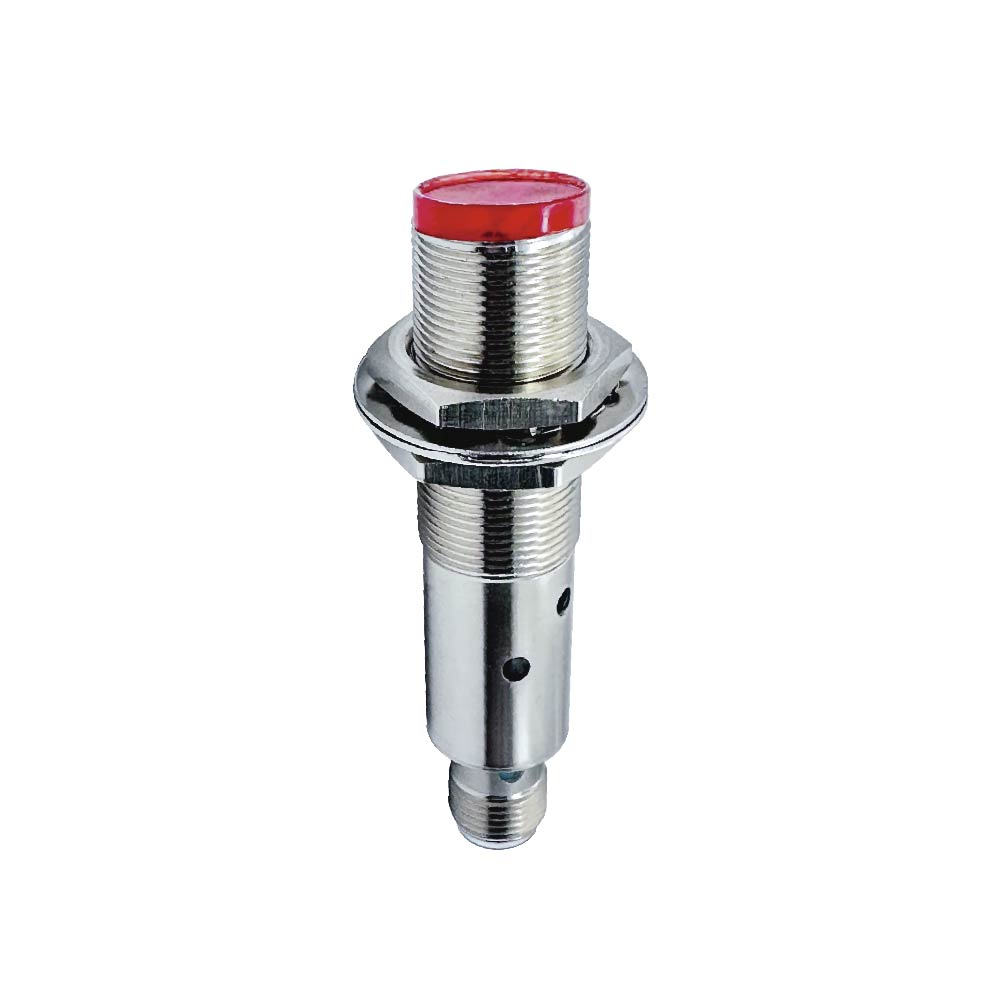

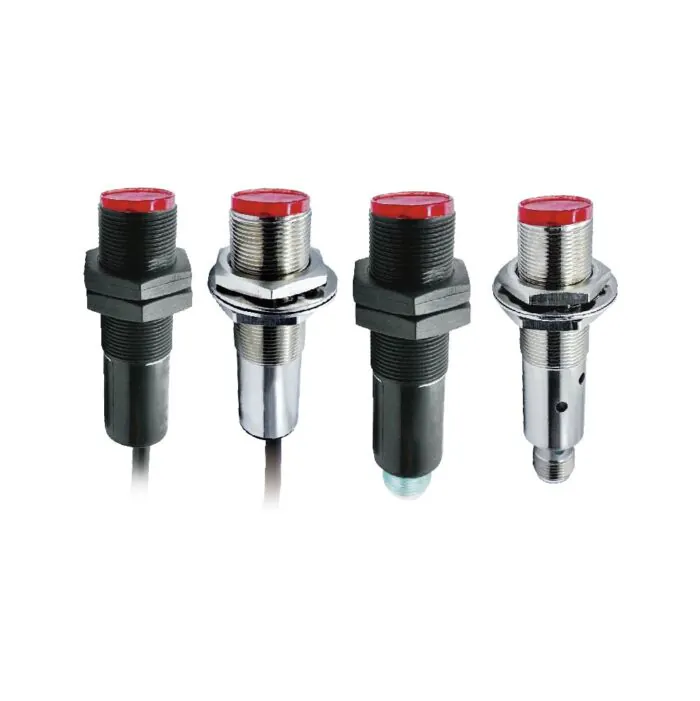

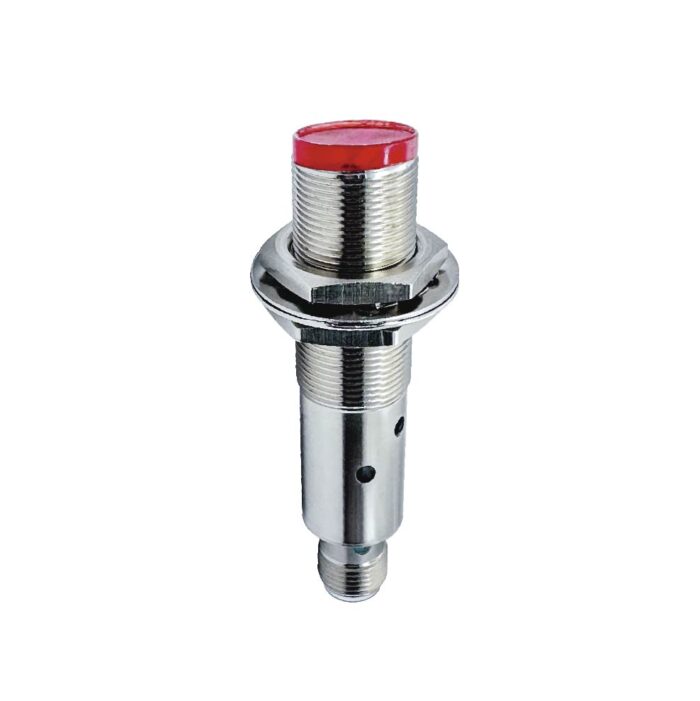

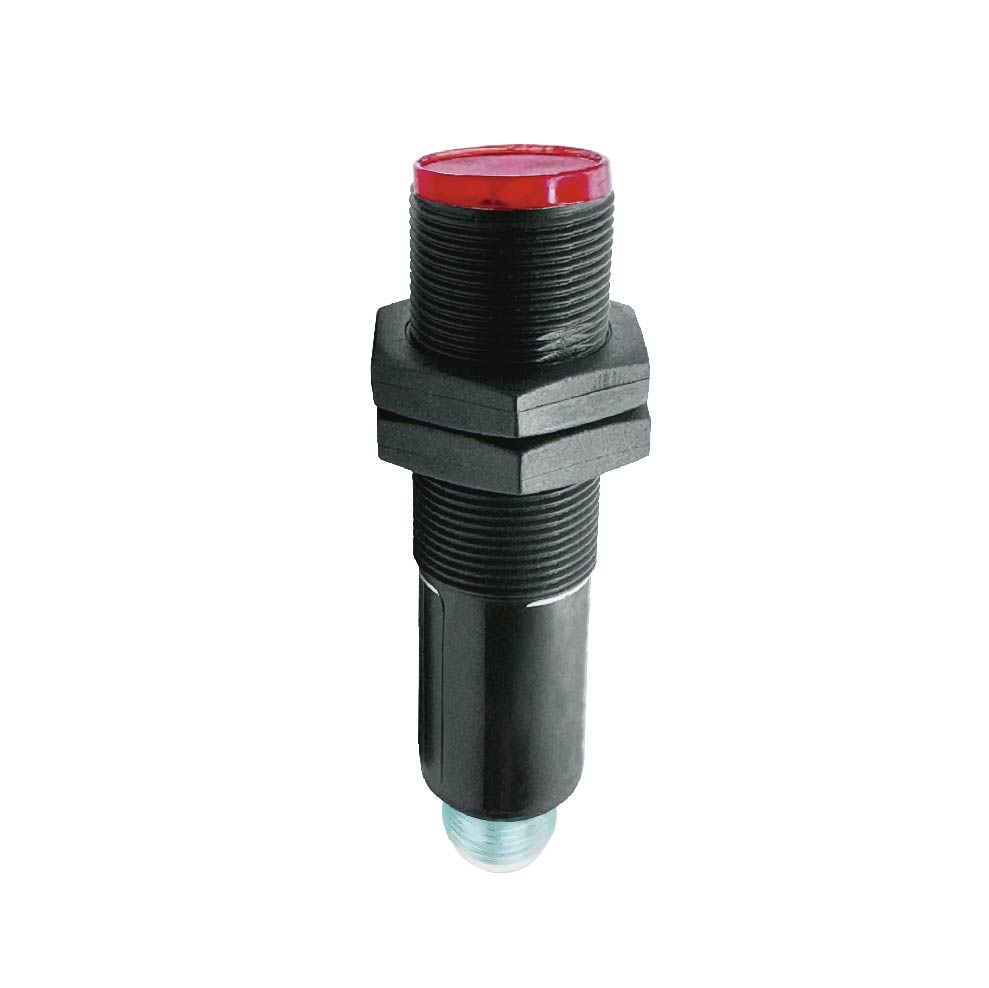

Bedook Mirror-Reflection Photoelectric Sensor M18 0.1-3m DC4 Wire

The Bedook Mirror-Reflection Photoelectric Sensor M18 0.1 – 3m DC4 Wire is an outstanding device in the field of industrial sensing. Its sensing distance ranging from 0.1 – 3m provides a wide and flexible range for detecting objects.

The DC4 wire setup is a significant advantage, enabling the output of both NO (Normally Open) and NC (Normally Closed) signals simultaneously. This enhances the versatility of the sensor, making it suitable for complex industrial control systems.

Product Features:

The Bedook Mirror-Reflection Photoelectric Sensor M18 0.1 – 3m DC4 Wire is a great device. It has a precise sensing distance of 0.1 – 3m. This sensor is applicable to many industrial uses due to its solid structure and advanced technology. The DC4 wire enables NO + NC double – circuit signal output, improving functionality.

1. Sensing Distance: The 0.1 – 3m sensing distance allows for a broad range of applications. Whether it’s detecting small components on a production line or larger objects in a warehouse, this sensor can handle it with precision.
2. Detection Method: The retro-reflective type is highly reliable. It uses infrared light to bounce back from the object being detected, ensuring accurate and consistent sensing.
3. Housing Material: The combination of PBT and brass (nickel – plated) housing material gives the sensor excellent mechanical strength and resistance to wear and tear. This robust construction ensures a long – lasting product, reducing maintenance costs.
4. Ingress Protection: With an IP66 rating, the sensor is protected against dust and powerful water jets. This makes it suitable for use in dirty, wet, or dusty industrial environments where other sensors might fail.
5. Light Type: The infrared light at 880nm is optimized for detection purposes. It provides a stable and focused light beam, ensuring accurate sensing even in challenging lighting conditions.
6. Response Time: A response time of less than 2ms means that the sensor can quickly detect changes in its environment. This rapid reaction is crucial for high – speed production lines and other time – sensitive applications.

Product Parameters:

Appearance
Model	NPN Light/Dark-on	FM18-R3N-P31P2-E	FM18-R3N-C31P2-E	FM18-R3N-P31S12-E	FM18-R3N-C31S12-E
	PNP Light/Dark-on	FM18-R3P-P31P2-E	FM18-R3P-C31P2-E	FM18-R3P-P31S12-E	FM18-R3P-C31S12-E
Appearance Structure		M18*1mm
Sensing Distance		0.1…3m
Detection method		Retro-reflective type
Switching Frequency		500Hz
Operating voltage		10…30VDC
Light type		Infrareed light 880nm
response time		<2ms
Power-up delay		≤200mA
Adjustment		<300ms
Light immunity		Single-turn protentiometer
Blind area		<10cm
Light resistance		<5000Lux.
Ambient temperature		-25…55℃
Ambient humidity		35…85%
Housing Material		PBT	Brass, nickel-plated	PBT	Brass, nickel-plated
Ingress protection		IP66
Lens material		PMMA
Operating indicator		Yellow
Connectors		2m PVC Cable, 4*0.25mm²/		M12 Connector
Accessories		FR-D51		B12-4GV2/B12-4WV2/FR-D51

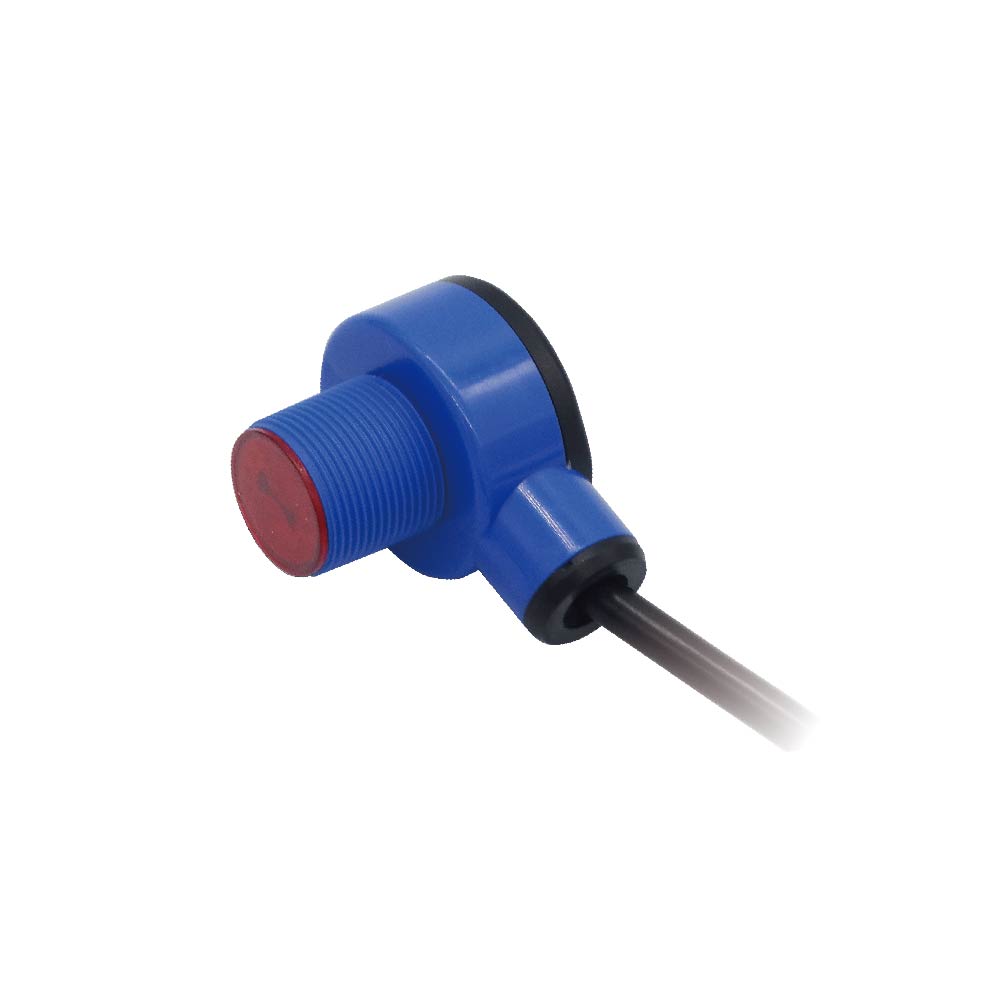

Appearance

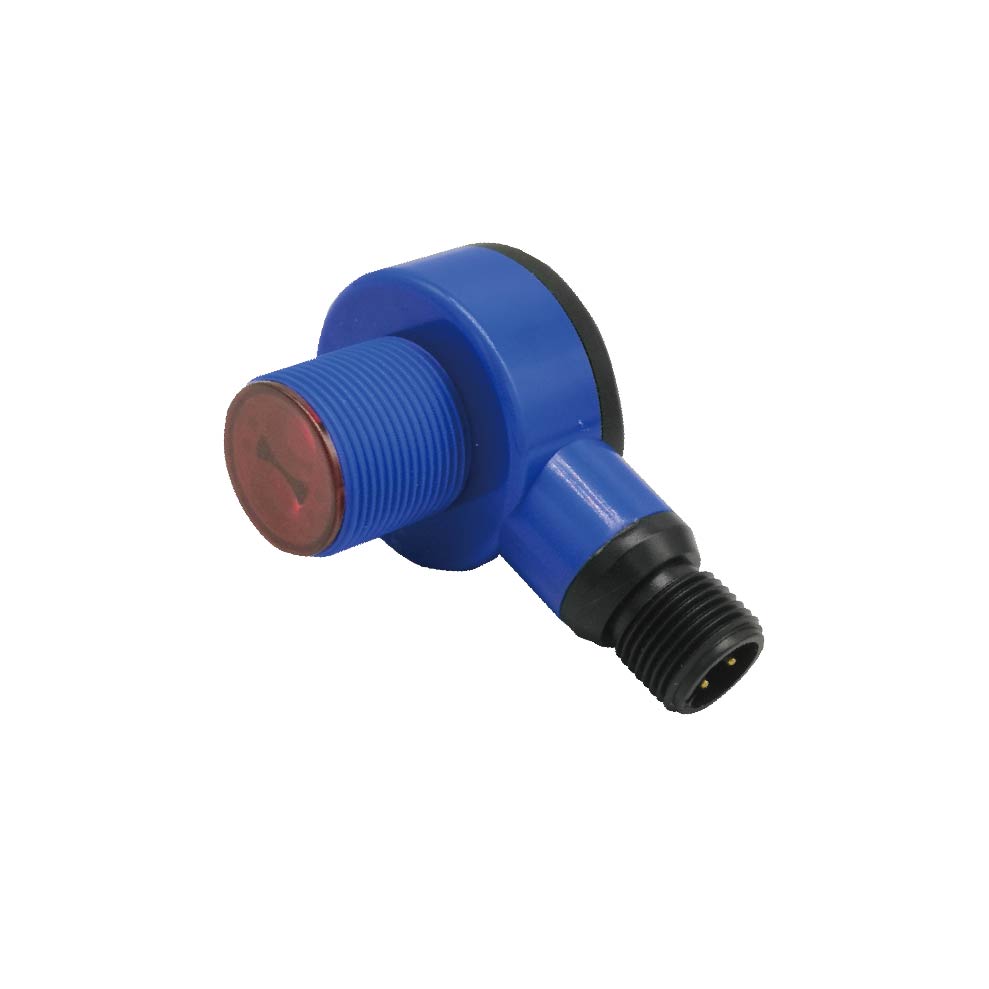

Model	NPN Light/Dark-on	FQ18-R3N-P31P2-E	FQ18-R3N-P31S12-E
	PNP Light/Dark-on	FQ18-R3P-P31P2-E	FQ18-R3P-P31S12-E
Appearance Structure		M18*1mm
Sensing Distance		0.1…3m
Detection method		Retro-reflective type
Switching Frequency		500Hz
Operating voltage		10…30VDC
Light type		Infrareed light 880nm
response time		<2ms
Power-up delay		≤200mA
Adjustment		<300ms
Light immunity		Single-turn protentiometer
Blind area		<10cm
Light resistance		<5000Lux.
Ambient temperature		-25…55℃
Ambient humidity		35…85%
Housing Material		PBT
Ingress protection		IP66
Lens material		PMMA
Operating indicator		Yellow
Connectors		2m PVC Cable, 4*0.25mm²/	M12 Connector
Accessories		FR-D51	B12-4GV2/B12-4WV2/FR-D51

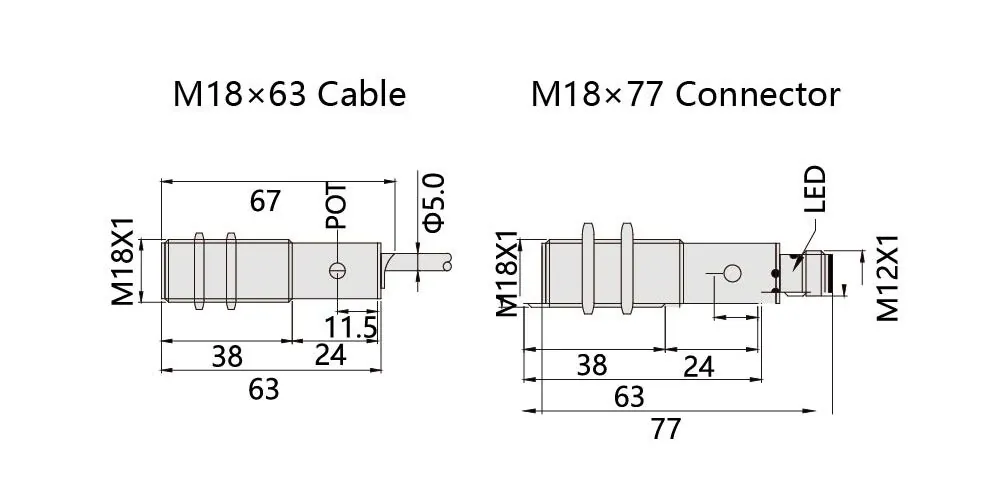

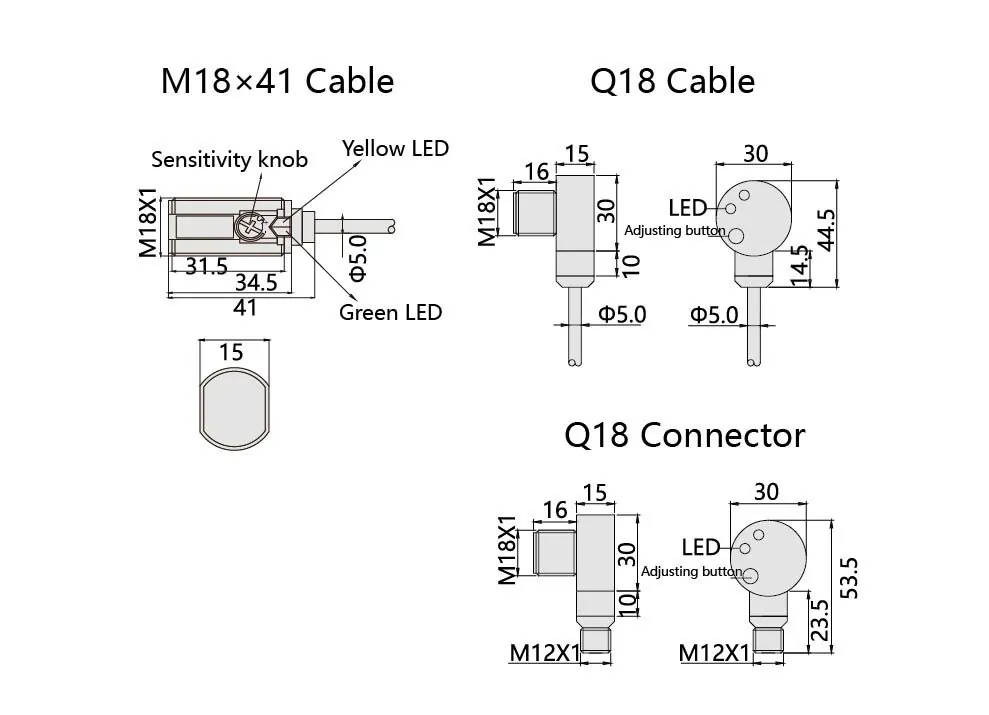

Product Size:

In a packaging plant, the Bedook Mirror-Reflection Photoelectric Sensor M18 0.1-3m DC4 Wire can be used to monitor the presence of products on conveyor belts. Its accurate sensing and quick response time ensure that packages are correctly positioned and counted. In an automotive manufacturing facility, it can be used to detect the presence of parts on assembly lines. Compared to similar products, the Bedook sensor’s robust housing and IP66 protection mean it can withstand the harsh environment of a manufacturing floor, including metal shavings, oil splashes, and dust. Its precise infrared sensing technology also provides a higher level of accuracy, reducing errors and increasing production efficiency.
