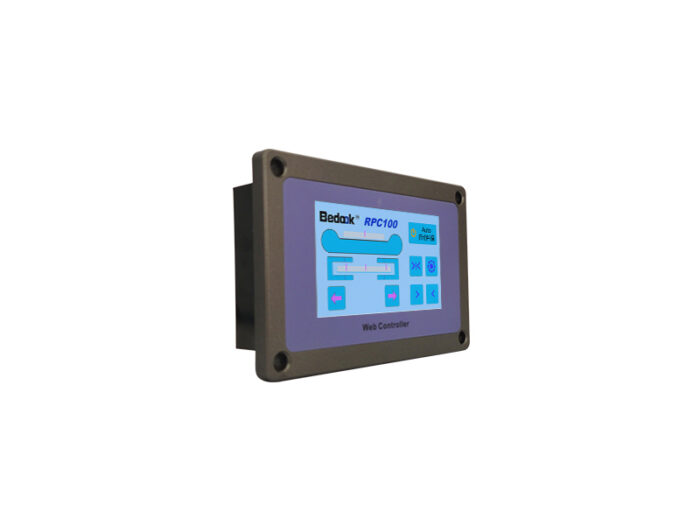

BEDOOK RPC100-A Double Loop Web Guiding Controller (deviation rectifying controller)

BEDOOK RPC100-A Double Loop Web Guiding Controller

Communication protocols: CAN 2.0, Ethernet
Power supply: 24VDC (18VDC~28VDC), 50W
HMI: 4.3″ TFT colorful touch screen
Switching input: 4 channels (24V bidirectional optocoupler isolation)
Switching output: 2 channels (dry contact points)
Drive capability: 2-channel stepper motor signals
Feedback interface: Ethernet (for image recognition systems)
Control channels: Dual-loop web deviation rectification
Protection: Polarity reversal, over-current

Description

The RPC100-A Double Loop Web Guiding Controller from BEDOOK is a cutting-edge solution for advanced web deviation rectification, designed to meet the demands of high-precision industrial applications.

As a dual-loop controller, it integrates CAN 2.0 and Ethernet communication to synchronize web guiding sensors and back-end image recognition systems, ensuring unmatched accuracy in complex web handling processes. BEDOOK’s expertise in automation technology is evident in its ability to manage both primary and secondary control loops, making it an ideal choice for manufacturers requiring multi-layered web alignment, such as in semiconductor packaging or high-speed printing.

Product Features (BEDOOK RPC100-A Double Loop Web Guiding Controller )

Engineered for versatility, the RPC100-A Double Loop Web Guiding Controller stands out for its dual-loop architecture, which combines traditional sensor feedback with real-time data from vision systems. This unique design allows it to correct both lateral deviations and material stretching simultaneously, a capability rare in single-loop competitors.

BEDOOK’s commitment to innovation is further reflected in its 4.3″ TFT touchscreen HMI and modular drive outputs, enabling seamless integration with stepper motors or servo actuators in diverse industrial environments.

  • Dual-Loop Control for Complex Applications: The RPC100-A’s dual-loop system merges CAN2.0 sensor data (e.g., from WS-UT ultrasonic sensors) with Ethernet-based image recognition feedback, providing dual-layer deviation correction. For example, in flexible electronics manufacturing, it can use edge sensors for primary alignment and vision systems to detect pattern registration, ensuring micron-level precision—an advantage over single-loop controllers that lack vision integration.
  • Multi-Protocol Communication: With support for CAN 2.0 and Ethernet, the controller enables real-time data exchange with both industrial sensors and advanced vision systems. This flexibility eliminates the need for protocol converters, a common pain point in multi-vendor setups. Competitors often require separate modules for different protocols, increasing complexity and costs.
  • Stepper Motor Integration: The built-in 2-channel stepper motor drive signals simplify actuator control, reducing the need for external drivers. This integrated design saves space in control panels and minimizes wiring errors, contrasting with controllers that require standalone motor drivers.
  • Enhanced Safety with Isolation: Four channels of 24V bidirectional optocoupler isolation protect the controller from voltage spikes and EMI, ensuring stable operation in noisy environments like metal processing or automotive assembly lines. Unlike non-isolated controllers, the RPC100-A maintains signal integrity even near high-power machinery.
  • Intuitive Dual-Loop HMI: The 4.3″ TFT touchscreen allows operators to monitor dual-loop parameters (e.g., primary deviation vs. secondary stretch) in real time, with customizable dashboards for quick diagnostics. This level of visibility is unmatched in basic single-loop controllers, where users must toggle between menus to access separate control parameters.
  • Future-Proof Ethernet Integration: The Ethernet interface supports advanced features like OPC UA or MQTT for Industry 4.0 compatibility, enabling remote monitoring and predictive maintenance. Competitors’ controllers without native Ethernet often require retrofitting, limiting scalability for smart factory initiatives.

Product Parameters

Model RPC100-A
Rectifying Signal Input CAN2.0 (sensor), Ethernet (vision)
Switching Input 4 channels (24V bidirectional optocoupler)
Switching Output 2 channels (dry contact points)
Drive Capability 2 channels stepper motor signals
HMI 4.3″ TFT touchscreen
Voltage & Power 24VDC (18VDC~28VDC), 50W
Working Environment Temperature: -10℃~60℃
Humidity: <95% (no condensation)

Product Applications

  • Semiconductor Packaging: Dual-loop control ensures precise alignment of ultra-thin PCBs, combining edge guiding with vision-based pattern matching for flip-chip bonding processes.
  • High-Speed Printing: Corrects both web skew and stretch in multi-color presses, using CAN2.0 for sensor feedback and Ethernet for camera-based color registration adjustments.
  • Medical Device Manufacturing: Guides sterile films in surgical pack production, with dual loops ensuring edge precision and material consistency for leak-proof seals.
  • Aerospace Composites: Manages carbon fiber layup by integrating laser sensors (primary loop) and 3D vision systems (secondary loop) to detect and correct both position and tension deviations.
  • Flexible Electronics: Aligns conductive films in roll-to-roll OLED production, where dual-loop control prevents misalignment during deposition and lamination stages.

Product Summary

The RPC100-A Double Loop Web Guiding Controller delivers dual-loop precision via CAN2.0 and Ethernet, ideal for semiconductor, printing, and medical applications. Its integrated stepper drive and isolated inputs ensure reliable, high-accuracy web deviation rectification in complex, multi-stage processes.

With Industry 4.0-ready Ethernet and an intuitive TFT HMI, this controller simplifies dual-loop management in smart factories. BEDOOK’s design prioritizes scalability, making the RPC100-A a future-proof solution for manufacturers seeking to optimize web guiding with vision integration and real-time analytics.
