Bedook Solid State Relay SSR-D

The Bedook Solid State Relay SSR-D is a remarkable offering from the BEDOOK brand. It represents a perfect blend of advanced technology and reliable design. Whether you are involved in industrial automation, electrical control systems, or other fields that require precise DC switching, the SSR-D has the models to meet your specific needs. The six available models allow for easy customization based on the load’s current requirements, ensuring optimal performance in your setup. BEDOOK’s commitment to quality is evident in the construction and performance of the SSR-D, making it a trusted component in many electrical systems.

Product Features (Bedook Solid State Relay SSR-D)

BEDOOK’s Solid State Relay SSR-D is designed with the latest in solid-state relay technology, it offers a more efficient and reliable alternative to traditional relays for DC loads. The SSR – D series is built to withstand harsh operating conditions, as evidenced by its vibration resistance (10 – 55 Hz, double amplitudes for 2 hours at X, Y, Z axis) and impact resistance (1000m/s², impact 3 times at X, Y, Z axis). Its compact design also makes it easy to integrate into various electrical systems, saving valuable space. With the BEDOOK brand’s reputation for excellence, the SSR-D is a product that you can rely on for long-term, trouble-free operation in your DC-based applications.

Diverse Current Ratings: The Bedook Solid State Relay SSR – D offers a wide range of rated load currents, from 10A in the SSR – 10D model to 70A in the SSR – 70D model. This diversity allows customers to select the most appropriate relay for their specific load requirements. For instance, in low-power DC circuits, the SSR-10D can be a perfect fit, while high-power industrial applications may benefit from the SSR-70D. This flexibility gives it an edge over some competitors that may have a more limited current – rating range.

High Peak Current Handling: With peak currents ranging from 160A to 520A (max 8.3ms operating time), the SSR – D can handle sudden surges in current. In applications where motors or other inductive loads are present, these peak currents can occur during startup or when there are changes in the load. The SSR-D’s ability to manage these transient events ensures the stability and longevity of the overall electrical system, which is a significant advantage compared to some similar products with lower peak-current capabilities.

Wide Load Voltage Range: The 24 – 380VAC load voltage range makes the SSR – D compatible with a broad spectrum of electrical systems. It can operate effectively in different voltage environments, whether it’s a low – voltage control circuit or a higher – voltage industrial setup. This wide range of adaptability reduces the need for multiple types of relays for different voltage applications, saving both cost and space for the user.

Fast Response Time: The response time of 1/2 Cycle + 1ms max (‘R’ type ≤1ms) is a key feature of the SSR – D. In applications that require rapid switching, such as in high-speed control systems or in circuits where precise timing is crucial, the fast response ensures that the relay can react promptly to control signals. This quick action can improve the overall efficiency and performance of the system, setting it apart from slower-responding relays in the market.

Excellent Insulation Properties: The SSR-D has an insulation resistance of 500VDC, 100MΩ (between input/output and housing) and a surge-withstanding voltage of 2500VAC (duration 1 minute at 60Hz). These insulation characteristics provide reliable isolation between the input and output, protecting the control circuit from the high-voltage load side. This is especially important in safety-critical applications and in environments where electrical interference may be present, giving it an advantage over relays with inferior insulation.

Durable Construction: Built to last, the SSR – D features a robust design that can withstand vibration (10 – 55 Hz, double amplitudes for 2 hours at X, Y, Z axis) and impact (1000m/s², impact 3 times at X, Y, Z axis). The housing is designed to protect the internal components from external mechanical stress, making it suitable for use in industrial environments where vibrations and impacts are common. This durability ensures a longer service life and reduces the need for frequent replacements, which is a significant cost-saving factor for users compared to less durable alternatives.

Product Parameters

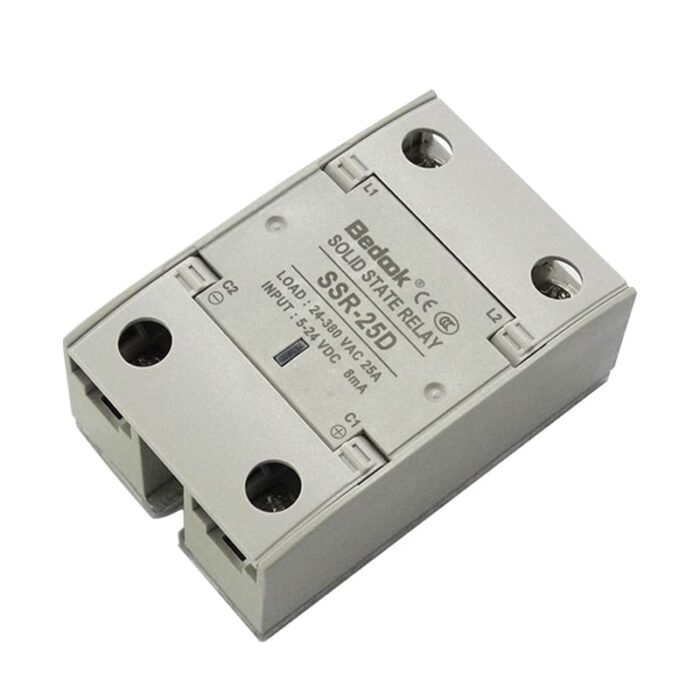

Appearance
Model No		SSR – 10D	SSR – 25D	SSR – 30D	SSR – 40D	SSR – 55D	SSR – 70D
Rated load current		10A	25A	30A	40A	55A	70A
Peak Current (Max 8.3ms,Operating time)		160A	250A	400A	400A	520A	520A
output	Load voltage range	24 – 380 VAC
	Peak voltage(Non – repeating)	1200V
	Frequency	50/60Hz
	Leakage current	≤20mA
	Output ON voltage drop	≤1.6V(R.M.S)
input	Rated voltage	5 – 24 VDC
	Operating voltage range(ON)	4.6 – 32 VDC
	Reset voltage (OFF)	≤3V
	Impedance	≤4 kΩ
	Input current	Forward Current: ≤14mA
Response time		1/2 Cycle + 1ms max (‘R’ type ≤1ms)
Insulation resistance		500VDC, 100MΩ (Between input/output and housing)
Surge – withstanding voltage (uimp)		2500VAC (Duration 1 Minute at 60Hz)
Vibration resistance		10 – 55 Hz, double amplitudes: duration 2 hours at X, Y, Z axis
Impact resistance		1000m/s², Impact 3 times at X, Y, Z axis
Storage temperature		– 30 – 90℃
Ambient temperature		– 30 – 80℃ (No condensation)
Ambient humidity		45 – 85%RH
Pollution grade		Level 2
Application		Resistive load
Standard		CE (EN60947 – 4 – 3)
Net Weight		About 88g

Product Applications

The Bedook Solid State Relay SSR-D is highly suitable for industrial automation applications. In manufacturing plants, it can be used to control DC-powered motors, such as those in conveyor systems, robotic arms, or precision-machining equipment. Its fast response time allows for accurate control of the motor’s speed and direction, improving the overall efficiency of the production process. The high peak-current handling ability ensures that the relay can withstand the sudden current demands during motor startup or when there are changes in the load. Additionally, its excellent insulation properties protect the control system from electrical interference, ensuring stable operation in the often – -noisy industrial environment.

Another area where the SSR-D shines is in electrical control systems for renewable energy sources. For example, in solar power systems with DC-based components, the SSR-D can be used to control the flow of electricity between different parts of the system, such as in battery-charging circuits or in the connection between solar panels and inverters. Its wide load voltage range and reliable performance make it an ideal choice for ensuring the smooth operation of these renewable energy systems, contributing to the overall efficiency and reliability of power generation and distribution.

BEDOOK’s Solid State Relay SSR – D is a game-changer in the world of solid-state relays for DC loads. It offers a combination of advanced features and robust design. The diverse current ratings, along with the ability to handle high peak currents, make it suitable for both low-power and high-power applications. Its wide load voltage range provides flexibility in different electrical setups. The fast response time and reliable insulation are bonuses, ensuring efficient and safe operation. In applications where durability and performance are key, such as in industrial or renewable energy settings, the Bedook Solid State Relay SSR-D is a product that you can count on.
