Bedook Solid State Relay SSR-LA

The Bedook Solid State Relay SSR-LA is a remarkable product in the realm of solid-state relays. BEDOOK, a well-known brand, has designed the SSR – LA series with precision and expertise. For overseas customers seeking reliable and high-performance solid-state relays for their electrical systems, the SSR-LA is an excellent choice. Whether it’s for industrial control applications or in commercial electrical setups, the three models of the SSR-LA can meet different current and voltage requirements. The phase control feature of the SSR-LA is a key highlight, allowing for more accurate regulation of electrical power. BEDOOK’s commitment to quality is evident in the selection of high-grade materials and strict manufacturing standards, ensuring that the SSR-LA can perform stably in various environments.

Product Features (Bedook Solid State Relay SSR-LA)

BEDOOK’s Solid State Relay SSR-LA stands out for its advanced features and robust construction. It is specifically engineered to provide efficient and stable electrical switching in AC-based systems. The SSR-LA series is not only about high performance but also about reliability. The use of fire-proof ABS (UL94V0) as the housing material ensures safety in case of any electrical malfunctions. With its wide range of current-handling capabilities and high surge-withstanding values, the SSR-LA can handle the rigors of demanding electrical applications. Whether it’s for controlling motors, heaters, or other electrical loads, the SSR-LA from BEDOOK offers a reliable and long-lasting solution.

1. Diverse Rated Current Options: The Bedook Solid State Relay SSR – LA offers three models with different rated current capabilities, from 10A max in SSR – 10LA to 40A max in SSR – 40LA. This allows customers to choose the most suitable relay according to their specific load requirements. In comparison to some single-rated – current competitors, the SSR-LA provides greater flexibility in application. For example, in a small-scale electrical device with a light load, the SSR – 10LA can be used, while for larger industrial equipment, the SSR – 40LA can handle the higher current demands.
2. High Surge – withstanding Capabilities: The SSR – LA models have significant surge-withstanding current values, ranging from 135A in SSR – 10LA to 410A in SSR – 40LA. This feature is crucial in electrical systems where sudden surges may occur due to motor starting, power grid fluctuations, or other reasons. The ability to withstand these surges without failure ensures the stability and longevity of the overall system, giving it an edge over relays with lower surge-withstanding capacities.
3. Precise Phase Control: The phase control mode of the SSR-LA is a unique and valuable feature. It enables more accurate control over the electrical output, which is beneficial in applications such as dimming lights, controlling the speed of AC motors, or regulating the power input to heaters. Many similar products may lack this precise control feature, making the SSR – LA a more attractive option for applications that require fine-tuning of electrical power.
4. Low Leakage Current: With a leakage current of at most 0.5% of the full load, the SSR – LA is highly efficient. Low leakage current means less power loss, which is not only energy – saving but also helps to maintain the stability of the electrical system. In comparison to some relays with higher leakage currents, the SSR – LA is more reliable and cost – effective in the long run.
5. Fast Response Time: The maximum response time of 1.0ms for all SSR – LA models ensures quick switching actions. In applications that require rapid response, such as in automated control systems or high – speed electrical circuits, this fast response time can significantly improve the overall performance of the system. It allows for more timely control and adjustment of electrical signals, setting it apart from slower – responding relays.
6. Excellent Insulation and Dielectric Strength: The SSR-LA has an insulation strength of 100MΩ/500VDC and a dielectric strength of 4KVrms. These high-level insulation and dielectric properties provide reliable electrical isolation between the input and output. This is essential for safety, especially in high-voltage applications, and also helps to prevent electrical interference, ensuring the stable operation of the relay and the connected electrical equipment.

Product Parameters

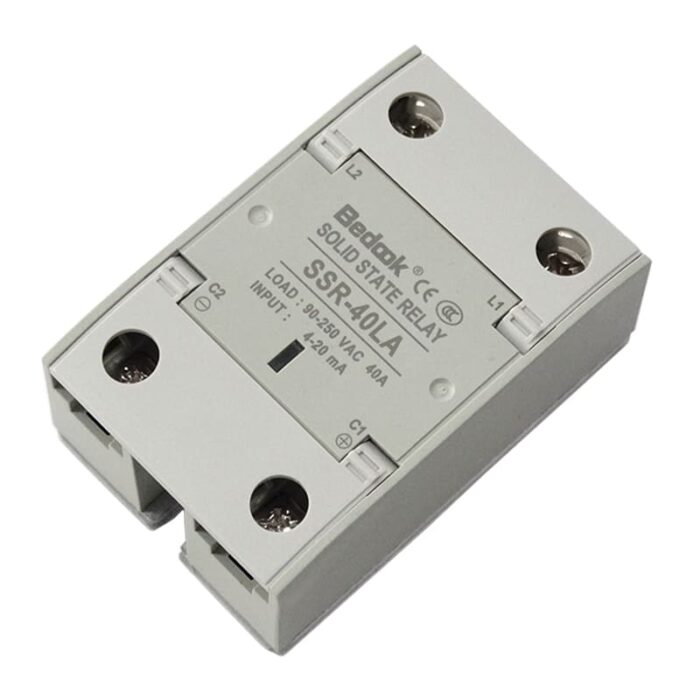

Appearance
Model No	SSR – 10LA	SSR – 25LA	SSR – 40LA
Rated current	10A max	25A max	40A max
Fusing current	144A²S	259A²S	664A²S
Surge – withstanding current	135A	275A	410A
Surge – withstanding voltage	1200VAC min
Output voltage	90 – 250VAC
Input mode	4 – 20mA
Input impedance	About 1.2KΩ
Control mode	Phase control
Leakage current	Max 0.5% of full load
Response time	1.0ms max
Input Surge – withstanding voltage	2KV (EN61000 – 4 – 4)
Dielectric strength	4KVrms(EN60950/VDE0805)
Insulation strength	100MΩ/500VDC(EN60950/VDE0805)
Housing material	Fire – proof ABS(UL94V0)
Working environment	– 40℃ – +80℃; 35 – 85%RH

Product Applications

The Bedook Solid State Relay SSR – LA is highly suitable for industrial motor control applications. In manufacturing plants, AC motors are widely used in various machinery, such as conveyor belts, pumps, and compressors. The SSR-LA’s phase control feature can be used to precisely adjust the speed of these motors, improving the efficiency of the production process. The high surge-withstanding current ensures that the relay can handle the large starting currents of the motors without damage. For example, in a large-scale factory with multiple motors running simultaneously, the SSR-LA can provide stable and reliable control, reducing downtime and maintenance costs.

Another area where the SSR-LA shines is in commercial lighting systems. The phase control mode can be used to dim the lights, providing energy-saving benefits and creating different lighting effects. Whether it’s in a shopping mall, an office building, or a hotel, the SSR-LA can be integrated into the lighting control system to achieve precise control over the lighting levels. The low leakage current and fast response time also contribute to the overall performance and reliability of the lighting system, ensuring a stable and consistent lighting experience for customers.

BEDOOK’s Solid State Relay SSR-LA is a high-quality solid-state relay designed for AC-based applications. It combines advanced features such as phase control, high dielectric strength, and a fast response time. The ability to handle different levels of current and voltage, along with its robust construction, makes it stand out in the market. In applications where reliability, efficiency, and precise control are crucial, such as in industrial and commercial electrical systems, the Bedook Solid State Relay SSR – LA is a product that can be trusted to deliver optimal performance.
