Bedook Solid State Relay SSR-VA

The Bedook Solid State Relay SSR-VA is a remarkable innovation in the field of solid-state relays. BEDOOK, a brand renowned for its commitment to quality and technological advancement, has engineered the SSR – VA series to meet the diverse needs of overseas customers in the electrical industry. Whether you are involved in industrial automation, power distribution, or commercial electrical applications, the SSR-VA provides a reliable and efficient solution. The three models offer flexibility in choosing the right current handling capacity for your specific requirements. With its advanced phase-control feature, the SSR-VA allows for more accurate control over electrical power, making it a valuable asset in various electrical systems. BEDOOK’s strict quality-control measures ensure that each SSR – VA relay is built to last and perform consistently in different environmental conditions.

Product Features (Bedook Solid State Relay SSR-VA)

BEDOOK’s Solid State Relay SSR-VA stands out for its exceptional features and robust construction. Designed for AC-based applications, it offers a superior alternative to traditional electromechanical relays. The SSR-VA series combines high-performance components with intelligent design to deliver reliable and stable operation. The use of fire-proof ABS (UL94V0) as the housing material not only ensures safety but also protects against harsh environmental factors. The wide range of input resistances and the variable-resistor input voltage design make the SSR-VA adaptable to different power-supply scenarios. Whether it’s for controlling motors, lighting systems, or other AC-powered equipment, the Bedook Solid State Relay SSR – VA is engineered to meet the challenges of modern electrical applications with ease.

• Variable Rated Currents for Diverse Applications:The Bedook Solid State Relay SSR – VA comes in three models with different rated current capabilities, from 10A max in SSR – 10VA to 40A max in SSR – 40VA. This variety allows customers to select the most appropriate relay according to the load requirements of their electrical systems. In contrast to some competitors that offer only a limited range of current ratings, the SSR-VA provides greater flexibility. For instance, in a small-scale electrical device such as a household appliance, the SSR – 10VA can be a perfect fit, while for larger industrial machinery, the SSR – 40VA can handle the higher current demands, ensuring optimal performance and efficiency.
• High Surge-withstanding Capacity:The SSR – VA models exhibit impressive surge-withstanding current values, ranging from 135A in SSR – 10VA to 410A in SSR – 40VA, along with a minimum surge-withstanding voltage of 1200VAC. This feature is crucial in electrical systems where sudden voltage and current surges are common, such as during power-grid fluctuations, motor starting, or lightning strikes. The ability to withstand these surges without failure safeguards the relay and the connected equipment, enhancing the overall reliability and longevity of the electrical system. Compared to many similar products with lower surge-withstanding capabilities, the SSR-VA offers superior protection and stability.
• Precise Phasecontrol Function:The phase-control mode of the SSR-VA is a key differentiator. It enables users to have precise control over the electrical output, which is highly beneficial in applications such as speed regulation of AC motors, dimming of lighting systems, and power control of heating elements. By adjusting the phase of the electrical signal, the SSR-VA can achieve smooth and accurate power regulation, optimizing the performance of the connected devices. Many competing relays lack this level of precision in control, making the SSR-VA a preferred choice for applications that demand fine-tuning of electrical power.
• Wide Input – voltage Adaptability:The SSR – VA features a variable-resistor input voltage design with different input resistances (250KΩ/110VAC, 500KΩ/220VAC, 1MΩ/380VAC) and a minimum VR power of 1/4 W. This design allows the relay to adapt to a wide range of input – voltage sources, providing flexibility in system integration. It can be easily incorporated into various electrical setups with different power-supply specifications, reducing the need for additional voltage-conversion components. This adaptability gives the SSR-VA an edge over relays with more restricted input-voltage requirements, making it a versatile option for different electrical applications.
• Fast Response Time:All models of the SSR-VA have a maximum response time of 1.0ms, ensuring rapid switching actions. In modern electrical systems, especially those with automated control and high-speed operation requirements, a fast response time is essential. Whether it’s for quick-acting protective circuits or high-frequency switching applications, the SSR-VA can respond promptly to control signals, enabling seamless operation and improved system performance. This fast-response characteristic sets it apart from slower-responding relays in the market.
• Excellent Insulation and Dielectric Strength:The SSR-VA has an insulation strength of 100MΩ/500VDC and a dielectric strength of 4 KVrms. These high-quality insulation and dielectric properties ensure reliable electrical isolation between the input and output, protecting the control circuit from high-voltage surges and electrical interference. This is of utmost importance in terms of safety, especially in high-voltage applications, and also contributes to the stable operation of the relay and the entire electrical system. Compared to relays with lower insulation and dielectric strength, the SSR-VA offers enhanced protection and reliability.

Product Parameters

Appearance

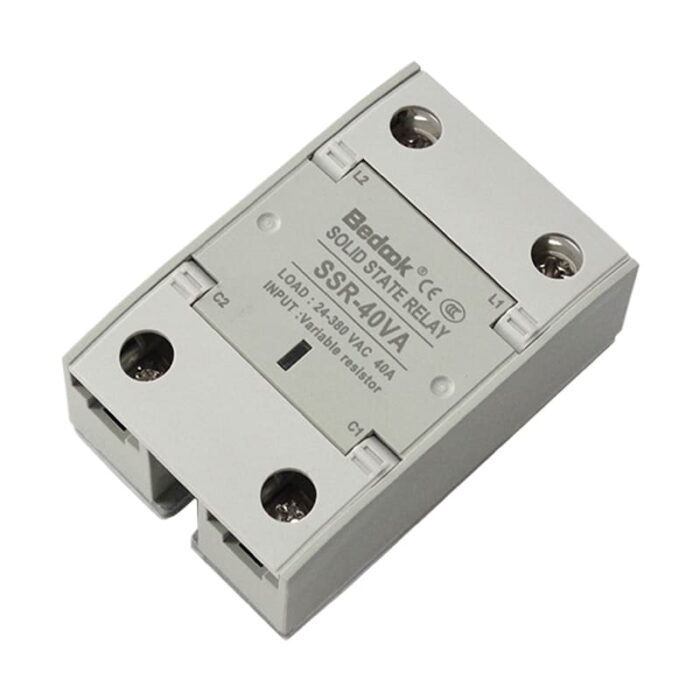

Model No	SSR – 10VA	SSR – 25VA	SSR – 40VA
Rated current	10A max	25A max	40A max
Fusing current	144A²S	259A²S	664A²S
Surge – withstanding current	135A	275A	410A
Surge – withstanding voltage	1200VAC min
Output voltage	24 – 380VAC
Input voltage	Variable resistor
Input resistance	250KΩ/110VAC; 500KΩ/220VAC; 1MΩ/380VAC
VR power	1/4 W min
Control mode	Phase control
Leakage current	5.0mA max
Response time	1.0ms max
Input Surge – withstanding voltage	2KV (EN61000 – 4 – 4)
Dielectric strength	4 KVrms(EN60950/VDE0805)
Insulation strength	100MΩ/500VDC(EN60950/VDE0805)
Housing material	Fireproof ABS(UL94V0)
Working environment	– 40℃ – +80℃; 35 – 85%RH

Product Applications

The Bedook Solid State Relay SSR – VA is highly suitable for industrial motor-control applications. In manufacturing plants, AC motors are widely used in conveyor systems, pumps, fans, and other machinery. The SSR-VA’s phase-control feature can be utilized to precisely adjust the speed of these motors according to the production requirements. For example, in a food-processing factory, the speed of conveyor belts needs to be adjusted to match the production line’s pace. The SSR-VA can achieve this with high precision, improving production efficiency and product quality. Additionally, its high surge-withstanding capacity can handle the large starting currents of motors, ensuring stable operation even in the face of sudden electrical demands.

Another significant application area for the SSR-VA is in commercial lighting systems. In shopping malls, offices, and hotels, lighting control is crucial for energy conservation and creating the right ambiance. The phase-control mode of the SSR-VA can be used to dim the lights smoothly, reducing energy consumption without sacrificing light quality. For instance, in an office building, the lighting can be adjusted according to the natural light levels and the time of day. The SSR-VA’s fast response time also allows for quick switching of lighting circuits, enabling features such as emergency lighting activation. Its wide input-voltage adaptability makes it easy to integrate into different lighting-control systems, making it a popular choice for commercial lighting applications.
