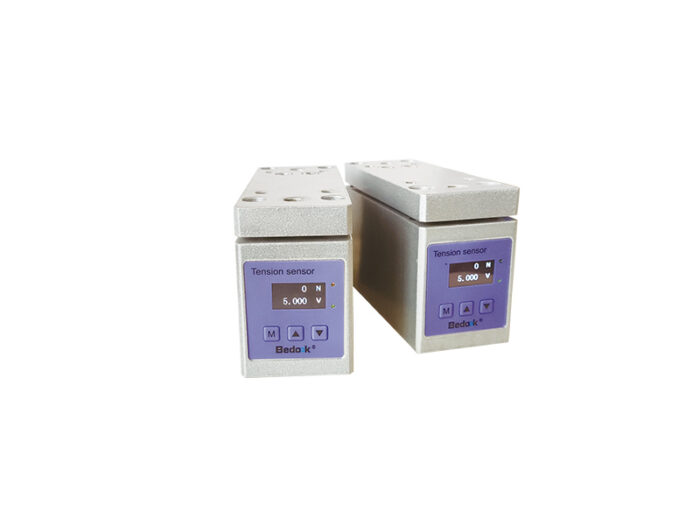

BEDOOK TSRI Series Pillow Block Web Tension Sensor(vertical mounting)

BEDOOK TSRI Series Pillow Block Web Tension Sensor

Measuring principle: Strain gauge full-bridge
Output: 0 – 20mA/0 – 10V/0 – 5V
Accuracy: 0.3%
Operating voltage: 24VDC
Safety load: 120%
Measurement range: 10 – 100 kg
Interface: Plug-in terminal

Description

The BEDOOK TSRI Series Pillow Block Web Tension Sensor is a cutting-edge product from BEDOOK, a leading force in the sensor industry. With a focus on innovation and quality, BEDOOK has crafted this series to address the complex web tension measurement needs across diverse industries. It’s a reliable and efficient solution for any operation that requires precise tension control.

Product Features (BEDOOK TSRI Series Pillow Block Web Tension Sensor(vertical mounting))

As an integral part of BEDOOK’s extensive sensor lineup, the TSRI series is designed for seamless integration into modern industrial setups. Its modular nature allows for easy connection with other components in a web tension control system, enhancing the overall functionality and productivity of production lines.

  • Precision Engineering: The strain gauge full-bridge measuring principle employed in the TSRI series ensures remarkable accuracy. Many competing sensors struggle to match their 0.3% precision, which is vital for industries where even minor tension variances can cause product flaws. In the printing industry, for instance, this high accuracy guarantees consistent print quality.
  • Versatile Output Options: Offering multiple analogue output choices (0 – 20mA/0 – 10V/0 – 5V), the TSRI series provides unparalleled flexibility. This enables it to interface with a wide range of control systems, from basic PLCs to advanced automation platforms. In contrast, some rival sensors have limited output options, restricting their usability.
  • User-Centric Design: The built-in OLED screen and buttons simplify setup and calibration processes. Operators can quickly configure the sensor without the need for external, complex equipment. This user-friendly design is a significant advantage over competitors that require elaborate setup procedures.
  • Stable Performance: Operating at 24VDC, the TSRI series is resilient to voltage fluctuations commonly found in industrial settings. While other sensors may falter under such conditions, the TSRI series maintains stable operation, ensuring continuous and accurate tension measurement.
  • Safety-First Approach: With a safety load of 120%, the TSRI series offers an added layer of protection. In industrial applications, unforeseen overloads can occur, and the sensor’s ability to withstand them reduces the risk of damage and costly downtime.
  • Broad Measurement Range: Covering a measurement span from 10 kg to 100 kg, the TSRI series caters to a wide array of applications. Whether it’s a small – scale operation dealing with low – tension materials or a large – scale industrial process handling high – tension loads, this series has a suitable model.

Product Parameters

Model Range (kg) Output Interface Accuracy Operating Voltage Safety Load
TSRI – 010A – T 10 0 – 20mA Plug-in terminal 0.30% 24VDC 120%
TSRI – 020A – T 20
TSRI – 050A – T 50
TSRI – 100A – T 100
TSRI – 010V – T 10 0 – 5V or 0 – 10V (parameter control)
TSRI – 020V – T 20
TSRI – 050V – T 50
TSRI – 100V – T 100

Note: It will output a voltage or current signal that is linearly related to the measured tension force values, and transfer them to the PLC.

Product Applications

The BEDOOK TSRI Series Pillow Block Web Tension Sensor excels in performance. Its strain gauge full-bridge technology delivers 0.3% accuracy. The multiple output options make it adaptable to different control systems.

With a built-in OLED screen for easy setup and a 120% safety load, it can operate stably in industrial environments. The 10 – 100 kg measurement range suits various applications, ensuring high-quality production in industries such as packaging, printing, and textiles.

In the packaging industry, the BEDOOK TSRI Series Pillow Block Web Tension Sensor is invaluable. When manufacturing packaging materials like flexible films or cardboard boxes, maintaining consistent web tension is crucial.

The sensor’s high-precision measurement capabilities ensure that the packaging materials are of uniform quality, free from wrinkles or tears. Its versatile output options allow for easy integration with packaging machinery control systems. Compared to some competitors, the user-friendly interface of the TSRI series enables operators to quickly adjust settings during production changes.

Additionally, the wide measurement range can accommodate different packaging materials with varying tension requirements, enhancing the overall efficiency of the packaging process.

Product Summary

The BEDOOK TSRI Series Pillow Block Web Tension Sensor stands out for its compatibility and ease of use. Its multiple analogue output options make it highly adaptable to different control systems. The built-in OLED screen and buttons simplify parameter adjustment. This user-friendly design reduces the learning curve for operators. Moreover, its wide measurement range and high-precision measurement capabilities make it a reliable choice for industries that require accurate web tension control, enhancing production efficiency.
