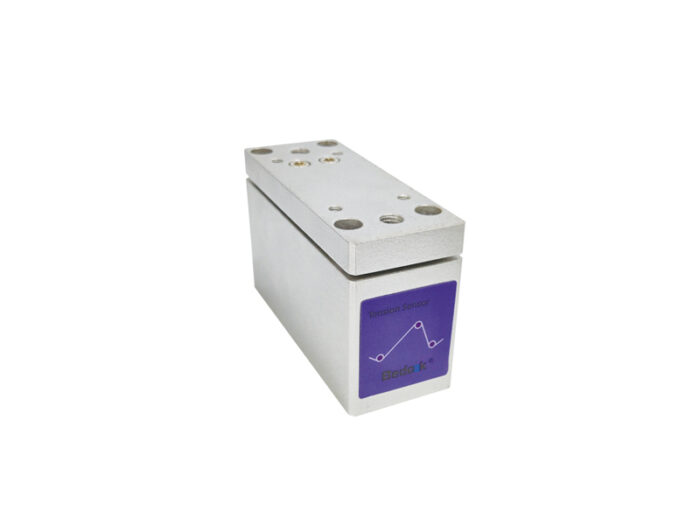

Bedook TSRN Pillow Block Web Tension Sensor(vertical mounting)

The Bedook TSRN Pillow Block Web Tension Sensor(vertical mounting) is a key offering from Bedook, a leading high-tech enterprise in sensor technology. Engineered with precision, it is designed to meet the complex requirements of web tension measurement in modern industries.

Product Features (Bedook TSRN Pillow Block Web Tension Sensor(vertical mounting))

As part of Bedook’s extensive web tension sensor range, this vertical mounting sensor is built for seamless integration into various tension control systems. Its modular design allows for easy adaptation to different production setups, enhancing production efficiency.

• High-Precision Measurement: With a 0.3% accuracy rate achieved through the strain gauge full-bridge measuring principle, it outperforms many competitors. Some similar sensors may have an accuracy of only 0.5% or less, which can lead to significant measurement errors and affect product quality.
• Advanced Signal Processing: The built – in weak signal processing circuit and 32 – digit high – performance MCU enable rapid and accurate signal processing. This ensures real – time response to web tension changes, while some competing products may experience delays in signal processing and tension adjustment.
• Flexible Connectivity: Offering CAN-Bus signal output with RJ45 or flight plug interface options, it can be easily connected to different control systems. In contrast, many other sensors only provide a single output interface, limiting their compatibility.
• Wide Measurement Range: Covering measurement ranges from 10 kg to 100 kg, it can serve diverse applications. Whether for small – scale production with low – tension requirements or large – scale industrial operations dealing with high – tension materials, it can provide accurate measurements.
• Superior Anti – interference: In electromagnetic – interference – prone industrial environments, the TSRN sensor’s high anti – interference ability ensures stable operation and accurate readings. Some competing sensors are more vulnerable to interference, resulting in inaccurate data and production disruptions.
• Safety-Oriented Design: With a safety load of 120%, the sensor can withstand a certain degree of overload without damage, ensuring long-term reliability during operation.

Tips：

• Work together with the TAP series tension transducer to compose a multi-channel tension measuring system.
• Work together with the ETG or ETC series tension controller to compose a multi-channel magnetic particle brake/clutch tension control system.
• Work together with the MTC series tension controller to compose a multi-channel servo motor tension control system.
• Work together with the E series or T series controller to compose an integrated web tension control and web guiding system

Product Parameters

Product Applications

In the printing industry, maintaining consistent web tension is crucial for high-quality printing. The Bedook TSRN Pillow Block Web Tension Sensor(vertical mounting) can accurately monitor and adjust the tension when printing on different materials such as paper, plastic, or fabric. Compared to other sensors, its high accuracy and wide measurement range can adapt to various printing speeds and material thicknesses.

For example, in the production of high-end packaging with complex designs, the TSRN sensor can ensure that the printing is sharp and the colors are accurate by keeping the web tension stable. In the textile industry, during the weaving process, the sensor can prevent fabric defects caused by uneven tension.

Its real-time response and anti – anti-interference capabilities are particularly useful in the noisy and dynamic textile production environment, which is an advantage over sensors with slower response times and lower anti – anti-interference performance.

Product Summary

The Bedook TSRN Pillow Block Web Tension Sensor(vertical mounting) is highly functional. It uses advanced strain gauge technology for precise tension measurement. The CAN-Bus output and multiple interface options make it adaptable to different control systems. With a wide measurement range and high accuracy, it can effectively meet the needs of industries such as packaging, printing, and textiles, ensuring smooth production processes.
