Bedook Ultrasonic Distance Sensor Cube Switch Output – UQ31

Bedook Ultrasonic Distance Sensor Cube Switch Output – UQ31,  Is a compact, cube-shaped device with a 10-100mm sensing range.

It features DC4 switch output, NPN/PNP options, and IP65 protection making it ideal for a wide range of automation applications.

Product Features:

The Bedook UQ31 ultrasonic distance sensor is a compact, cube-shaped device with a 10-100mm sensing range. It features DC4 switch output, NPN/PNP options, and IP65 protection making it ideal for a wide range of automation applications.

• Precise Sensing: The sensor provides accurate distance measurements within a range of 10 to 100mm, making it suitable for a variety of applications.
• Versatile Output: The UQ31 offers both NPN and PNP switch output options, allowing for seamless integration with various control systems.
• Adjustable Sensing Range: The sensor’s adjustment range allows you to customize the sensing zone from 30 to 100mm, ensuring optimal performance for your specific application.
• IP65 Protection: The UQ31 is IP65 rated, making it resistant to dust and water ingress, ideal for challenging environments.
• Durable Construction: The sensor features a robust PC housing, ensuring long-term reliability and resistance to wear and tear.
• Wide Operating Voltage: The UQ31 operates on a wide voltage range of 10 to 30V DC, providing compatibility with various power sources.

Appearance
Model	NPN N.O	UM18-T10N-C31S12-X
	PNP N.O	UM18-T10P-C31S12-X
Dimensions		31*23*12mm
Sensing Distance		10…100mm
Adjustment range		30…100mm
Blind zone		0…10mm
Standard test substance		20*20mm
Transducer frequency		400K
Power-on delay		≤50ms
Yellow LED		switch status/flicker:Teach model
Red LED		power indicator
Operating voltage		10…30V DC ripple 10%ss;12…20v sensitive drops to 90%
No load current		≤20mA
Power-up delay		≤150ms
Output type		Switch output NPN/PNP, NO
Rated working current		200mA
Short Circuit/overload protection		No
Voltage drop		≤2V
Repeatability		±1mm
Switching frequency		10Hz
Range hysteresis		2.5mm
Input type		1 teach-in input
Level		Low Level: 0-0.7V (Teaching Mode Activated)
		High Level: +V or Open Circuit Input (Teaching Mode Deactivated)
Input impedance		16kΩ
Range lag		≥3s
Ambient temperature		-10…50℃
Storage temperature		-40…85℃
connection method		M8 connector
Ingress protection		IP65
Housing Material		PC

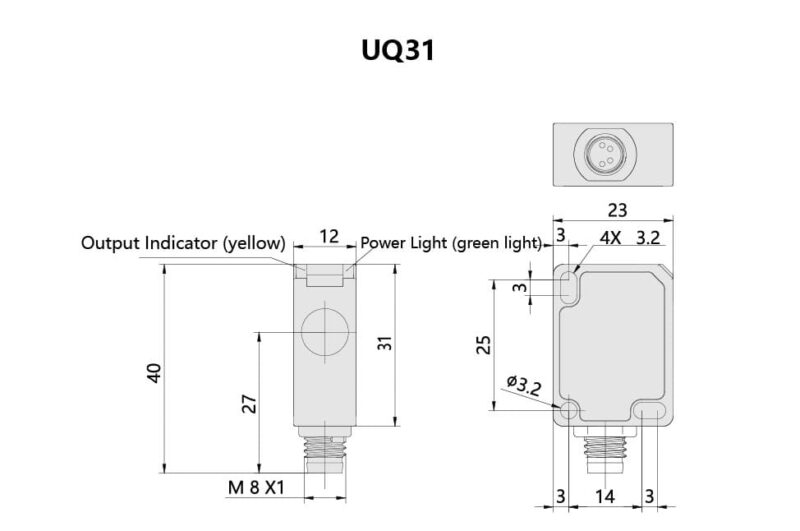

Size Chart:

Bedook Ultrasonic Distance Sensor Cube Switch Output – UQ31-Size

The Bedook UQ31 is a cube-shaped ultrasonic distance sensor that is ideal for a variety of applications, including automation, robotics, and machine control. The sensor features an adjustable sensing range of 30 to 100mm, a blind zone of 0 to 10mm, and a switching frequency of 10Hz. It is also IP65 rated for dust and water resistance, making it suitable for use in demanding environments.

The UQ31 is perfect for detecting objects and measuring distances in a variety of industrial applications. Its small size and compact design make it perfect for applications where space is limited. The sensor’s high accuracy and reliability make it an ideal choice for applications where precise measurements are required.
