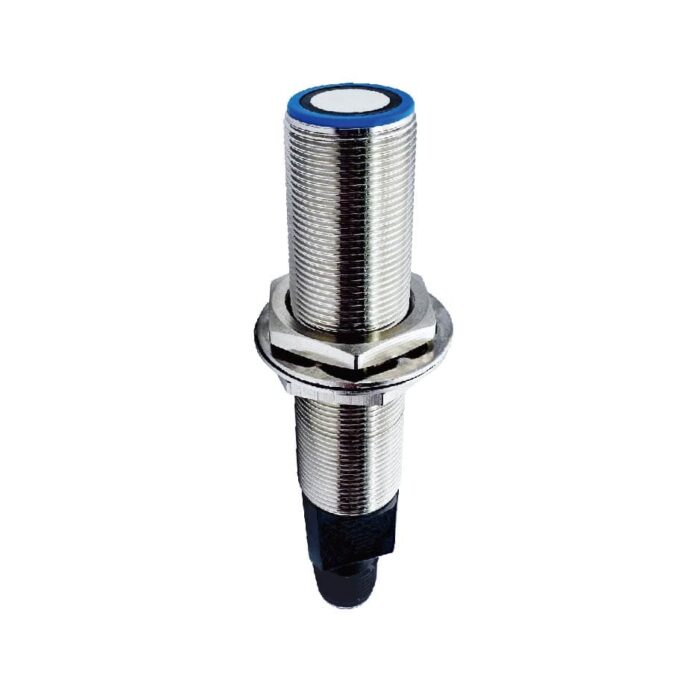

Bedook Ultrasonic Distance Sensor DC5 Analog Output – UM18
Ultrasonic Distance Sensor DC5 Analog Output – UM18, Appearance Structure: M18*1mm; Sensing Distance: 70 to 1000mm; Adjustment range: 90 to 1000mm; Blind zone: 0 to 70mm; Transducer frequency: 200K Hz ; Power-on delay: About 400ms; Operating voltage: 15 to 30V DC ripple 10%ss; Output type: 4-20mA and 0 to 10V; Characteristic curve deviation: Full scale value’s ±1% ; Repeatability: Full scale value’s ±0.1% ; Ambient temperature: -25 to 70℃; Ingress protection: IP65; connection method: M12 connector(5pins); Housing Material: Brass, nickel-plated
Description
Introducing the Ultrasonic Distance Sensor DC5 Analog Output – UM18, a high-precision sensor designed for accurate distance measurements in various industrial applications. This sensor features an M18 cylindrical housing and offers a sensing distance from 70mm to 1000mm, making it versatile and reliable.
Product Features:
Flexible Analog Outputs: The UM18 sensor provides dual analog outputs (4-20mA and 0-10V), catering to diverse measurement needs.
Reliable and Robust: Designed for demanding environments, the UM18 sensor features a durable construction and high measurement accuracy.
- Wide Sensing Range: The UM18 sensor can detect distances from 70mm to 1000mm, with an adjustable range of 90mm to 1000mm.
- Zero Blind Zone: With a blind zone of 0mm to 70mm, this sensor ensures accurate readings without dead spots.
- Dual Analog Outputs: Features 4-20mA and 0-10V outputs, providing flexible and precise measurement options.
- High Stability: Operating voltage of 15 to 30V DC with a ripple of 10%ss, and repeatability of full scale value’s ±0.1% for consistent performance.
- Durable Construction: The housing is made of brass and nickel-plated, providing robust protection with an IP65 ingress rating.
- Fast Response Time: Power-on delay is about 400ms, ensuring quick and efficient operation.
| Appearance |
|
||
| Model | 4-20mA/0-10V | UM18-T10I-C31S12-X | UM18-T10V2-C31S12-X |
| Appearance Structure | M18*1mm | ||
| Sensing Distance | 70…1000mm | ||
| Adjustment range | 90…1000mm | ||
| Blind zone | 0…70mm | ||
| Standard test substance | 100*100mm | ||
| Transducer frequency | 200K Hz | ||
| Power-on delay | About 400ms | ||
| Yellow LED | Constantly bright:the object is within the detection range, flicker:target detected in Teach-in state |
||
| Red LED | Constantly bright:error; flicker:no target detected in Teach-in state |
||
| Operating voltage | 15…30V DC ripple 10%ss | ||
| No load current | ≤50mA | ||
| Synchronize | One synchronous input,two-way; 0-level:-v…+1v;1-level:+4v…+; input impedance:>12kΩ; synchronization pulse:≥100us,synchronization pulse period:≥2ms |
||
| General operating mode | ≤40Hz | ||
| Multiple modes of operation | ≤30Hz/n,n=the NO. of proximity switches | ||
| Input type | Onee Teach-in input Lower limit of measurement range A1:-v…+1v; Upper limit of measurement range A2:+4v…+v; input impedance:>4.7kΩ;Teach-inpulse:≥2ms |
||
| Output type | 1 analog output 4-20mA | 1 analog output 0…10V | |
| Resolution | 0.35mm | ||
| Characteristic curve deviation | Full scale value’s ±1% | ||
| Repeatability | Full scale value’s ±0.1% | ||
| Load impedance | ≤500Ω | ≤1000Ω | |
| Temperature drift | Full scale value’s ±1.5% | ||
| Ambient temperature | -25…70℃(248…343K) | ||
| Storage temperature | -40…85℃(233…358K) | ||
| Ingress protection | IP65 | ||
| connection method | M12 connector(5pins) | ||
| Housing Material | Brass, nickel-plated | ||

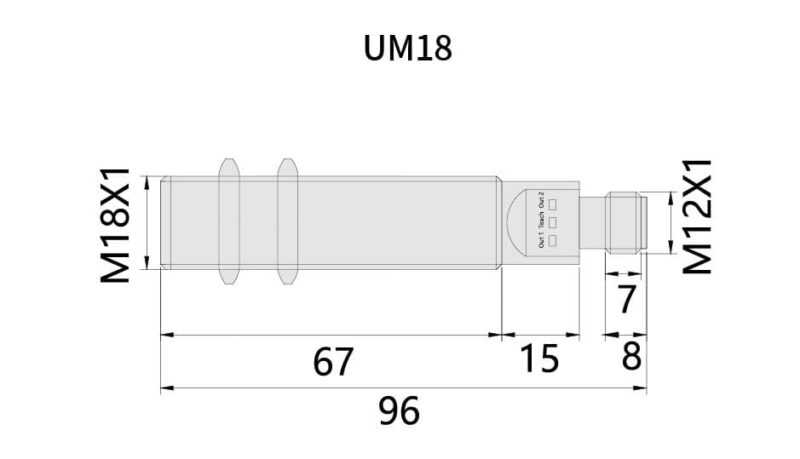

Size Chart:
Bedook Ultrasonic Distance Sensor DC5 Analog Output – UM18-Size
The Ultrasonic Distance Sensor DC5 Analog Output – UM18 has passed multiple international certifications such as CE, UKCA, and ROHS, ensuring compliance with global standards. This makes it an excellent choice for high-precision measurement scenarios.
