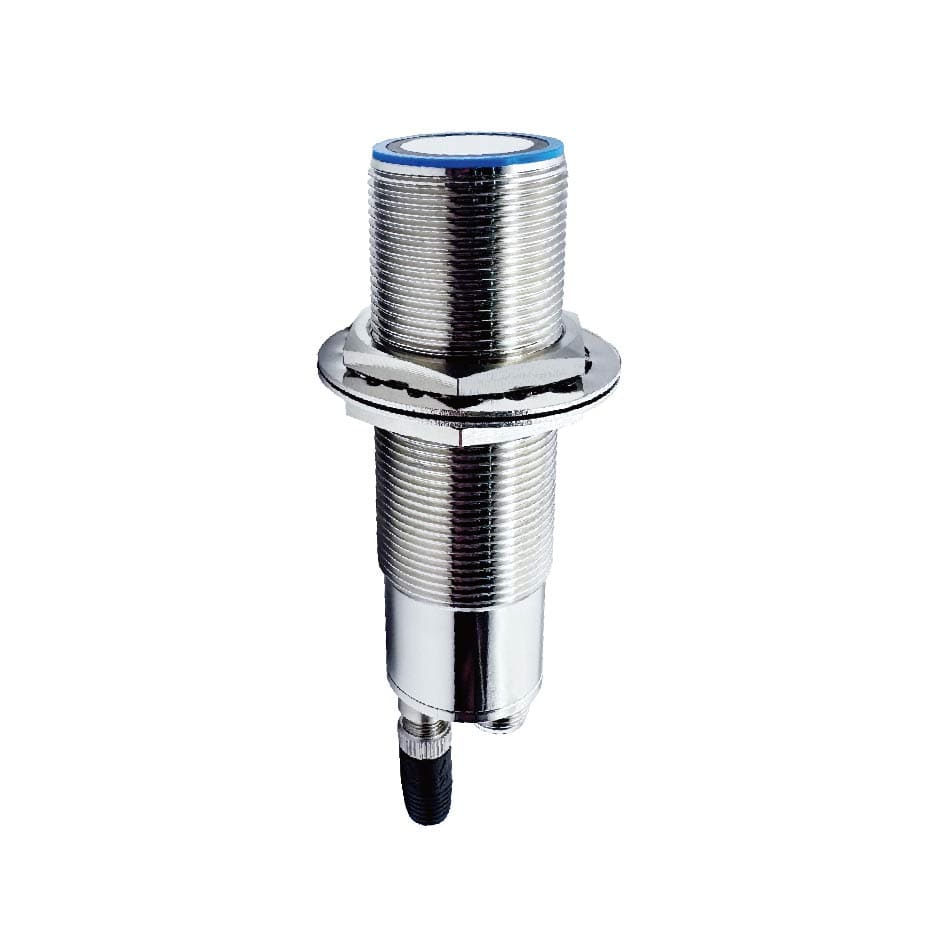

Bedook Ultrasonic Distance Sensor DC5 Analog Output – UM30

Introducing the Ultrasonic Distance Sensor DC5 Analog Output – UM30, a high-precision sensor designed for accurate distance measurements in various industrial applications. This sensor features an M30 cylindrical housing and offers a sensing distance from 300 to 2000mm, 1 current output 4-20mA and 1voltage output0 to 10V; making it versatile and reliable.

Product Features:

Flexible Analog Outputs: The UM30 sensor provides dual analog outputs (4-20mA and 0-10V), catering to diverse measurement needs.
Reliable and Robust: Designed for demanding environments, the UM30 sensor features a durable construction and high measurement accuracy.

• Wide Sensing Range: The UM30 sensor can detect distances from 300 to 2000mm, with an adjustable range of 340 to 2000mm.
• Zero Blind Zone: With a blind zone of 0 to 300mm, this sensor ensures accurate readings without dead spots.
• Dual Analog Outputs: Features 4-20mA and 0-10V outputs, providing flexible and precise measurement options.
• High Stability: Operating voltage of 15 to 30V DC with a ripple of 10%ss, and repeatability of full scale value’s ≤0.1% for consistent performance.
• Durable Construction: The housing is made of brass and nickel-plated, providing robust protection with an IP65 ingress rating.
• Fast Response Time: Power-on delay is about 440ms, ensuring quick and efficient operation.

Appearance
Model	4-20mA/0-10V	UM30-T20M-C31S12-X
Appearance Structure		M30*1.5mm
Sensing Distance		300…2000mm
Adjustment range		340…2000mm
Blind zone		0…300mm
Standard test substance		100*100mm
Transducer frequency		112K Hz
Power-on delay		About 440ms
Greed LED		Constantly bright:power on, flicker:standby mode or setting state
Yellow LED1		Constantly bright:Target in the detection range;flicker:setting function
Yellow LED2		Constantly bright:Target in the detection range;flicker:setting function
Red LED		Constantly bright:temperature/setting plug not connected; flicker:no target detected in error or setting state
Operating voltage		15…30V DC ripple 10%ss
Power consumption		≤900mW
Synchronize		two-way;0-level:-…+1v;1-level:+4v…+; input impedance:>12kΩ; synchronization pulse:≥100us,synchronization pulse period:≥2ms
General operating mode		≤13Hz
Multiple modes of operation		≤13Hz/n,n=the NO. of proximity switches,n≤5
Output type		1 current output 4-20mA; 1voltage output0…10V
Characteristic curve deviation		≤0.2% of Full scale value
Repeatability		≤0.1% of Full scale value
Load impedance		current output: ≤500Ω; voltage output: ≥1000Ω
Temperature drift		≤2% of Full scale value’s ±1.5%(with temperature compensation) ≤0.2%/K(without temperature compensation)
Standard		IEC/EN 60947-5-2
Ambient temperature		-25…70℃(248…343K)
Storage temperature		-40…85℃(233…358K)
Ingress protection		IP65
connection method		M12 connector(5pins)
Housing Material		Brass, nickel-plated

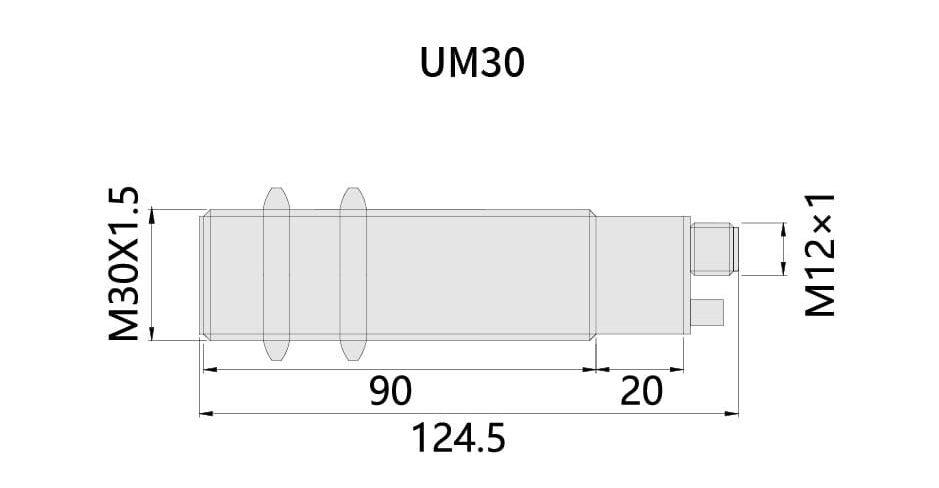

Size Chart:

Bedook Ultrasonic Distance Sensor DC5 Analog Output – UM30-Size

The Ultrasonic Distance Sensor DC5 Analog Output – UM30 has passed multiple international certifications such as CE, UKCA, and ROHS, ensuring compliance with global standards. This makes it an excellent choice for high-precision measurement scenarios.
