Bedook Ultrasonic distance sensor DC5 switch output – UM18

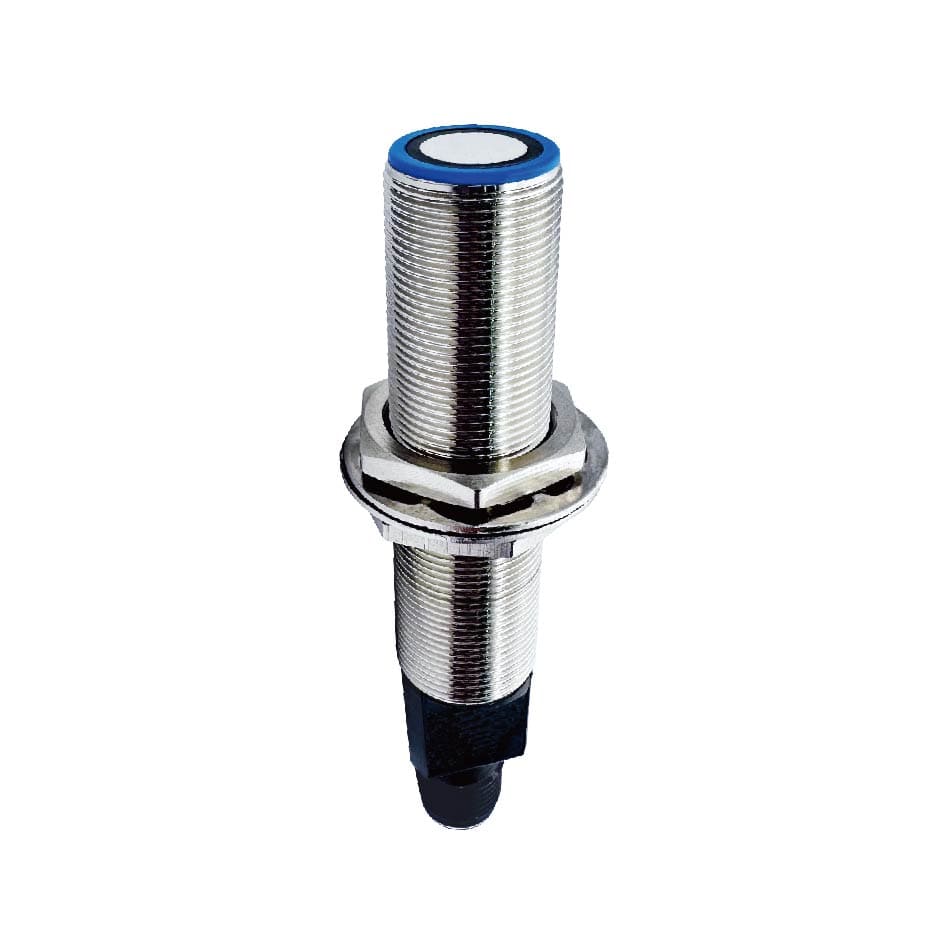

Ultrasonic Distance Sensor DC5 Switch Output – UM18
Appearance Structure: M18*1mm. Sensing Distance: 70mm to 1000mm. Adjustment range: 90mm to 1000mm. Blind zone: 0mm to 70mm. Power-on delay: ≤400ms. Operating voltage: 10 to 30V DC, ripple 10%ss. Repeatability: ≤1%. Switching frequency: Max:3Hz. Ambient temperature: -25 to 70℃. connection method: M12 connector. Ingress protection: IP65. Housing Material: Brass, nickel-plated.
Description
Meet the Ultrasonic Distance Sensor DC5 Switch Output – UM18, a top-tier sensor engineered for precise distance measurements in diverse industrial settings. Housed in an M18 cylindrical body, this sensor offers a sensing range of 70mm to 1000mm, ensuring flexibility and reliability in various applications.
Product Features:
High-precision Ultrasonic Distance Sensor DC5 Switch Output – UM18 with simple M12 connection, perfect for accurate measurements. Certified and dependable.
- Wide Sensing Range: Capable of detecting distances from 70mm to 1000mm, with an adjustable range of 90mm to 1000mm.
- Zero Blind Zone: Features a blind zone of 0mm to 70mm, ensuring accurate readings without any dead spots.
- Quick Response: With a power-on delay of ≤400ms, the sensor guarantees swift and efficient operation.
- High Stability: Operating voltage of 10 to 30V DC with a ripple of 10%ss, and repeatability of ≤1% for consistent performance.
- Durable Construction: Built with a brass, nickel-plated housing, offering robust protection and an IP65 ingress rating.
- Versatile Output Options: Available in both PNP and NPN types, featuring NO+NC dual switch output, and a simple DC5 Line connection for enhanced stability.
| Appearance |  |
|
| Model | NPN NO+NC | UM18-T10N-C31S12-X |
| PNP NO+NC | UM18-T10P-C31S12-X | |
| Appearance Structure | M18*1mm | |
| Sensing Distance | 70…1000mm | |
| Adjustment range | 90…1000mm | |
| Blind zone | 0…70mm | |
| Standard test substance | 100*100mm | |
| Transducer frequency | 200K | |
| Power-on delay | ≤400ms | |
| Yellow LED | Constantly bright:indicates the switch status, flicker:the target object is detected | |
| Red LED | Constantly bright:error or protection, flicker:no detection or no object detected | |
| Operating voltage | 10…30V DC ripple 10%ss | |
| No load current | ≤50mA | |
| Output type | Switch output NPN/PNP, NO+NC | |
| Short Circuit/overload protection | Yes | |
| Voltage drop | ≤3V | |
| Repeatability | ≤1% | |
| Switching frequency | Max:3Hz | |
| Range lag | 1% of the set operating distance | |
| Ambient temperature | -25…70℃ | |
| Storage temperature | -40…85℃ | |
| connection method | M12 connector | |
| Ingress protection | IP65 | |
| Housing Material | Brass, nickel-plated | |

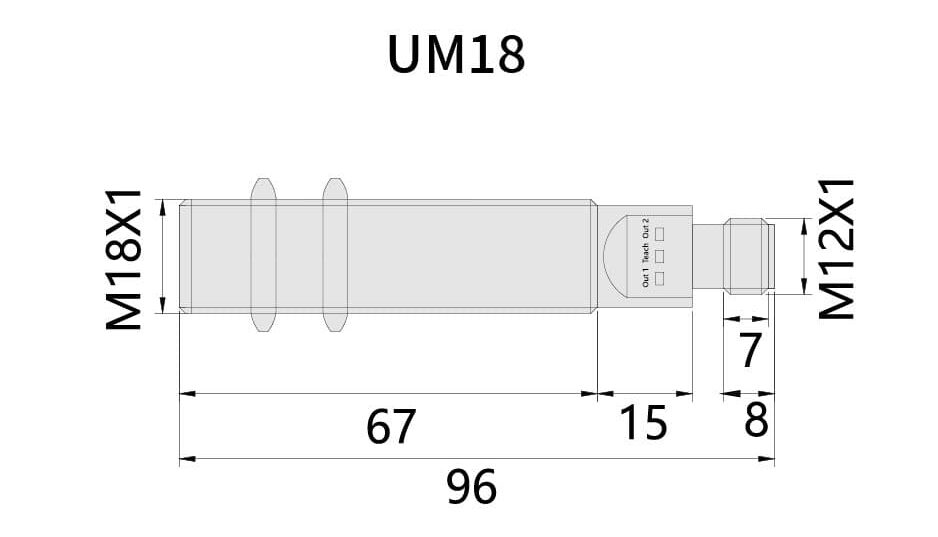

Size Chart:
Bedook Ultrasonic distance sensor DC5 switch output – UM18-Size
High-Precision Ultrasonic Sensor:
Ultrasonic Distance Sensor DC5 Switch Output – UM18 provides reliable distance measurements from 70mm to 1000mm, ideal for precision applications.
