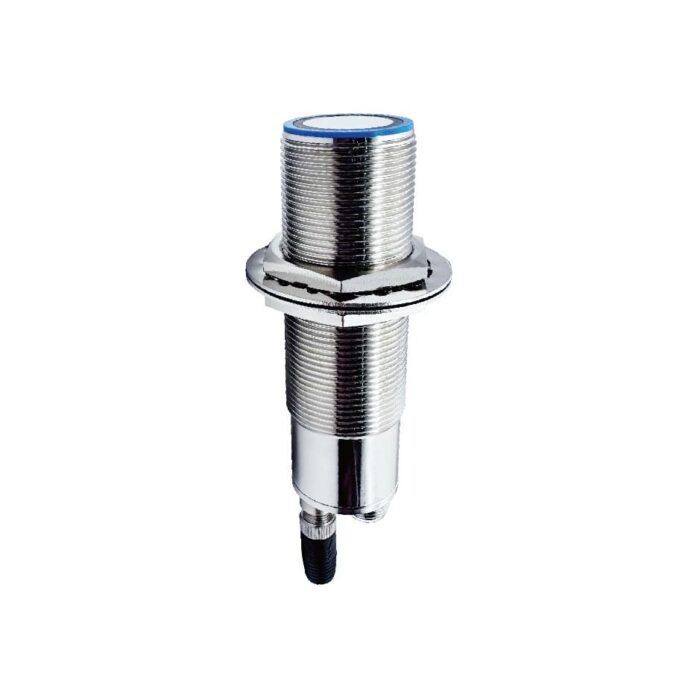

Bedook Ultrasonic distance sensor DC5 switch output – UM30

Meet the Ultrasonic Distance Sensor DC5 Switch Output – UM30 has earned multiple international certifications, including CE, UKCA, and ROHS, ensuring it meets global standards. This makes it an ideal choice for high-precision measurement scenarios.

Product Features:

High-precision Ultrasonic Distance Sensor DC5 Switch Output – UM30 with simple M12 connection, perfect for accurate measurements. Certified and dependable.

• Wide Sensing Range: Capable of detecting distances from 150mm to 2000mm, with an adjustable range of 20mm to 2000mm.
• Zero Blind Zone: Features a blind zone of 0mm to 150mm, ensuring accurate readings without any dead spots.
• Quick Response: With a power-on delay of ≤200ms, the sensor guarantees swift and efficient operation.
• High Stability: Operating voltage of 10 to 30V DC with a ripple of 10%ss, and repeatability of ≤1% for consistent performance.
• Durable Construction: Built with a brass, nickel-plated housing, offering robust protection and an IP65 ingress rating.
• Versatile Output Options: Available in both PNP and NPN types, featuring NO+NC dual switch output, and a simple DC5 Line connection for enhanced stability.

Appearance
Model	NPN NO+NC	UM30-T20N-C31S12-X
	PNP NO+NC	UM30-T20P-C31S12-X
Appearance Structure		M30*1.5mm
Sensing Distance		150…2000mm
Adjustment range		20…2000mm
Blind zone		0…150mm
Standard test substance		100*100mm
Transducer frequency		112K Hz
Power-on delay		factory setting 200ms
Green LED		Constantly bright:power on, flicker:standby mode or setting state
Yellow LED 1		Constantly bright:switch status switch output 1, flicker:setting function
Yellow LED 2		Constantly bright:switch status switch output 2, flicker:setting function
Red LED		Constantly bright:temperature/setting plug not connected flicker:no target detected or in error
Temperature/setting plug		temperature compensation,switch point setting, output function setting
Operating voltage		10…30V DC ripple 10%ss
No load current		≤50mA
Synchronize		two-way;0-level:-…+1v;1-level:+4v…+; input impedance:>12kΩ; synchronization pulse:≥100us,synchronization pulse period:≥2ms
General operating mode		≤30Hz
Multiple modes of operation		≤30Hz/n,n=the NO. of proximity switches,n≤5
Output type		2 Switch output NPN/PNP, NO+NC
Repeatability		≤1% full scale value
Rated operated current		200mA
Voltage drop		≤2.5V
Switching frequency		≤3Hz
Temperature drift		≤2% of full scale value(with temperatue compensation)
Standard		IEC/EN 60947-5-2
Ambient temperature		-25…70℃(248…343K)
Storage temperature		-40…85℃(233…358K)
Ingress protection		IP65
connection method		M12 connector
Housing Material		Brass, nickel-plated

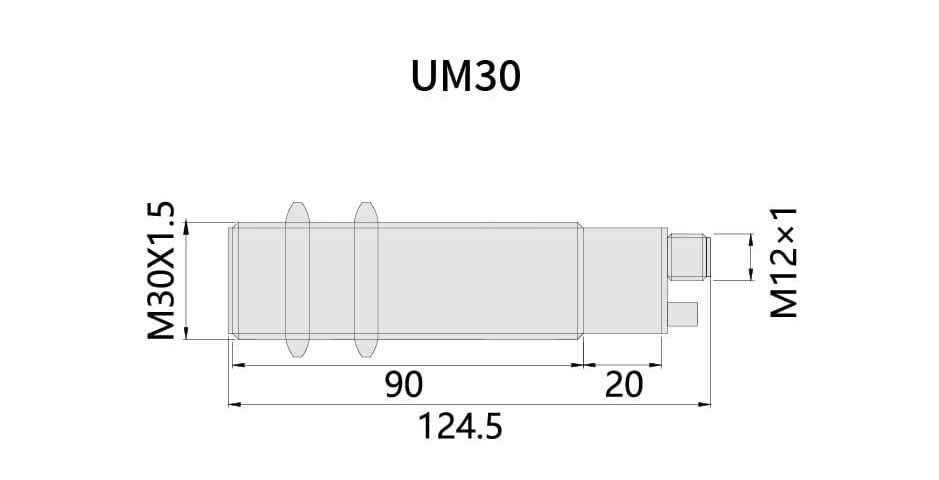

Size Chart:

Bedook Ultrasonic distance sensor DC5 switch output – UM30-Size

High-Precision Ultrasonic Sensor:

Ultrasonic Distance Sensor DC5 Switch Output – UM30 provides reliable distance measurements from 150mm to 2000mm, ideal for precision applications.
