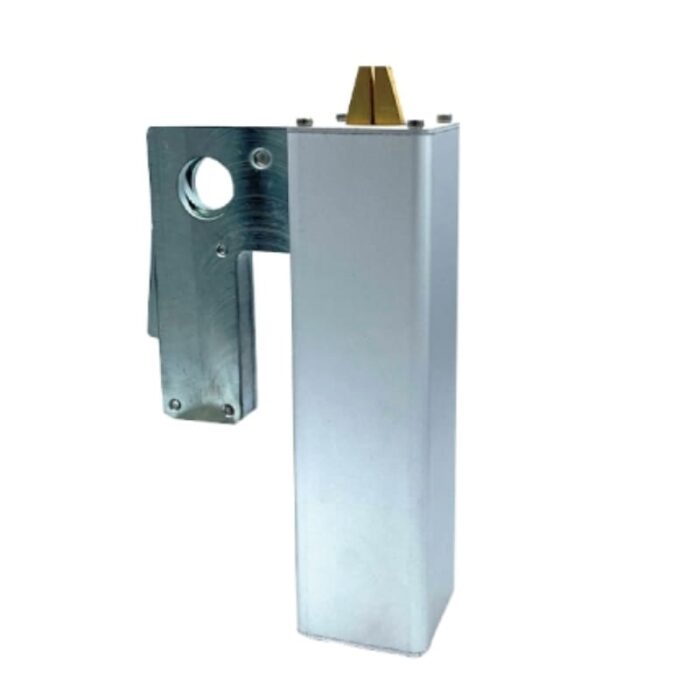

BEDOOK High-Speed Micro Solar Solder Ribbon Fusion Splicer

The BEDOOK Micro Solar Solder Ribbon Fusion Splicer is a revolutionary device in the solar energy industry, but its applications extend far beyond. In PV module manufacturing, it’s the go – to for seamless solder tape connections when reels are running low. Using high – current technology, it fuses ribbons perfectly, eliminating common soldering issues. Its advanced features and reliability make it a staple for PV professionals. Moreover, its capabilities open up new possibilities in other sectors.

Product Features (BEDOOK Micro Solar Solder Ribbon Fusion Splicer)

BEDOOK Micro Solar Solder Ribbon Fusion Splicer is a game-changer in the soldering world. Compact yet powerful, it offers precision and efficiency in solar soldering. But its potential is not limited to solar. Whether in large-scale production or on-site repairs in the PV field, it performs flawlessly. With its unique features, it has found applications in diverse areas, making it a versatile tool for various industries.

High-Current Fusion Technology

Boasting a maximum output current of 650A, this Solar Solder Ribbon Fusion Splicer can rapidly and effectively fuse solder ribbons. This high – current output ensures a robust and reliable connection, minimizing the risk of poor soldering and enhancing the quality of PV modules. Compared to many similar products with lower current capabilities, the BEDOOK splicer provides a more secure and durable weld. This technology also benefits other applications, such as in small – scale electronics and laboratory work.

High-Capacity Battery

The 5600mAh battery capacity enables continuous operation without frequent recharging. In large – scale PV production, where downtime for recharging can be costly, this feature is invaluable. It also supports its use in other applications where mobility and long – lasting power are required, like in on – site repairs or in laboratory experiments that may take extended periods.

Compact and Portable Design

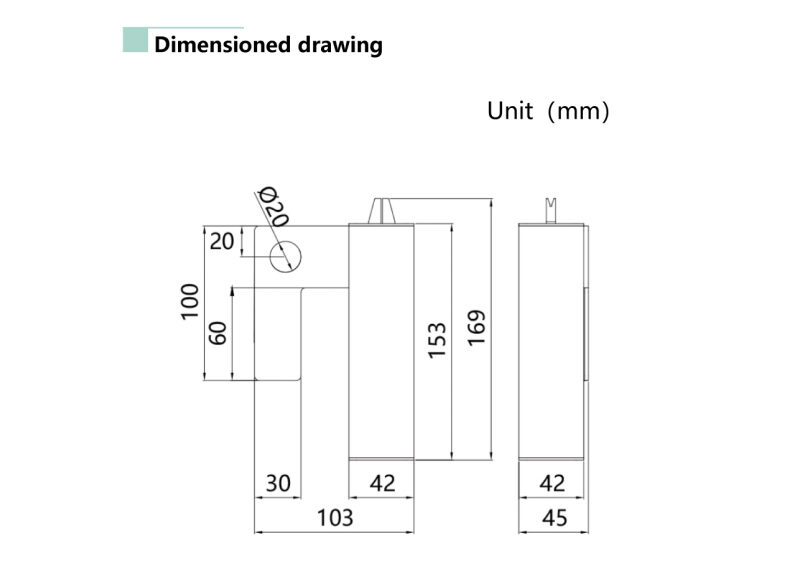

True to its “micro” name, the splicer is compact, with dimensions of 100mm in height, 30mm in width at the narrowest part, and 45mm at the widest part. Its lightweight and portable nature make it easy to carry around in a production facility, to on – site PV repair jobs, and even to a laboratory bench. This portability is a significant advantage over bulkier traditional soldering equipment, especially when working in tight spaces such as inside small electronic devices.

Type-C Charging Port

Equipped with a Type-C charging port, the device offers fast and convenient charging with parameters of 5V/2A. Type – C is a widely – adopted and efficient charging standard, making it easy for users to find compatible chargers. Whether in a PV manufacturing plant, a repair shop, or a laboratory, the ease of charging ensures the device is always ready for use.

User-Friendly Operation

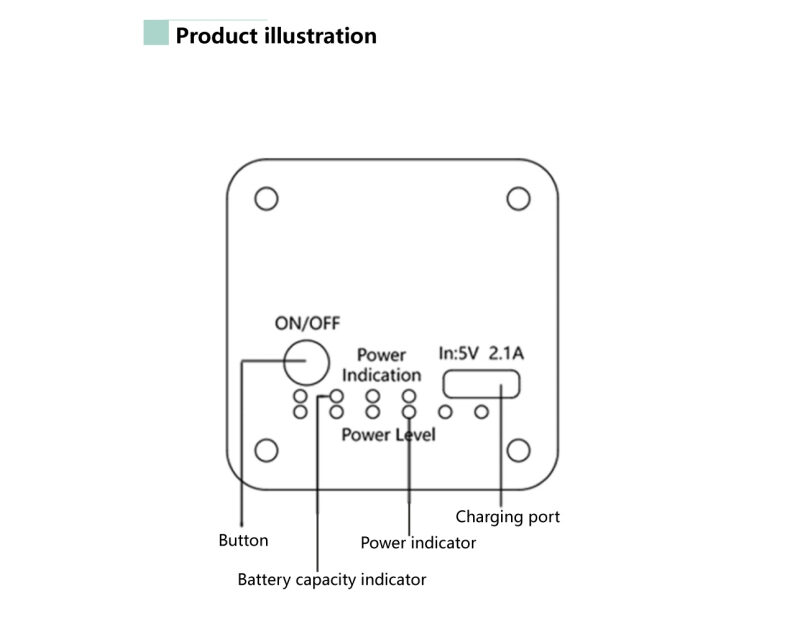

The operation of the splicer is intuitive. Pressing the button for 3 seconds starts or shuts down the device, and short – time pressing increases the welding power. The automatic shut – down function after 10 minutes of inactivity saves battery power. The welding process is accompanied by audible beeps for clear indication, making it accessible to both novice and experienced users, whether they are working on PV modules, small electronics, or laboratory samples.

Recommended Welding Band Compatibility

It is recommended for use with 0.2mm round or triangular welding bands, ensuring optimal welding performance. The design, which allows only trained personnel to change and replace the welding head, guarantees safety and proper operation. This level of precision and safety-conscious design is beneficial not only in PV but also in other applications where accurate and safe soldering is required.

Product Parameters (BEDOOK Micro Solar Solder Ribbon Fusion Splicer)

Appearance
Model No.	HJQ023XN-01P
Battery capacity	5600mAH
Output voltage	4.2V (Max)
Output current	650A(Max)
Charing port	Type-C
Charging parameter	5V12A
Recommended welding band	0.2mm round welding band or triangular welding band (only trained personnel can change and replace the welding head)

Product Applications (BEDOOK Micro Solar Solder Ribbon Fusion Splicer)

In PV Module Manufacturing and Maintenance

In large-scale PV module manufacturing plants, the BEDOOK Micro Solar Solder Ribbon Fusion Splicer can significantly boost production efficiency. When solder tapes need to be replaced during production, its high-current fusion technology and long-lasting battery enable seamless transitions, reducing downtime and increasing production throughput. For on-site PV system maintenance and repair, its portability and user-friendly operation allow technicians to quickly and accurately repair or connect solder ribbons, ensuring the normal operation of the PV system.

In Small – scale Electronics

In the realm of small-scale electronics, such as high-end watches and miniature sensors, the device can be a valuable asset. The fine metal wires used in these devices often have diameters similar to the 0.2mm recommended welding bands. The high-current, short-time fusion method of the splicer can be used to quickly and precisely connect these wires. Its compact size allows for easy operation within the confined spaces of small electronic devices, providing a reliable electrical connection without the need for complex and bulky soldering equipment.

In Laboratory Research and Development

In materials science, electronics engineering, and other related laboratories, researchers frequently need to connect various new metal materials or extremely fine metal samples. The adjustable current output and compact design of the BEDOOK splicer meet the research requirements for connecting different materials and metal samples of various specifications. It serves as a convenient and flexible tool for scientists and researchers to conduct experiments and develop new materials or electronic components, facilitating progress in these fields.

The BEDOOK Micro Solar Solder Ribbon Fusion Splicer is a versatile tool for multiple industries. In the solar energy sector, it excels in PV module soldering, ensuring high-quality connections. But its applications don’t stop there. It can be used in small-scale electronics to connect fine wires and in laboratory research for material connection experiments. With its high-current fusion, large-capacity battery, and compact design, it’s a reliable choice for professionals seeking efficiency and precision, whether in PV production, electronics manufacturing, or scientific research.

This Micro Solar Solder Ribbon Fusion Splicer by BEDOOK is a blend of advanced technology and user-friendly features. Its 650A high-current output ensures strong connections in solar soldering, while the 5600mAh battery offers long-term operation. Its compactness and Type-C charging add to its convenience. Beyond PV, it’s useful in small-scale electronics for wire connections and in laboratories for research. For those in search of a multi-functional soldering tool that combines performance, portability, and versatility, the BEDOOK splicer is an excellent investment.
